Keyless Entry

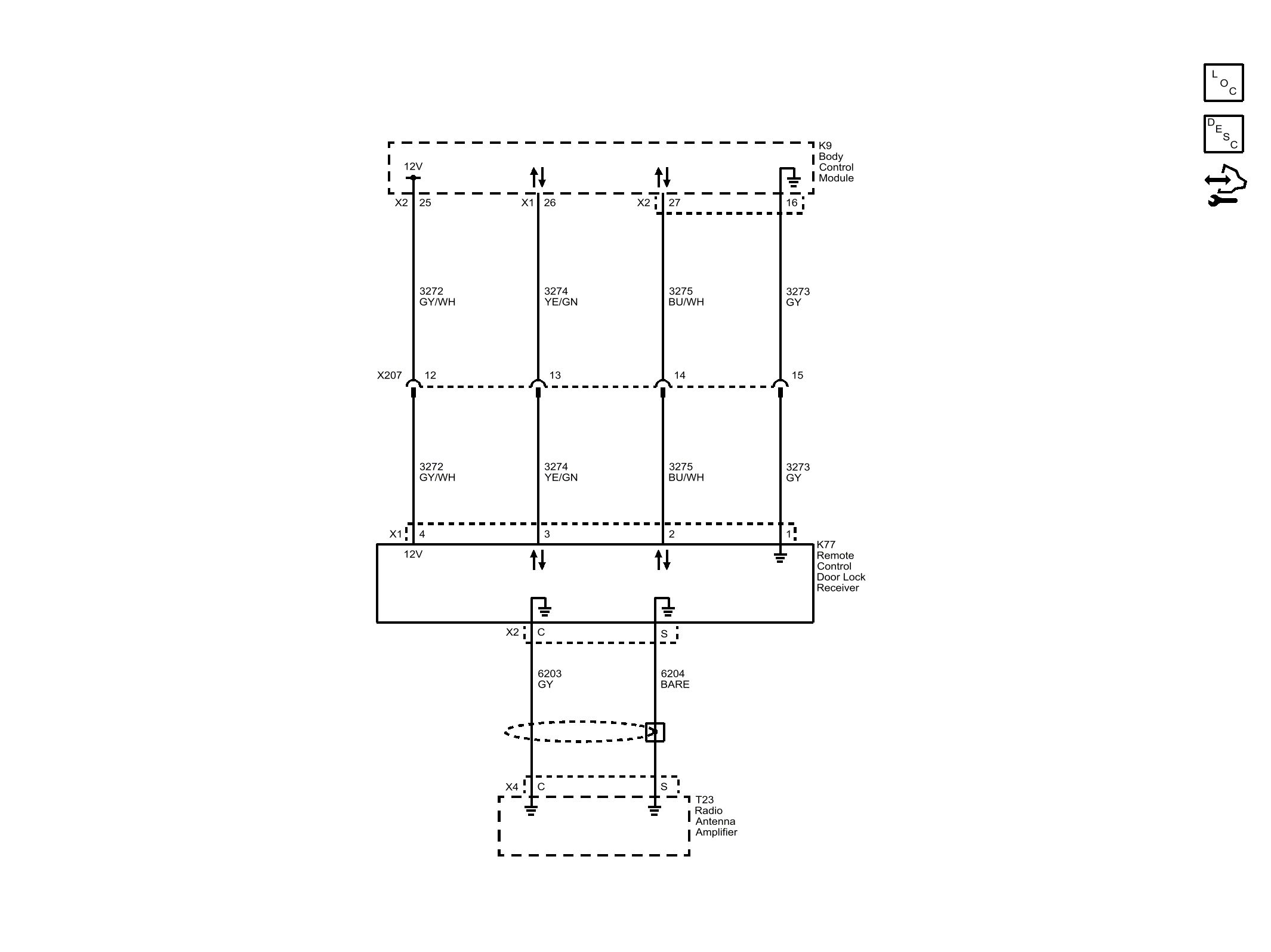

Fig 1: Keyless Entry
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
