Installation Procedure

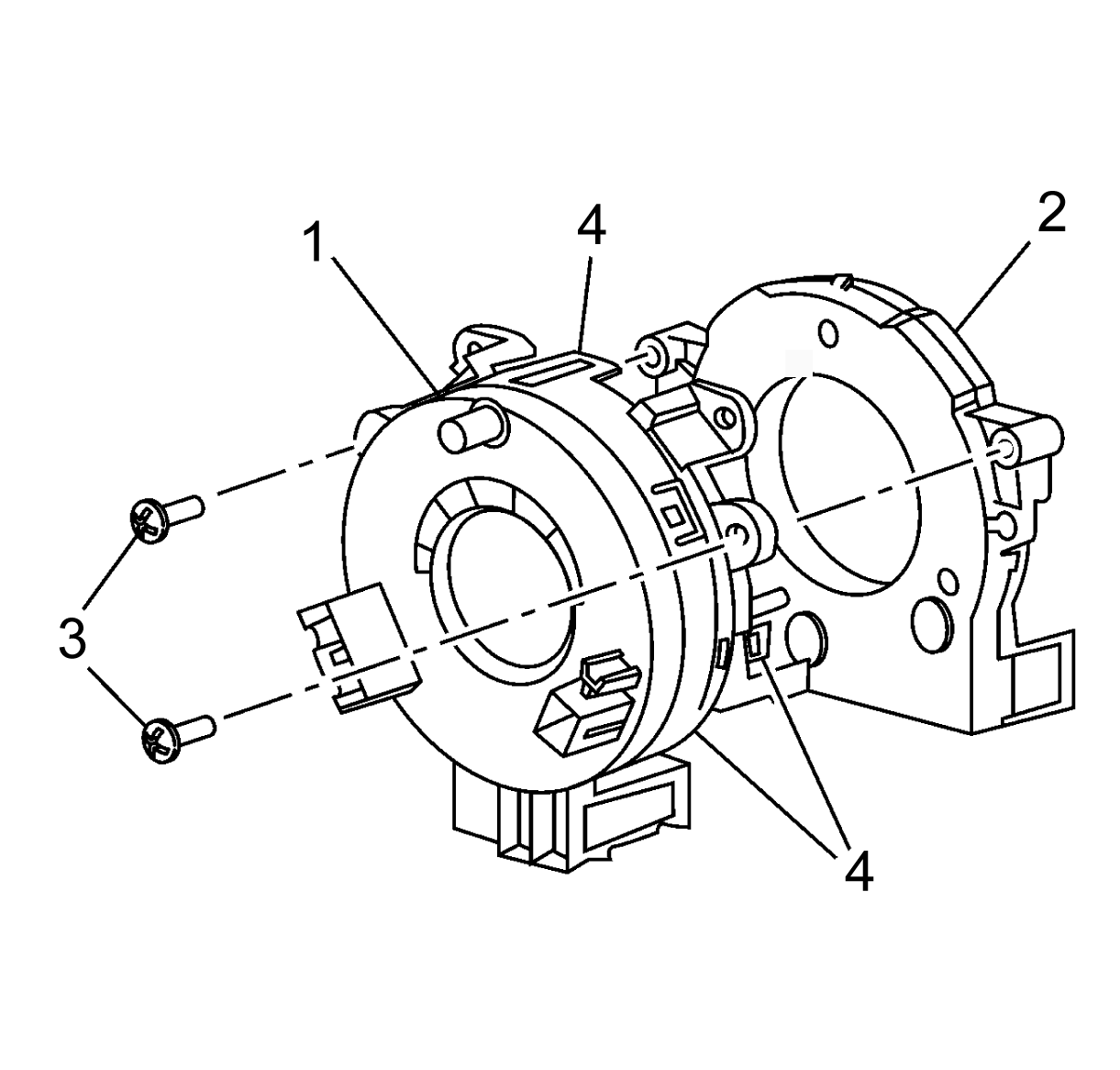

GM3943561Courtesy of
  1. Attach the NEW steering angle sensor (2) to the coil (1).
  2. Engage the steering wheel airbag coil retainers (4).
    CAUTION:

    Refer to Fastener Caution .

  3. Install the steering angle sensor screws (3).
  4. Steering Wheel Airbag Coil Replacement
  5. Steering Wheel Angle Sensor Centering
