Installation Procedure

  1. Starter (2)» Install

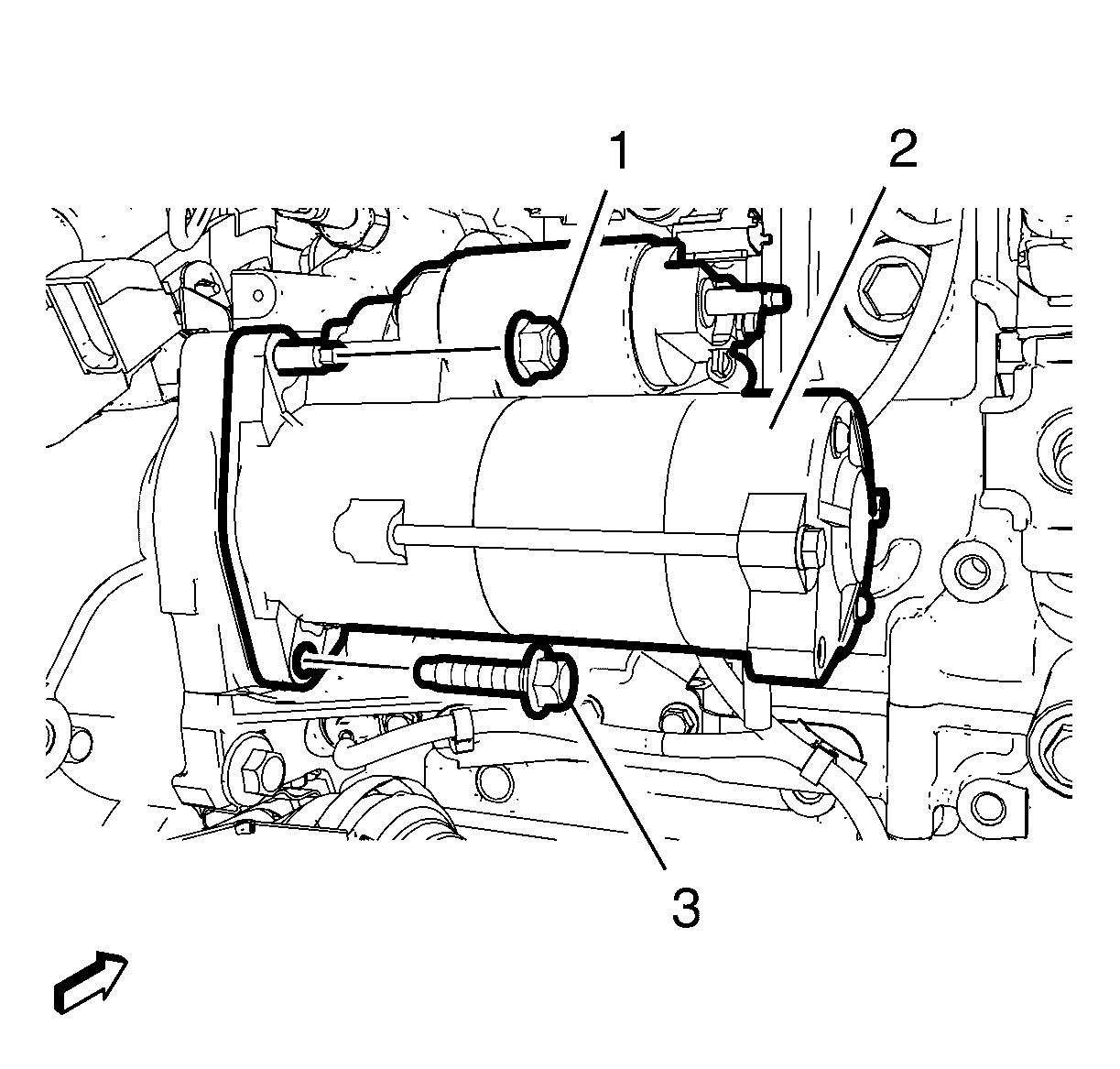

    Fig 1: Starter With Nut And Bolt
    GM3684401Courtesy of GENERAL MOTORS COMPANY
  2. Starter Nut (1)» Install and tighten 58 N.m (43 lb ft).
    CAUTION: Fastener Caution
  3. Starter Bolt (3)» Install and tighten 58 N.m (43 lb ft).
  4. Starter Bracket (1)» Install

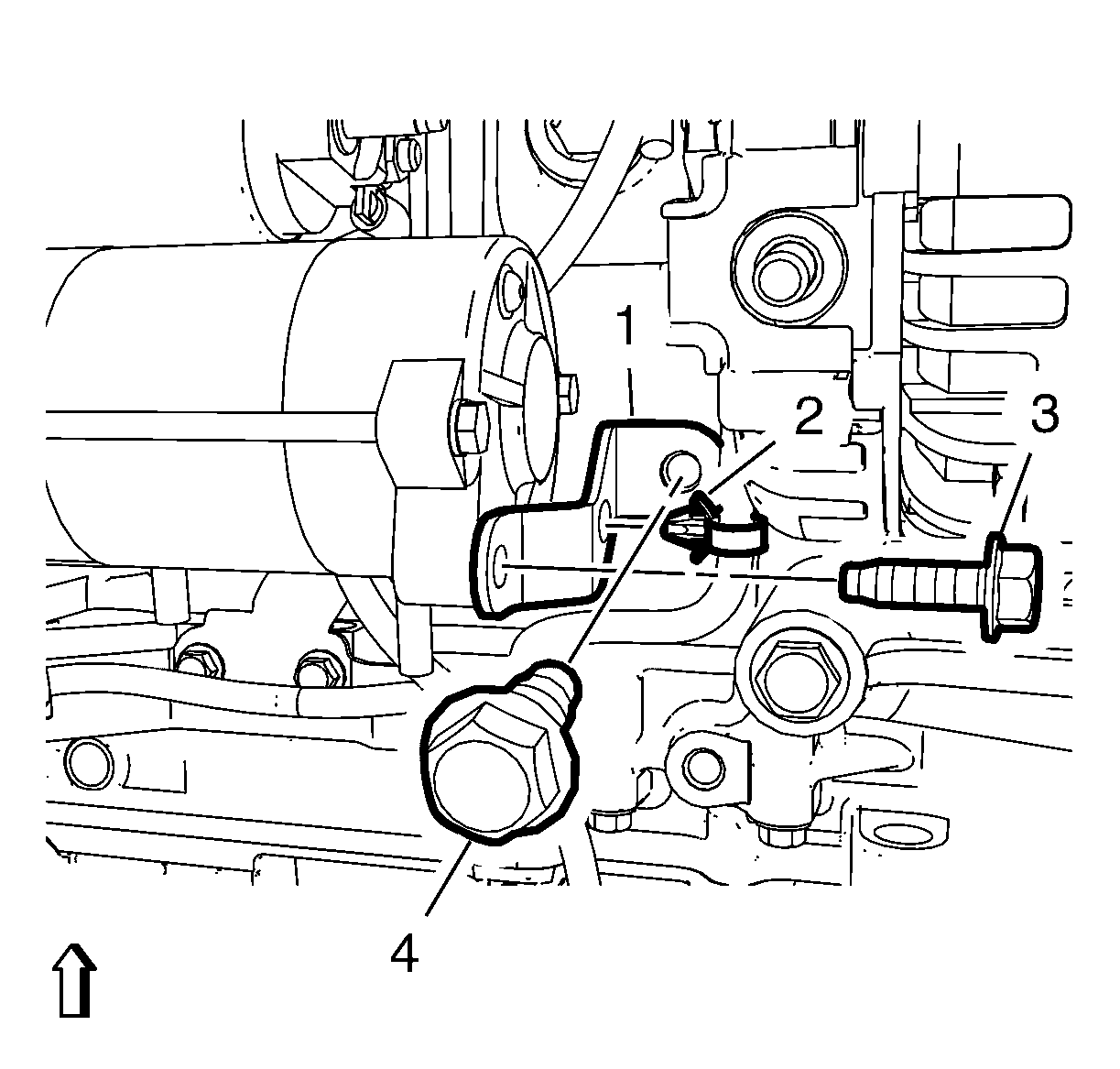

    Fig 2: Wiring Harness Retainer, Starter Bracket and Bolts
    GM3684400Courtesy of GENERAL MOTORS COMPANY
  5. Install the starter bracket bolt (3) and tighten to 22 N.m (16 lb ft).
  6. Install the starter bracket bolt (4) and tighten to 58 N.m (43 lb ft).
  7. Wiring Harness Retainer (2)» Install
  8. Starter Ground Cable (5)» Install

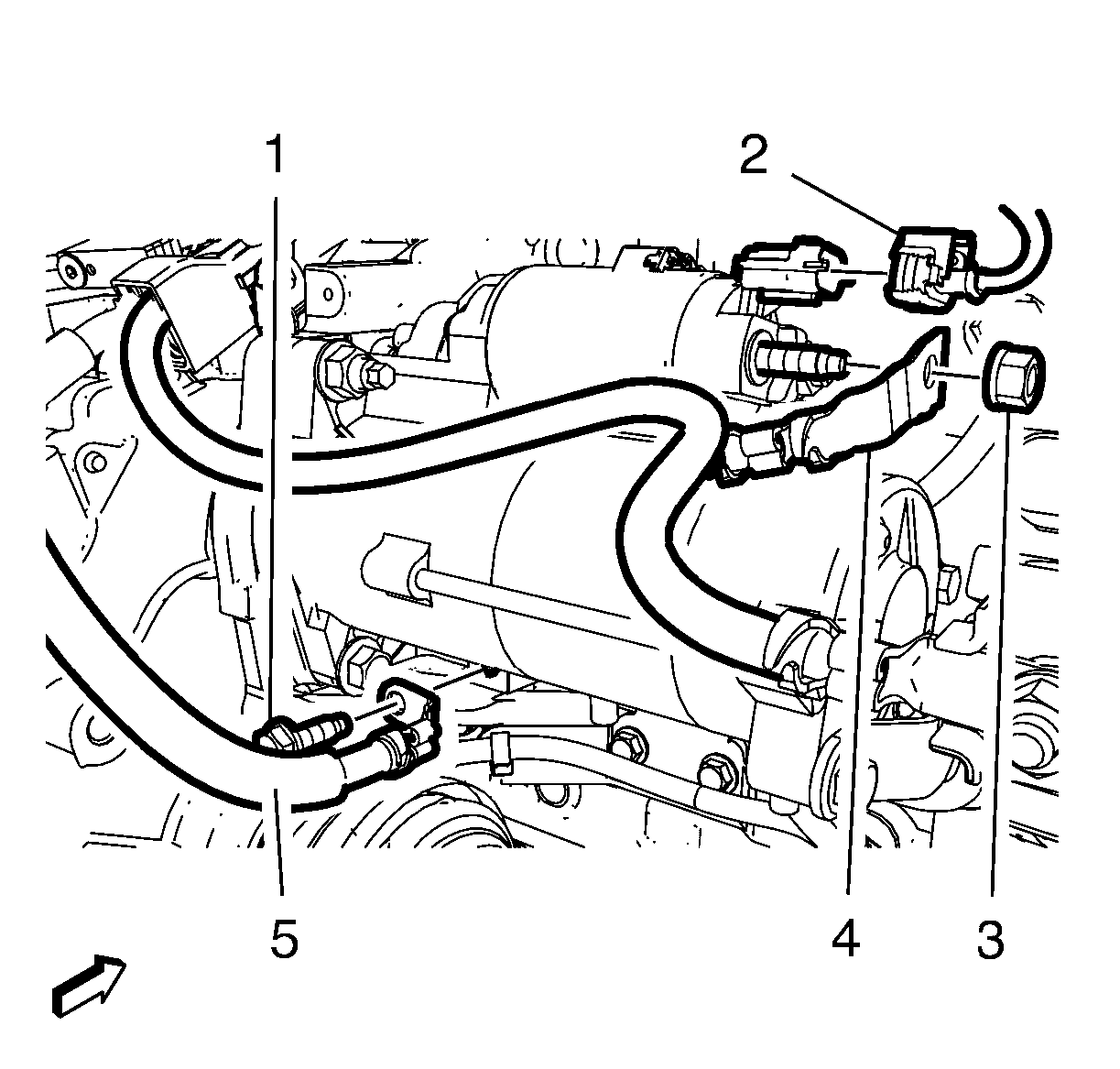

    Fig 3: Starter Wiring Harness Plug, Generator And Starter Cable Start Lead Nut With Starter Ground Cable And Bolt
    GM3684399Courtesy of GENERAL MOTORS COMPANY
  9. Install the starter ground cable bolt (1) and tighten to 22 N.m (16 lb ft).
  10. Generator and Starter Cable (4)» Install
  11. Install the generator and starter cable start lead nut (3) and tighten to 12.5 N.m (111 lb in).
  12. Connect the starter wiring harness plug (2).
  13. Exhaust Front Pipe» Install - Exhaust Front Pipe Replacement
  14. Lower the vehicle.
  15. Battery Negative Cable» Connect - Battery Negative Cable Disconnection and Connection
