Forward Collision Alert Display Replacement

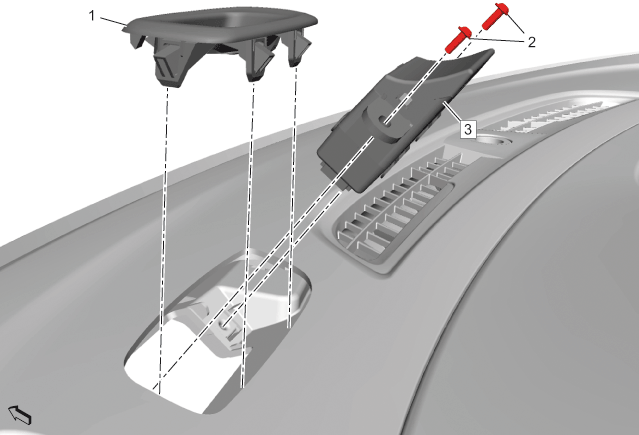

Fig 1: Forward Collision Alert Display

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Forward Collision Alert Display Bezel Procedure Use a flat bladed plastic tool to remove.
2	Forward Collision Alert Display Bolt [2x] CAUTION: Refer to Fastener Caution Tighten 2.5 N.m (22 lb in)
3	Forward Collision Alert Display Procedure Disconnect the electrical connector.
