Headlamp Control Module Replacement

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

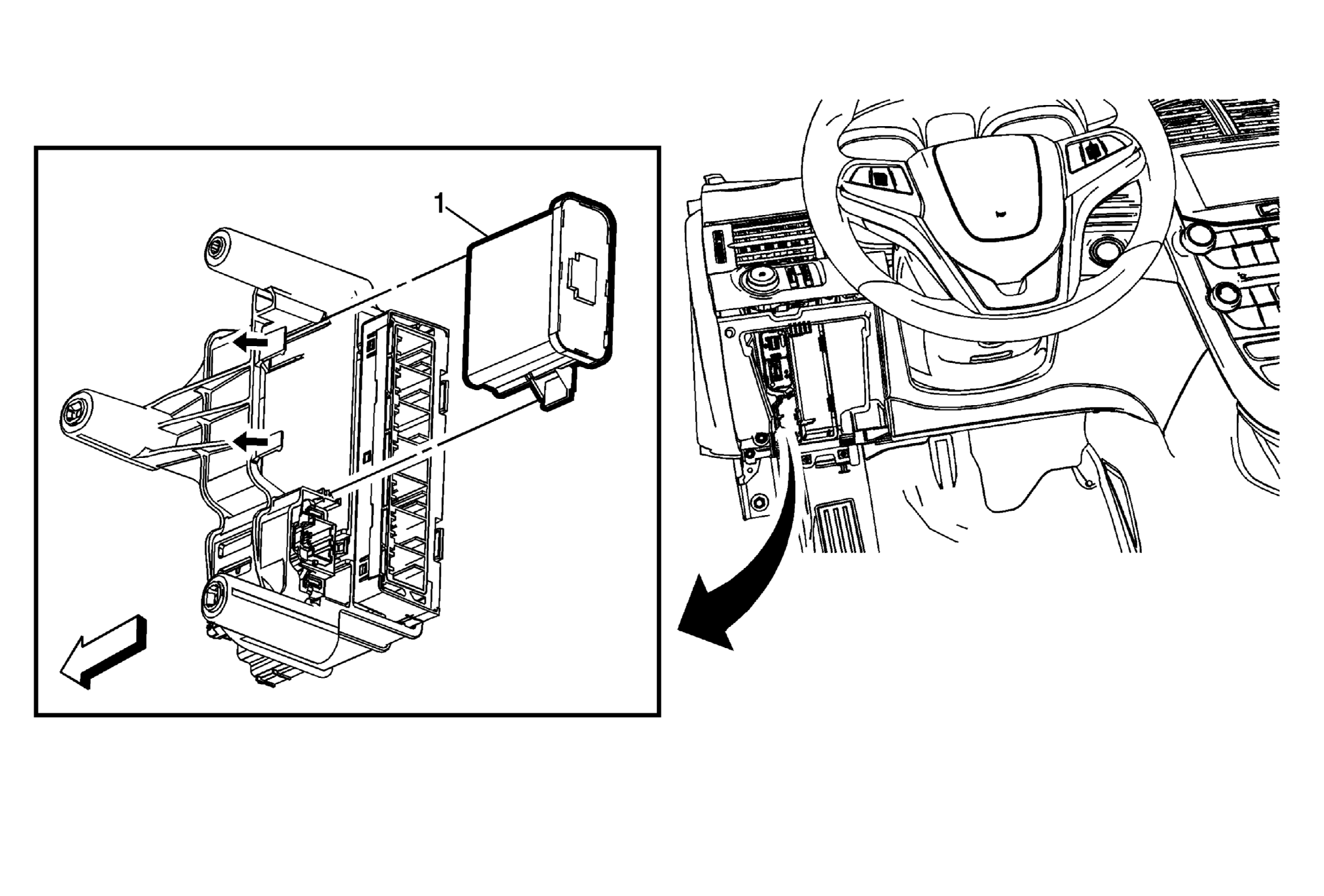

Fig 1: Headlamp Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel wiring harness junction block. Refer to Instrument Panel Wiring Harness Junction Block Replacement , move block to the side to gain access to the control module.
1	Headlamp Control Module Procedure Disconnect electrical connectors from the body control module. Disconnect the electrical connectors. Unsnap to release the module from the bracket. Refer to Control Module References for programming and set up procedures.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel wiring harness junction block. Refer to Instrument Panel Wiring Harness Junction Block Replacement , move block to the side to gain access to the control module.

Headlamp Control Module

Procedure

Disconnect electrical connectors from the body control module.
Disconnect the electrical connectors.
Unsnap to release the module from the bracket.
Refer to Control Module References for programming and set up procedures.
