Navigation Signal Splitter Replacement
WARNING: This page is about a different car, the 2015 GMC Savana 3500, 2015 GMC Savana 2500, 2015 Chevrolet Express 3500, and 2015 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

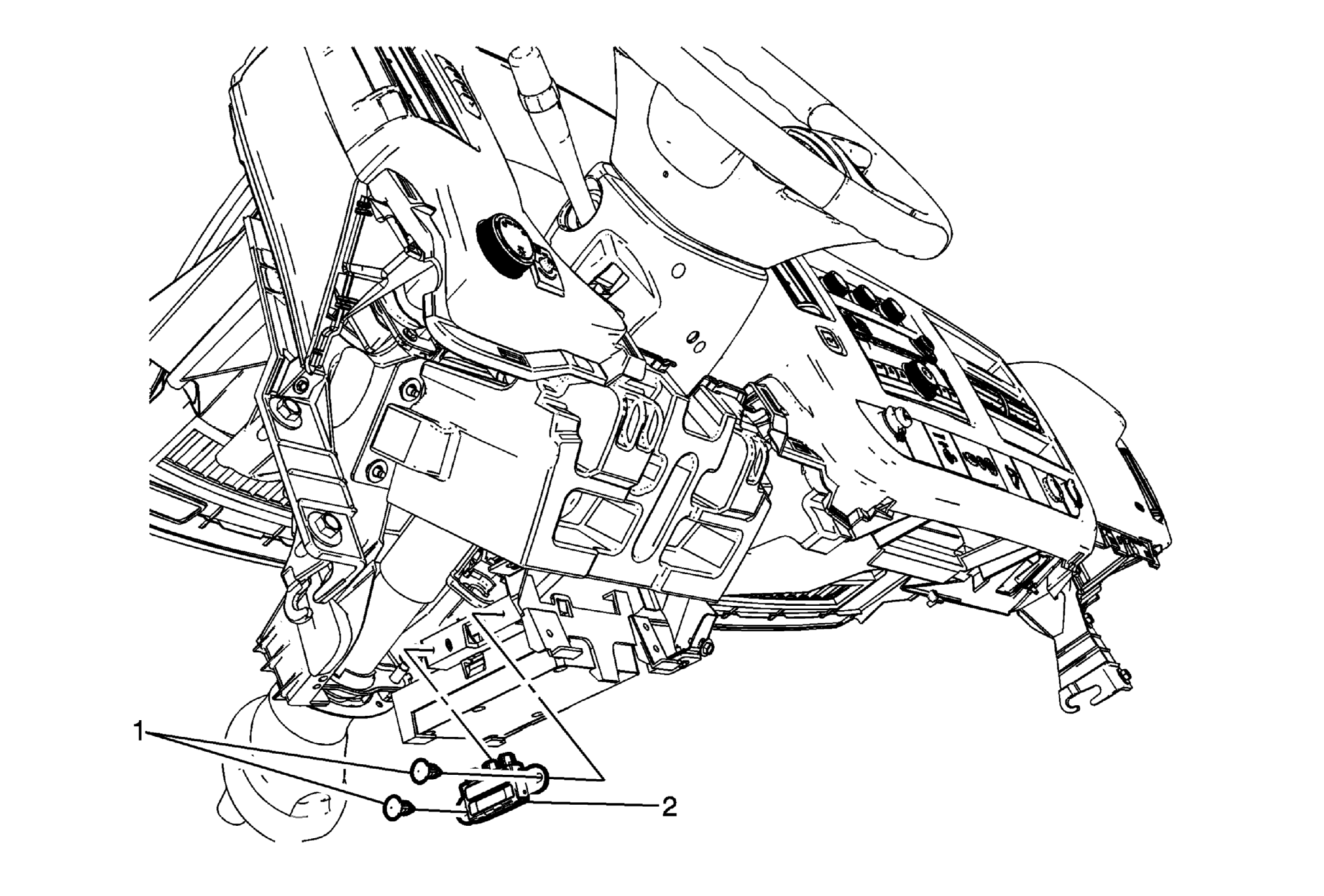

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the driver knee bolster. Refer to Driver Knee Bolster Replacement . |
|
| 1 | Navigation Signal Splitter Retainers (Qty: 2) |
| 2 | Navigation Signal Splitter Procedure Disconnect the electrical connections. |
