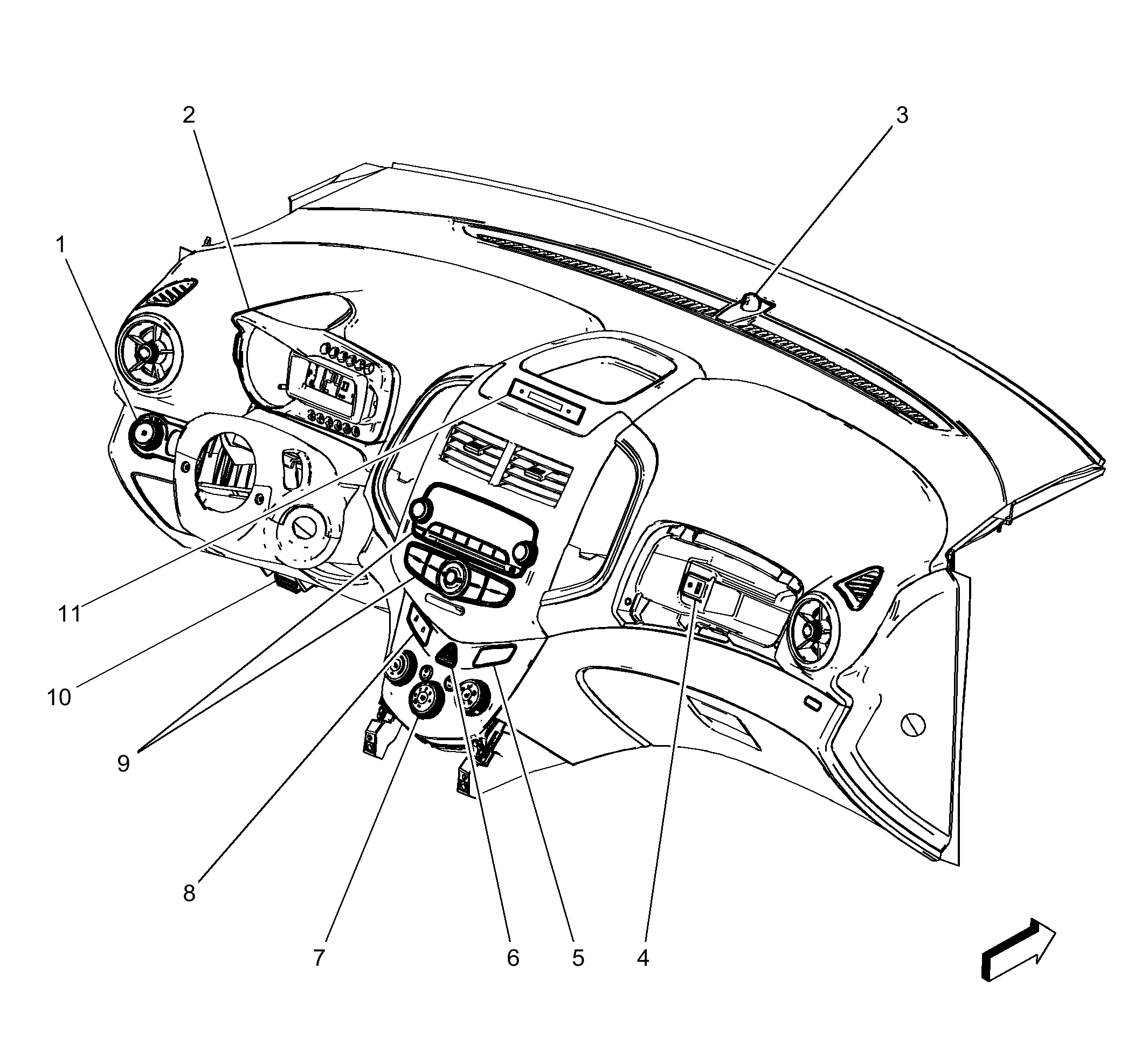

Front of Instrument Panel Components
Front of Instrument Panel Components
| Items |
|---|
| 1: S30 Headlamp Switch S30 Headlamp Switch |
| 2: P16 Instrument Cluster P16 Instrument Cluster |
| 3: B10 Ambient Light Sensor B10 Ambient Light Sensor |
| 4: X83 Auxiliary Audio Input (UH7) X83 Auxiliary Audio Input X1 |
| 5: P14 Passenger Air Bag Disabled Indicator P14 Passenger Air Bag Disabled Indicator |
| 6: S26 Hazard Warning Switch S26 Hazard Warning Switch |
| 7: K33 HVAC Control Module K33 HVAC Control Module X1K33 HVAC Control Module X2K33 HVAC Control Module X3 |
| 8: S13D Door Lock Switch - Driver S13D Door Lock Switch - Driver |
| 9: A11 Radio A11 Radio |
| 10: X84 Data Link Connector X84 Data Link Connector |
| 11: P43 Collision Alert Indicators (UFL and UEU) P43 Collision Alert Indicators |
