Outside Rearview Mirror Remote Control Switch Replacement

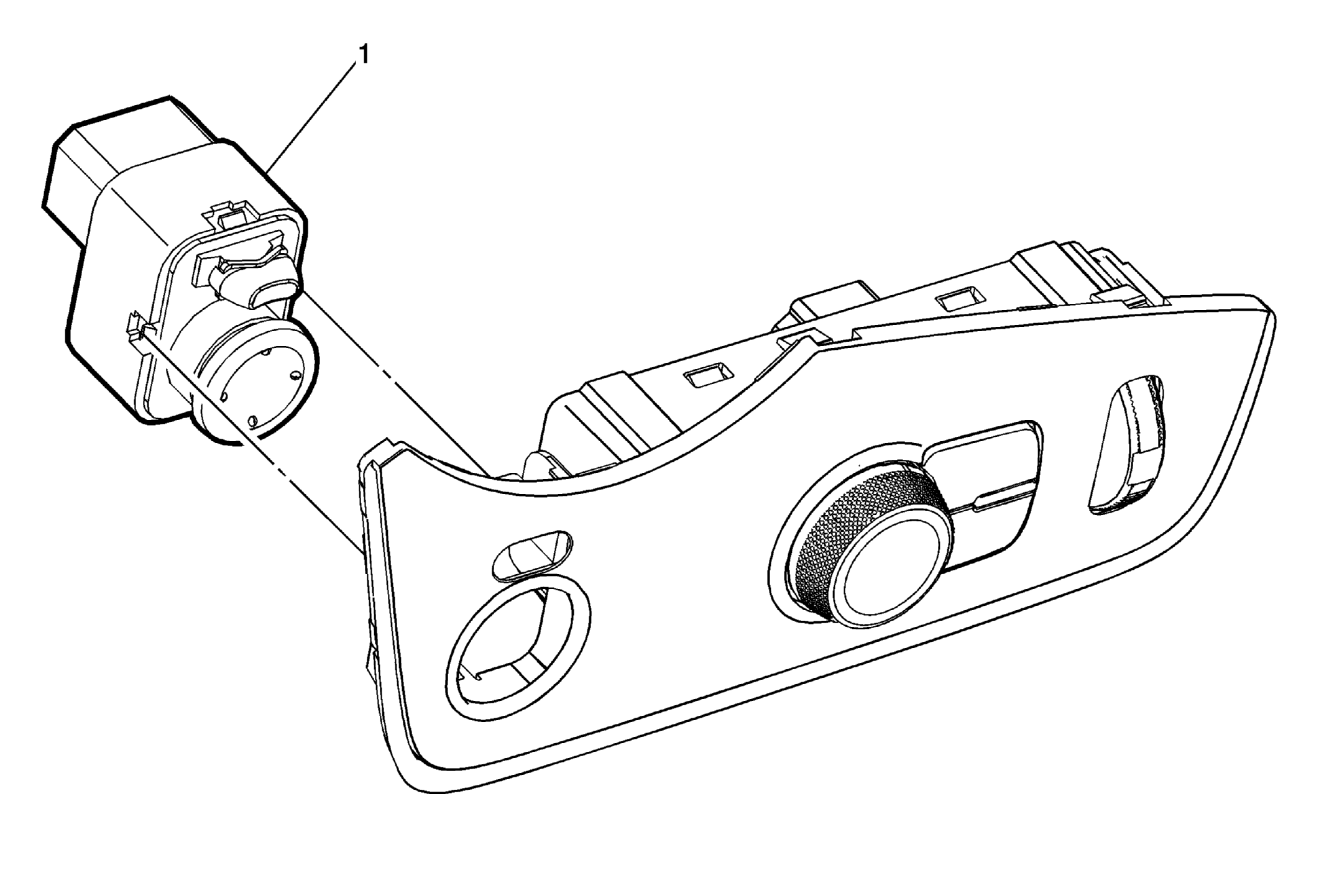

Fig 1: Outside Rearview Mirror Remote Control Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel trim plate applique - left side. Refer to Instrument Panel Trim Plate Applique Replacement - Left Side .
1	Outside Rearview Mirror Remote Control Switch Procedure Disconnect the electrical connections. Release tabs on switch to remove from the applique.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel trim plate applique - left side. Refer to Instrument Panel Trim Plate Applique Replacement - Left Side .

Outside Rearview Mirror Remote Control Switch

Procedure
