Installation Procedure
- Maneuver the module past the rear impact bar.

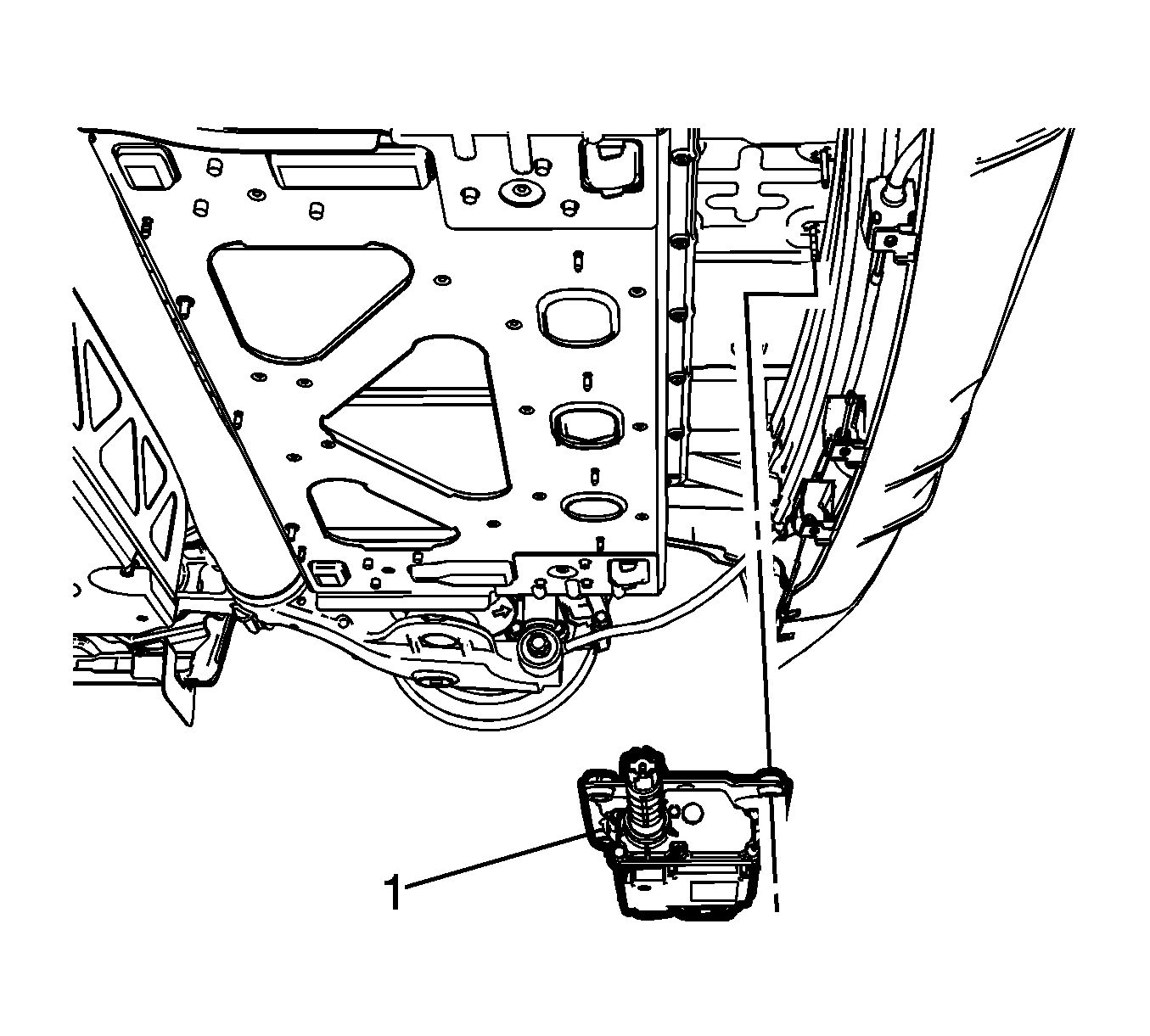

- Install the electronic parking brake control module (1) to the studs on the vehicle underbody.

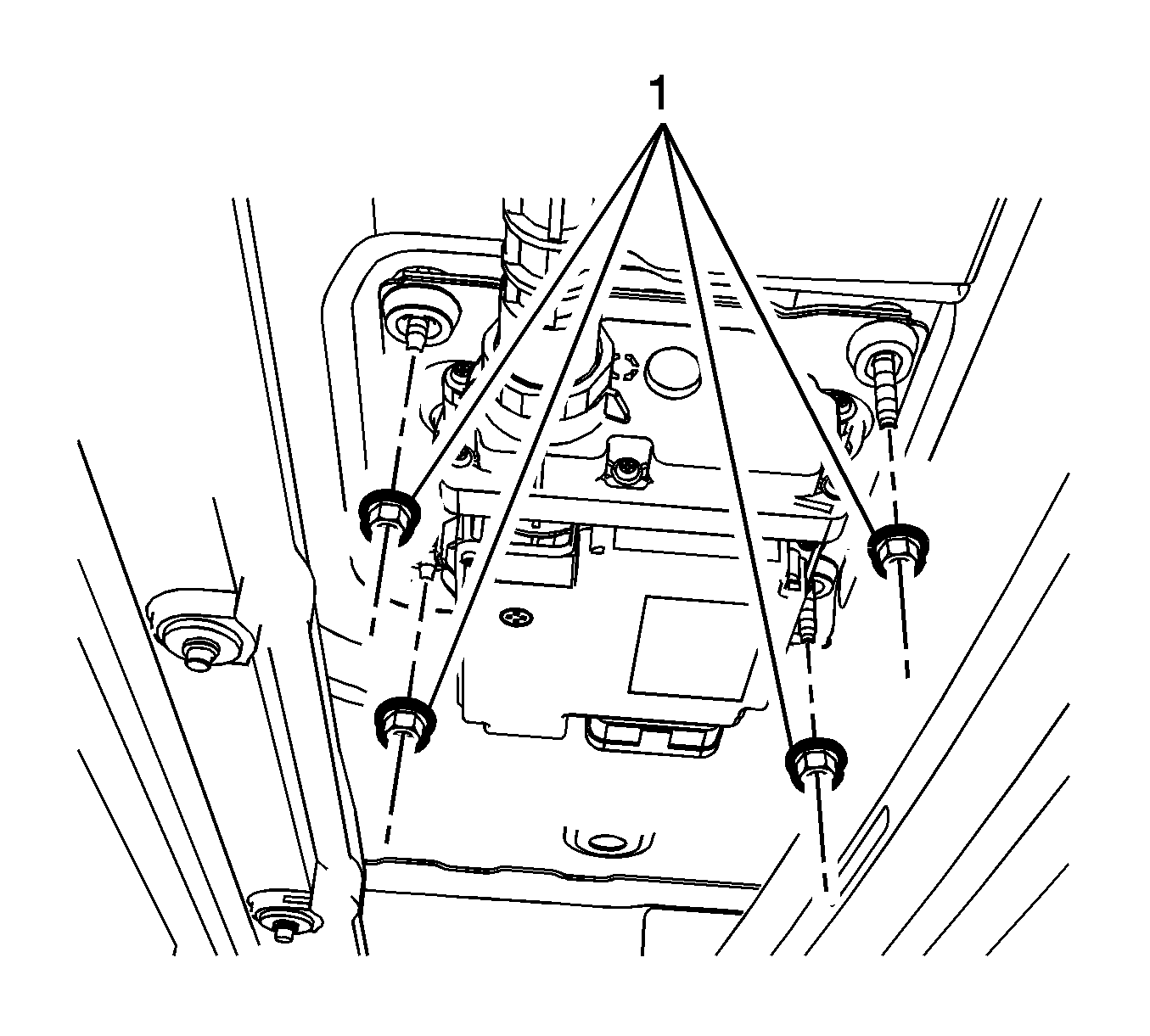

- Install the electronic parking brake control module bracket nuts (1) and tighten to 10 N.m (89 lb in).
- Connect the electronic parking brake control module electrical connector.

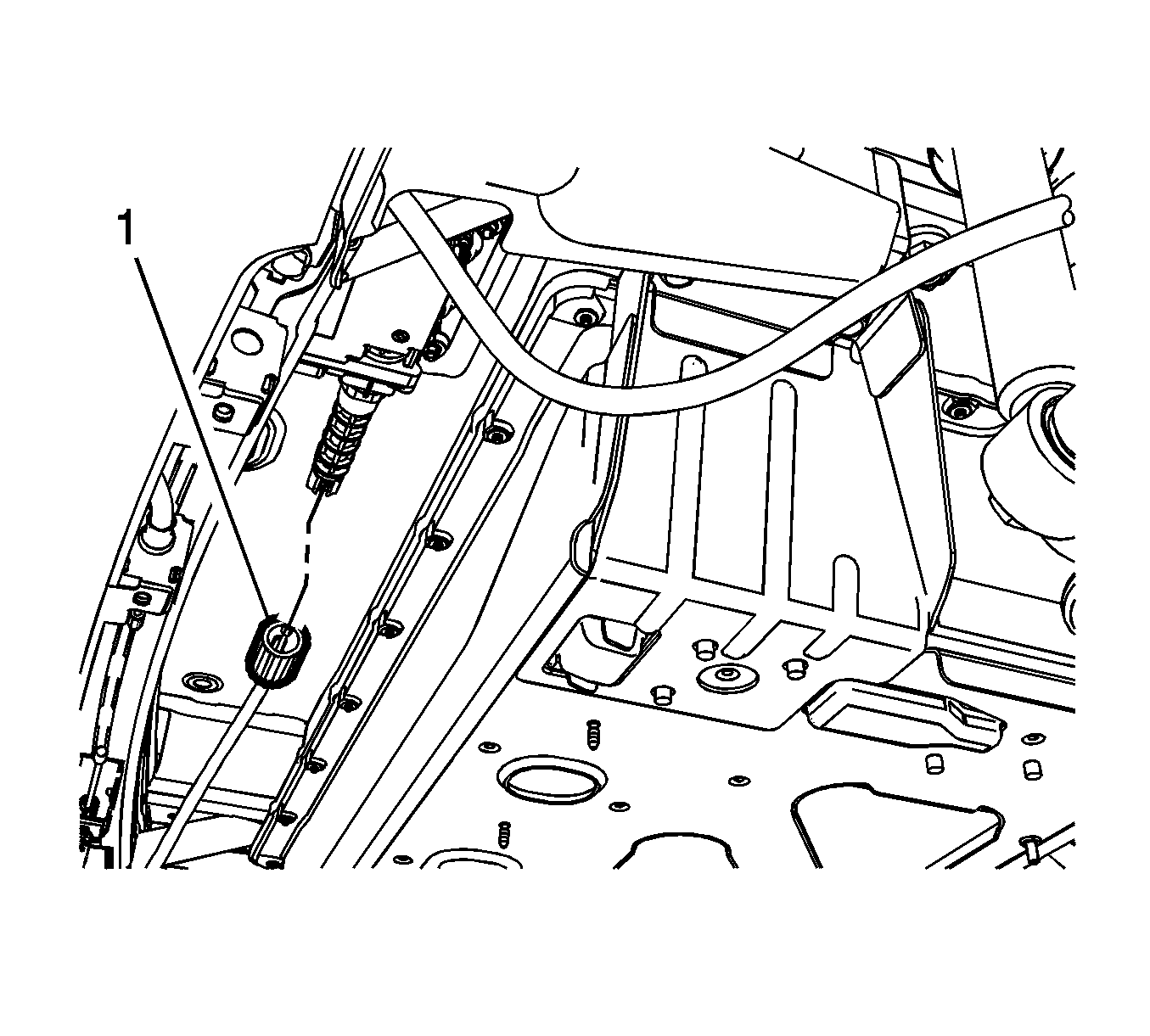

- Install the parking brake rear cable nut (1) to the electronic parking brake control module and tighten to 6 N.m (53 lb in).
- Install the underbody rear air rear deflector. Refer to Underbody Rear Air Rear Deflector Replacement (Rear)Underbody Rear Air Rear Deflector Replacement (Front) .
- Enable the parking brake cable adjuster. Refer to Parking Brake Cable Adjuster Enabling .
- Program the electronic parking brake control module. Refer to Electronic Parking Brake Control Module Programming and Setup .
CAUTION:
Refer to Fastener Caution .
