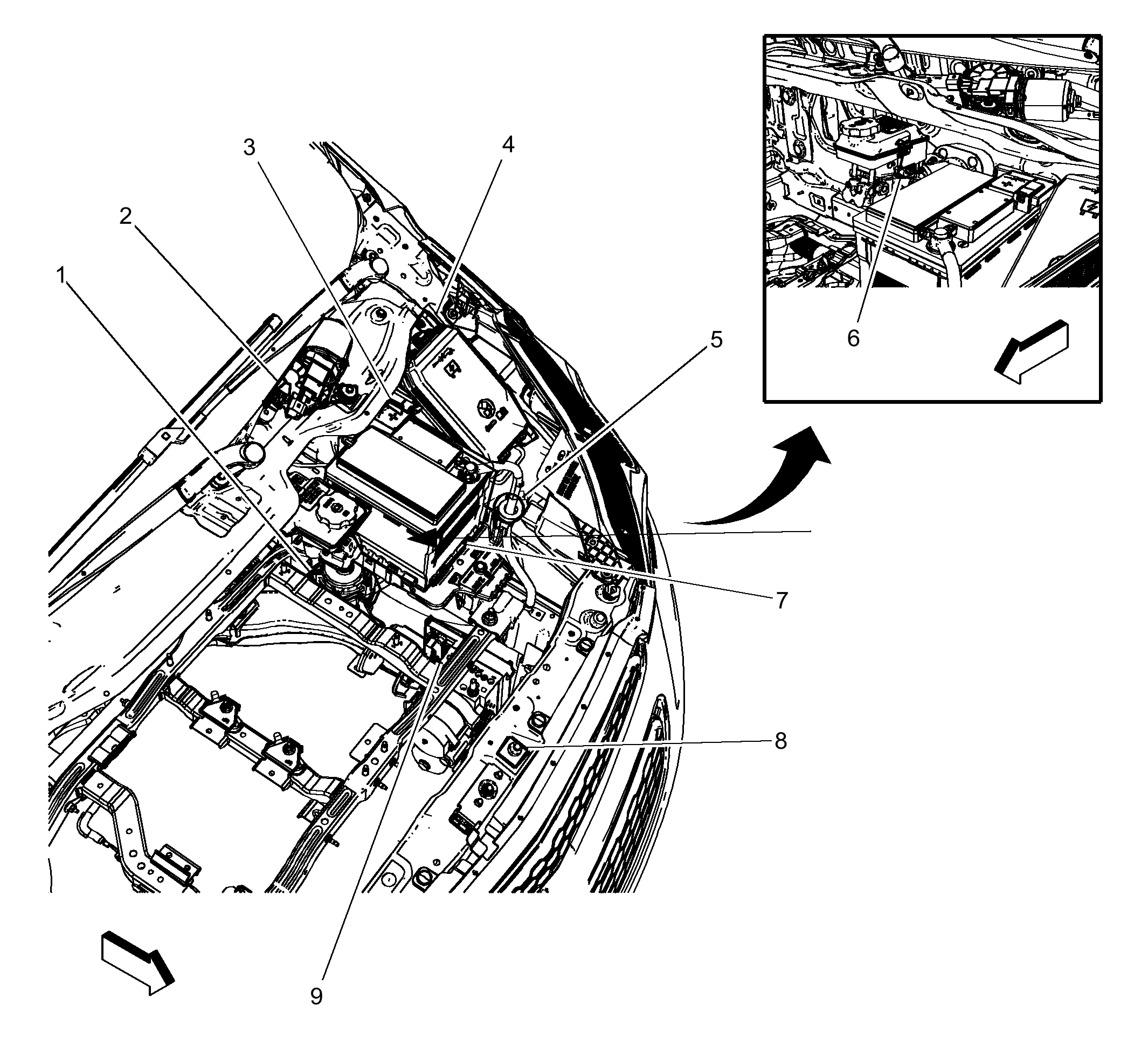

Left Side Engine Compartment
Left Side Engine Compartment
| Items |
|---|
| 1: G36 Auxiliary Heater Coolant Pump G36 Auxiliary Heater Coolant Pump |
| 2: M75 Windshield Wiper Motor M75 Windshield Wiper Motor |
| 3: X50D Fuse Block - Battery X50D Fuse Block - Battery X1X50D Fuse Block - Battery X2X50D Fuse Block - Battery X3X50D Fuse Block - Battery X4 |
| 4: X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1X50A Fuse Block - Underhood X2X50A Fuse Block - Underhood X3X50A Fuse Block - Underhood X4 |
| 5: B1 A/C Refrigerant Pressure Sensor B1 A/C Refrigerant Pressure Sensor |
| 6: B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch |
| 7: C1 Battery C1 Battery (-) |
| 8: B55 Hood Ajar Switch B55 Hood Ajar Switch |
| 9: K17 Electronic Brake Control Module K17 Electronic Brake Control Module |
