Liftgate Close Switch Replacement

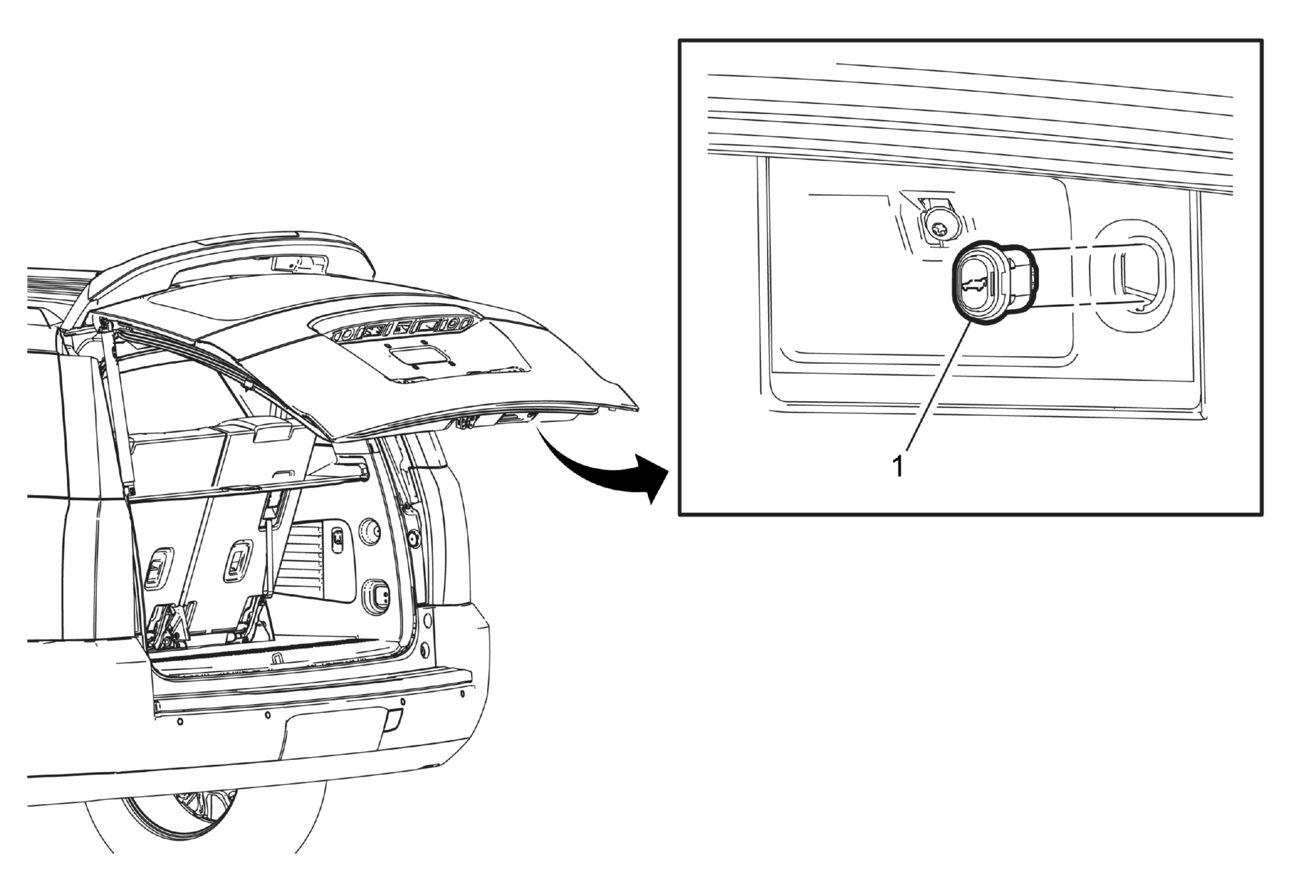

Fig 1: Liftgate Close Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the liftgate trim finish panel pull cup. Refer to Liftgate Trim Finish Panel Pull Cup Replacement .
1	Liftgate Close Switch Procedure Using the appropriate tool, depress the tabs on the switch to remove.
