Windshield Multifunction Sensor Mount Bracket Cover Insert Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 GMC Yukon XL, 2015 GMC Yukon, 2015 Chevrolet Tahoe, 2015 Chevrolet Suburban, and 2015 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

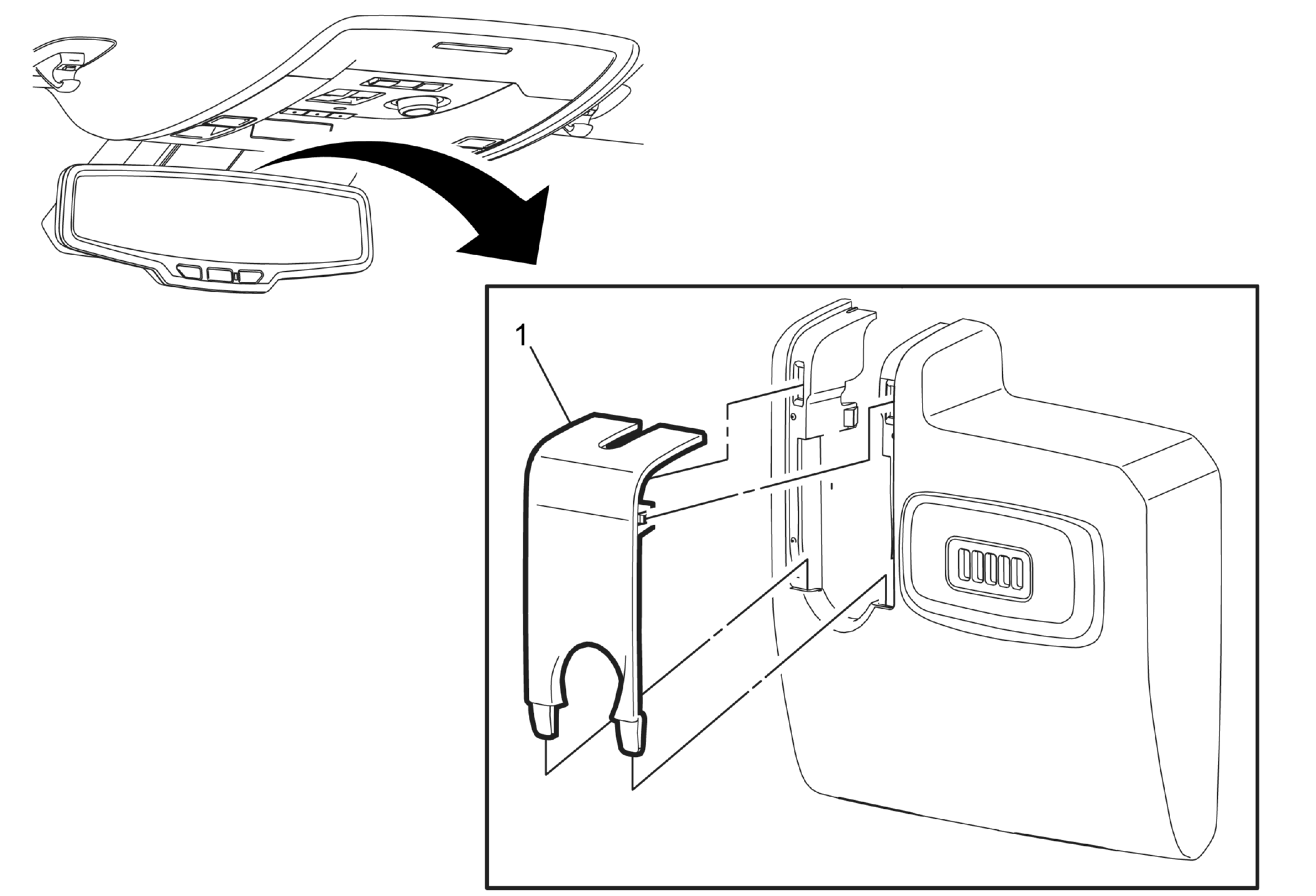

Fig 1: Windshield Multifunction Sensor Mount Bracket Cover Insert

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Windshield Multifunction Sensor Mount Bracket Cover Insert Procedures Using a plastic trim tool, carefully pry downward on the cover to release from windshield. Squeeze tabs on insert and pull apart from cover. NOTE: The windshield multifunction sensor mount bracket cover and cover insert has to be removed as a single unit to prevent damage to mirror.

Callout

Component Name

Windshield Multifunction Sensor Mount Bracket Cover Insert

Procedures

Using a plastic trim tool, carefully pry downward on the cover to release from windshield.
Squeeze tabs on insert and pull apart from cover.

NOTE:

The windshield multifunction sensor mount bracket cover and cover insert has to be removed as a single unit to prevent damage to mirror.
