Communication Interface Module Bracket Replacement (Cadillac)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 GMC Yukon XL, 2015 GMC Yukon, 2015 Chevrolet Tahoe, 2015 Chevrolet Suburban, and 2015 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

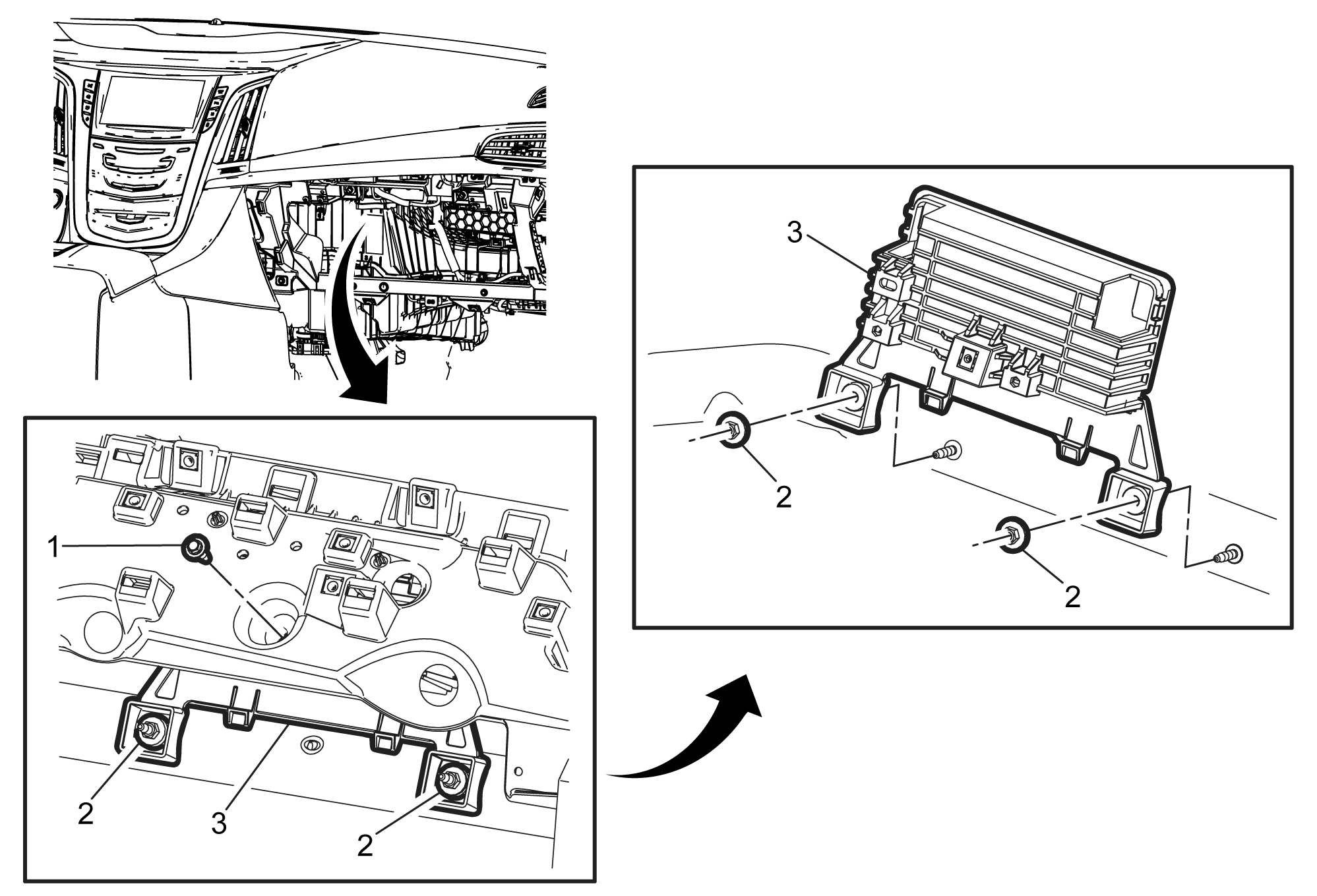

Fig 1: Communication Interface Module Bracket (Cadillac)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Lower Trim Panel Replacement (Cadillac)
1	Communication Interface Module Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Communication Interface Module Bracket Nut (Qty: 2) Tighten 4 N.m (35 lb in)
3	Communication Interface Module Bracket Procedure Disconnect the electrical connectors and remove the wiring harness from the module and bracket. Transfer components as necessary.
