Radio Control Assembly Replacement

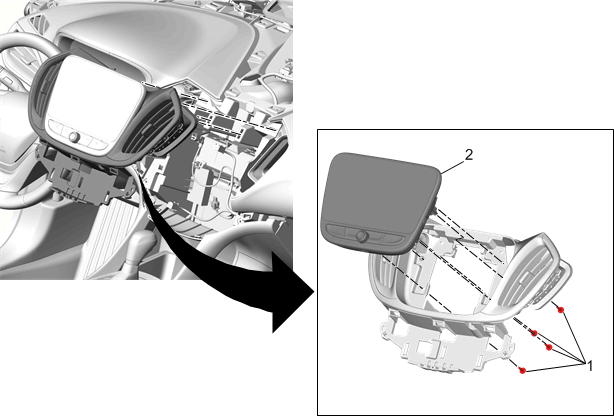

Fig 1: Radio Control Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Instrument Panel Center Air Outlet. Refer to Instrument Panel Center Air Outlet Replacement
1	Radio Control Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Radio Control Procedure Transfer components as necessary. Refer to Control Module References for programming and setup procedures, if required.

Callout

Component Name

Preliminary Procedure
Remove Instrument Panel Center Air Outlet. Refer to Instrument Panel Center Air Outlet Replacement

Radio Control Bolt (Qty: 4)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Radio Control

Procedure

Transfer components as necessary.
Refer to Control Module References for programming and setup procedures, if required.
