Installation Procedure

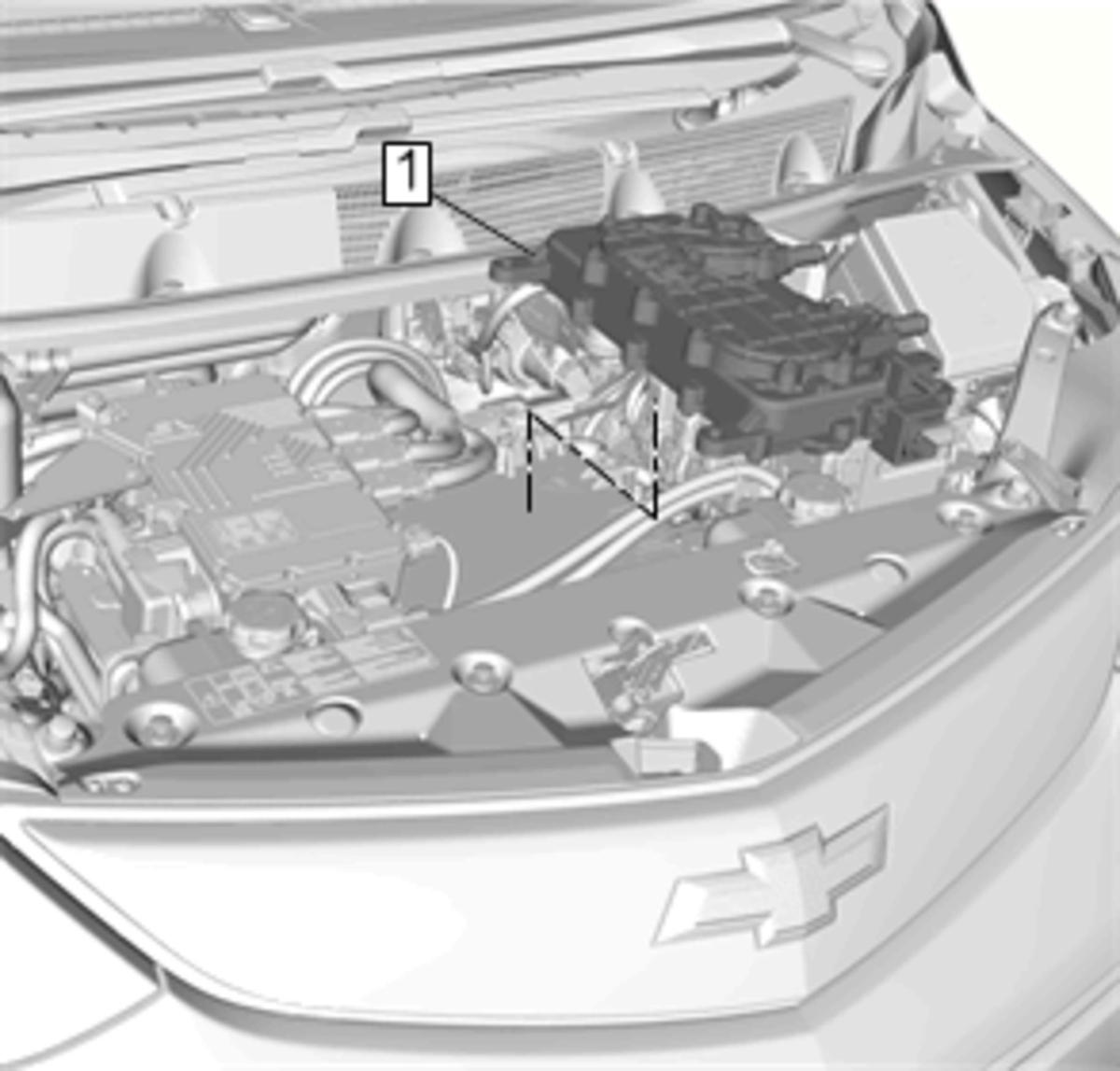

    Fig 1: Accessory DC Power Control Module
    GM4529660Courtesy of GENERAL MOTORS COMPANY
  1. Install Accessory DC Power Control Module (1)

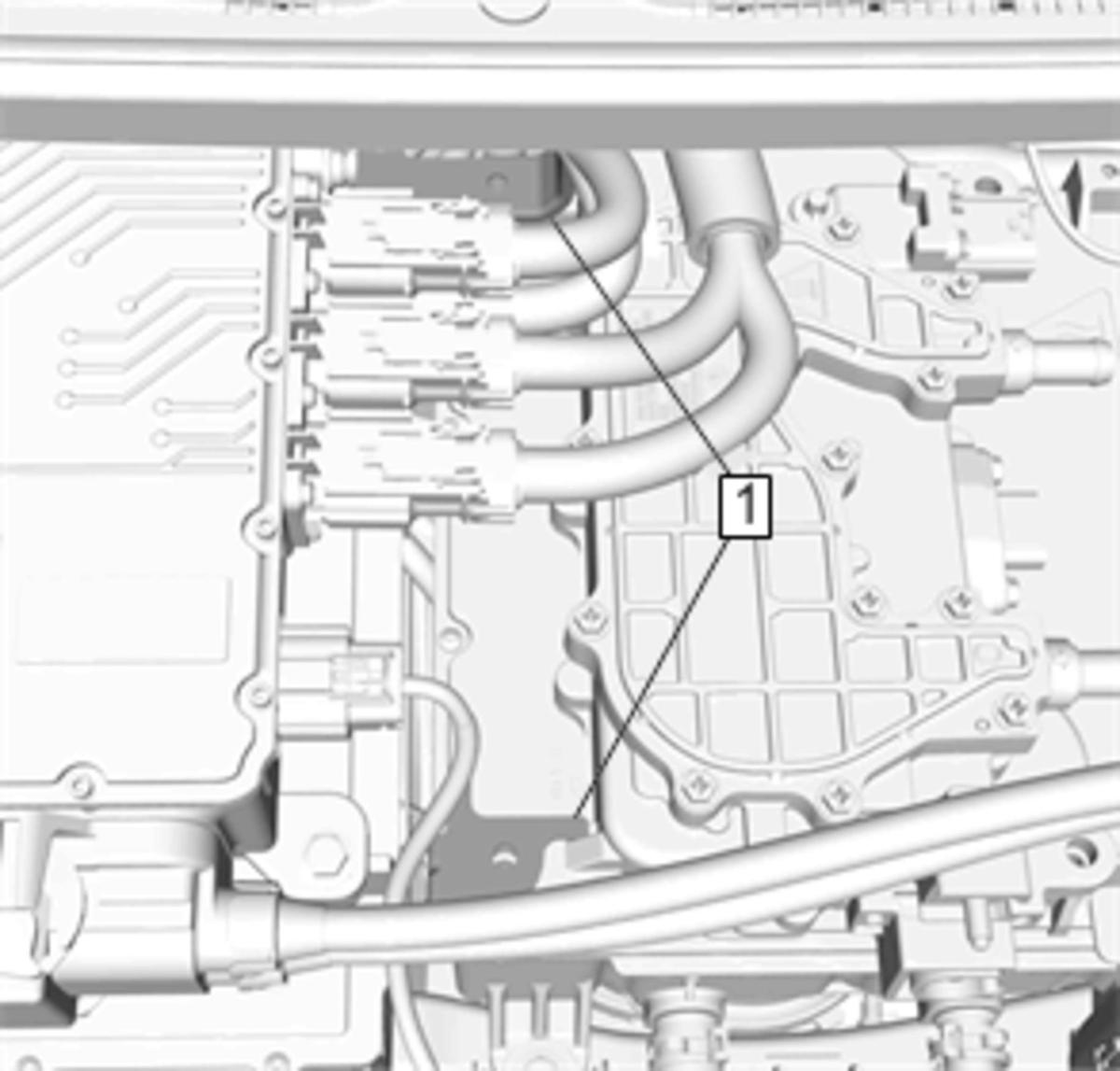

    2. Fig 2: Engine Wiring Harness Brackets
    GM4529659Courtesy of GENERAL MOTORS COMPANY
  2. Install Engine Wiring Harness Brackets (1) (Qty: 2)

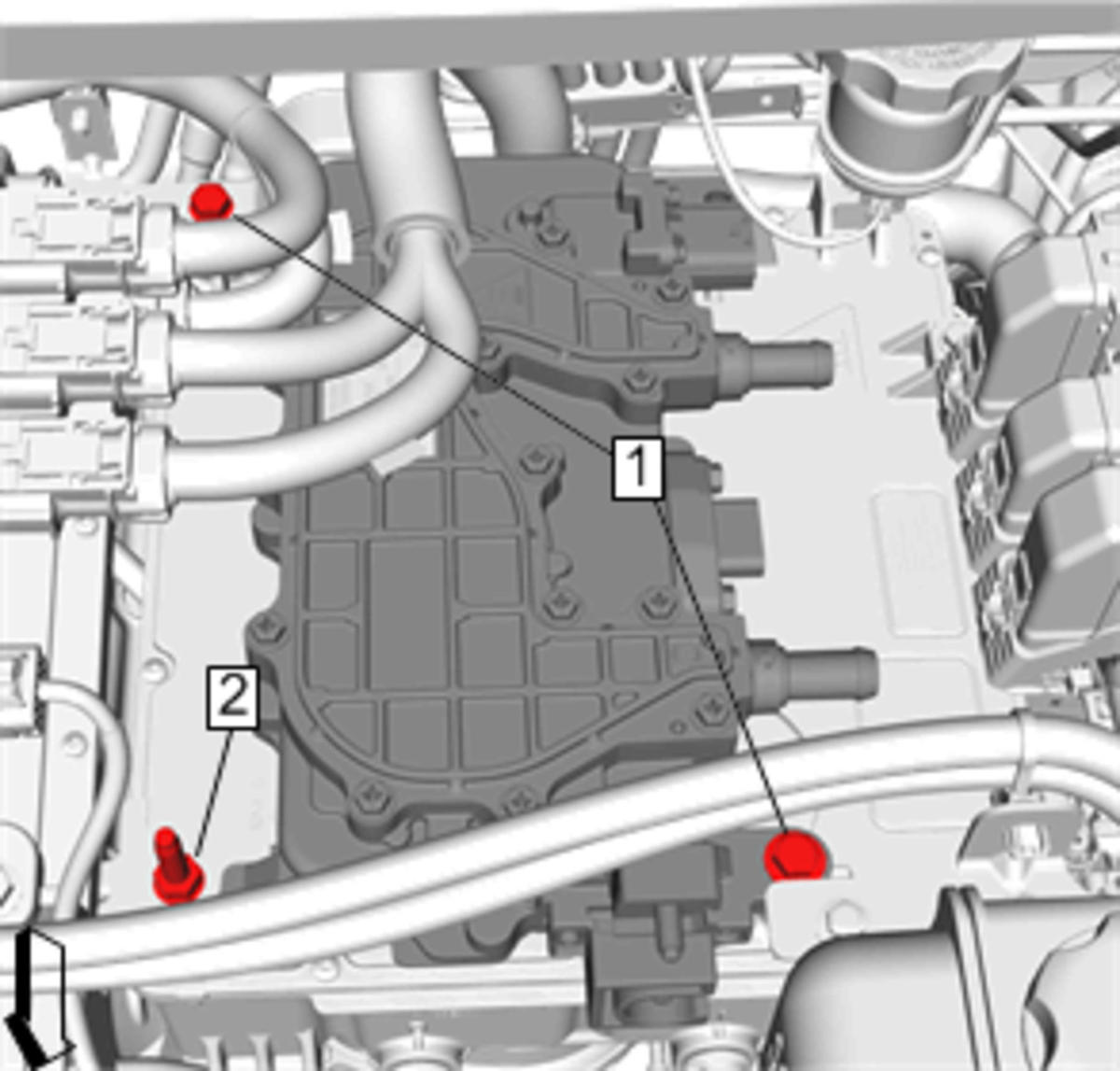

    3. Fig 3: Accessory DC Power Control Module Bolts And Studs
    GM4529658Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install Accessory DC Power Control Module Bolts (1) (Qty: 2) and tighten to 22 N.m (16 lb ft)
  4. Install Accessory DC Power Control Module Stud (2) and tighten to 22 N.m (16 lb ft)

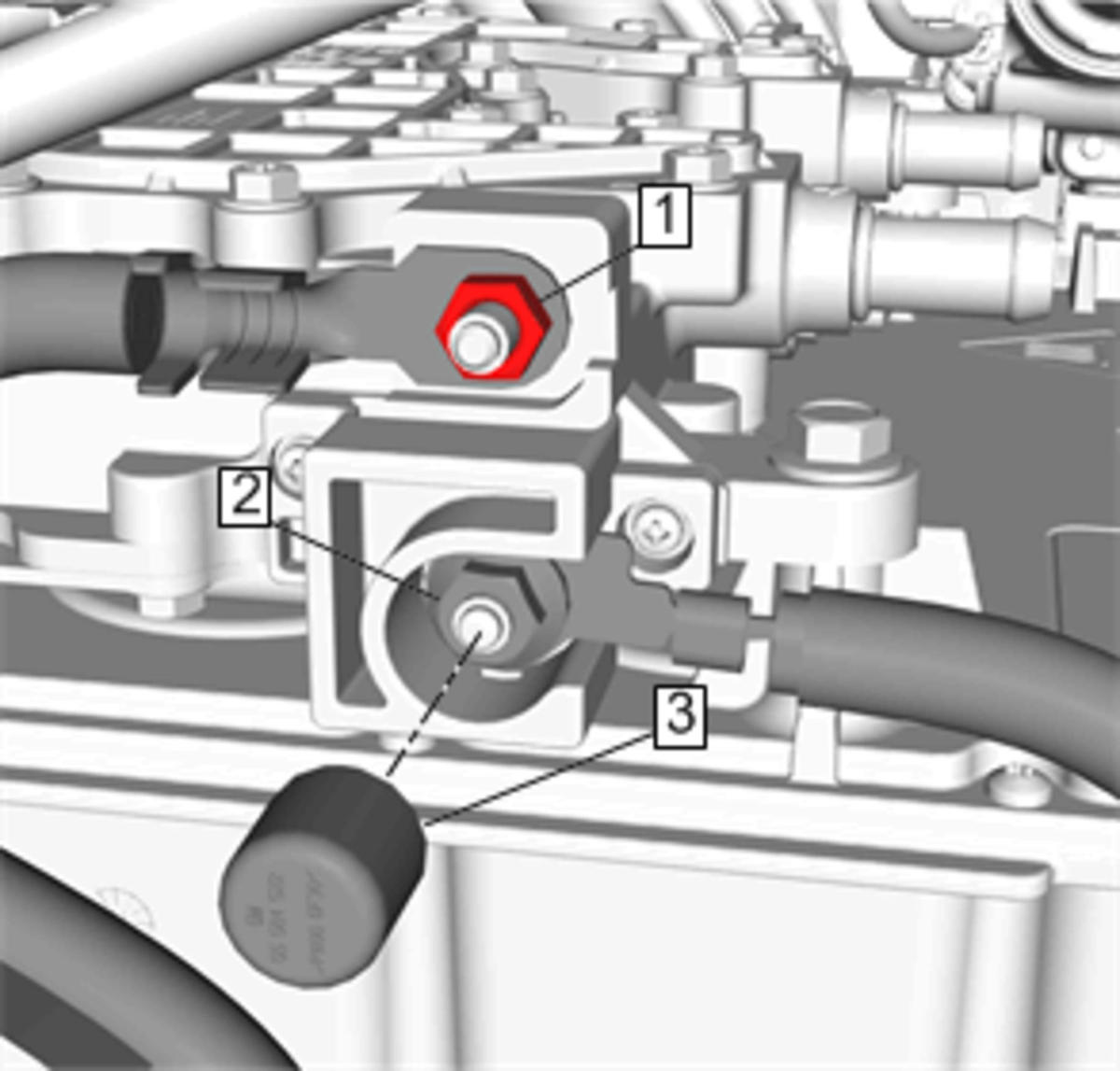

    5. Fig 4: Battery Negative Cable Extension Cable And Battery Positive Cable Components
    GM4545651Courtesy of GENERAL MOTORS COMPANY
  5. Install Battery Negative Cable Extension Cable & Battery Positive Cable
  6. Install and tighten Battery Positive Cable and Nut (2) to 15 N.m (11 lb ft)
  7. Install Battery Positive Cable Protector (3)
  8. Install and tighten Battery Negative Cable Extension Cable Fastener (1) to 15 N.m (11 lb ft)

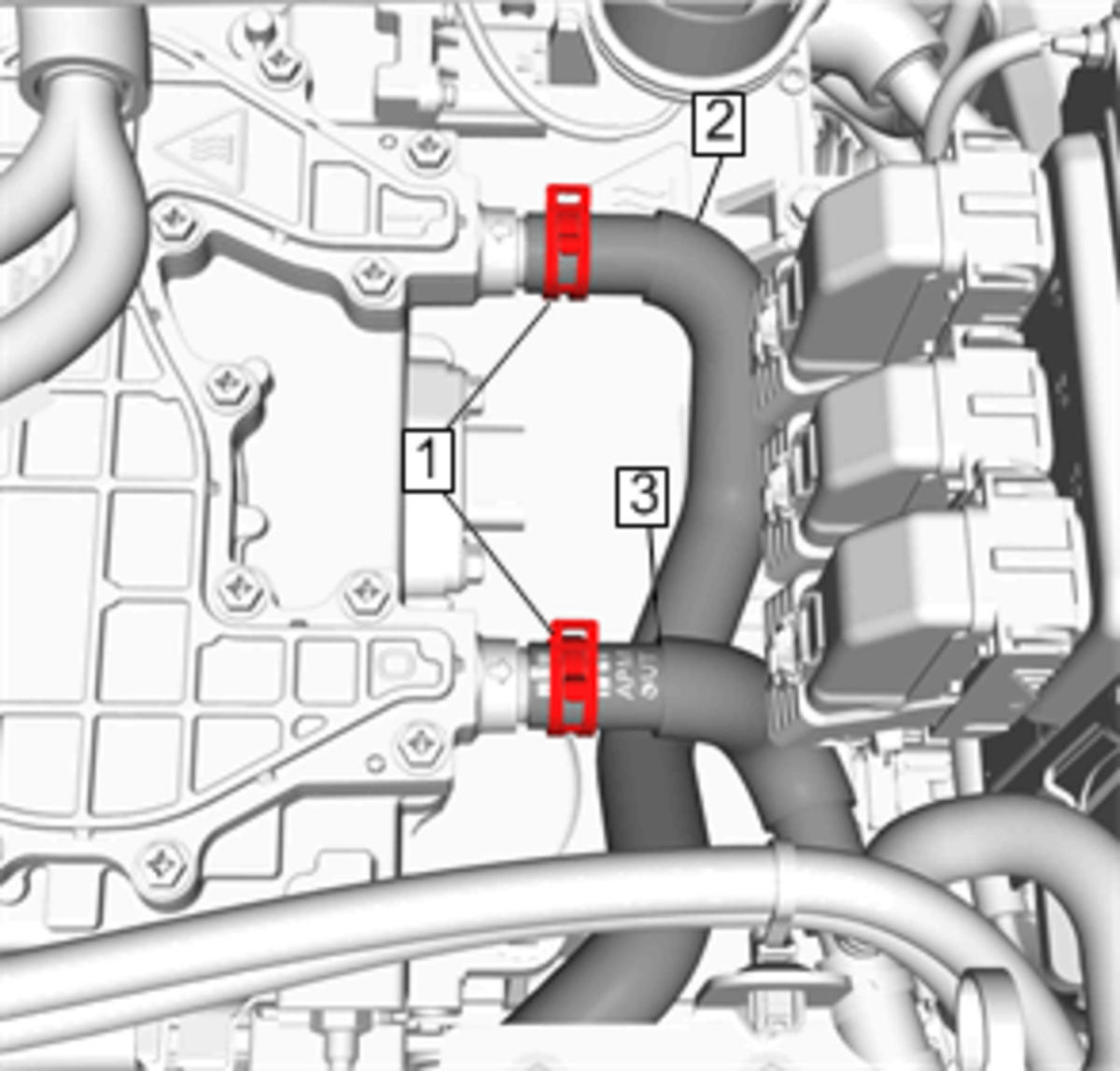

    9. Fig 5: Drive Motor Generator Control Module Cooling Outlet Hose, Electric Differential Drive Motor Power Inverter Module Cooling Hose And Clamps
    GM4529656Courtesy of GENERAL MOTORS COMPANY
  9. Install the Electric Differential Drive Motor Power Inverter Module Cooling Hose (3) and Engage the Clamp (1)
  10. Install the Drive Motor Generator Control Module Cooling Outlet Hose (2) and Engage the Clamp (1)

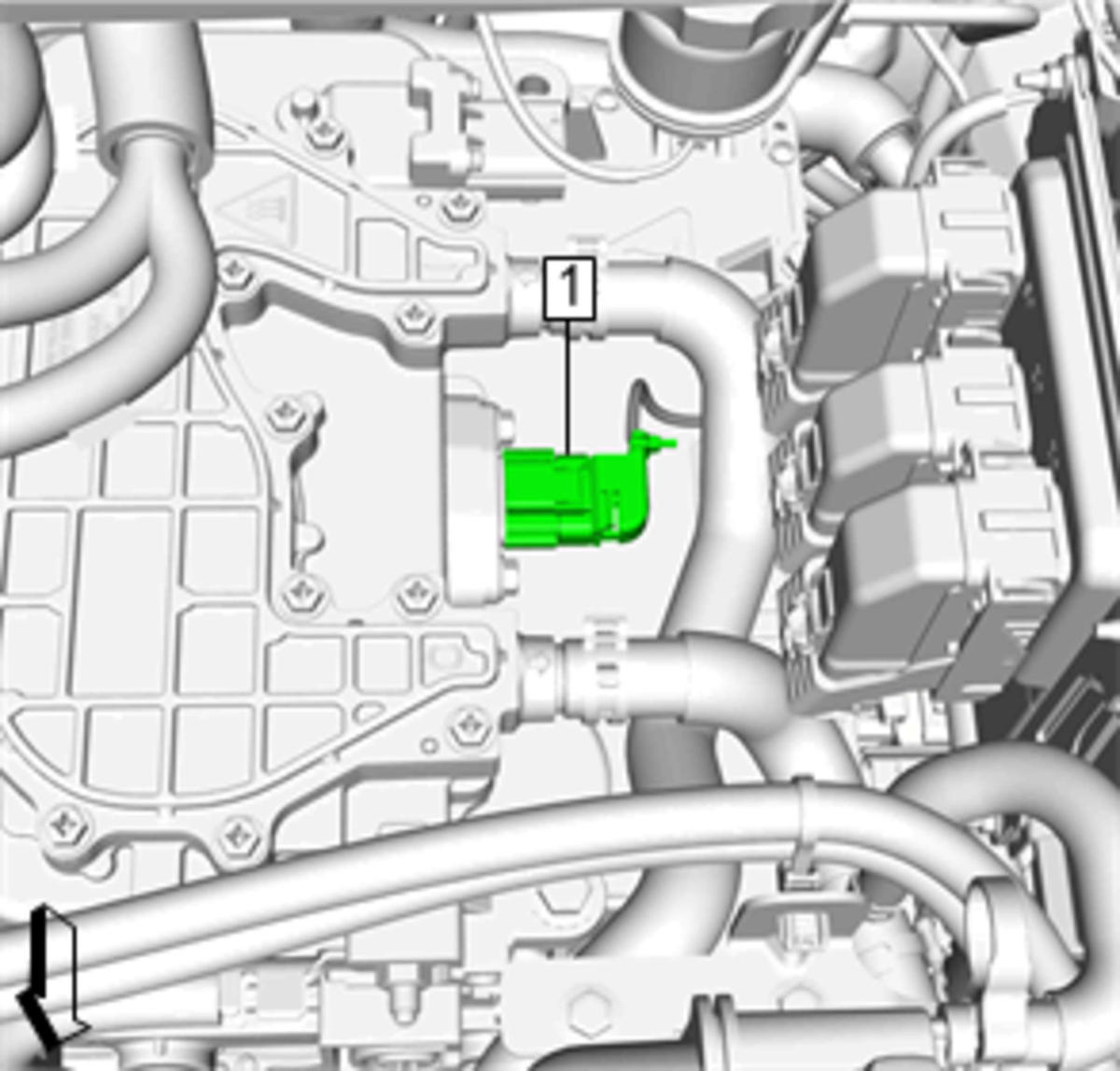

    11. Fig 6: Low Voltage Connection Connector
    GM4529655Courtesy of GENERAL MOTORS COMPANY
  11. Connect Low Voltage connection connector (1) @ Accessory DC Power Control Module

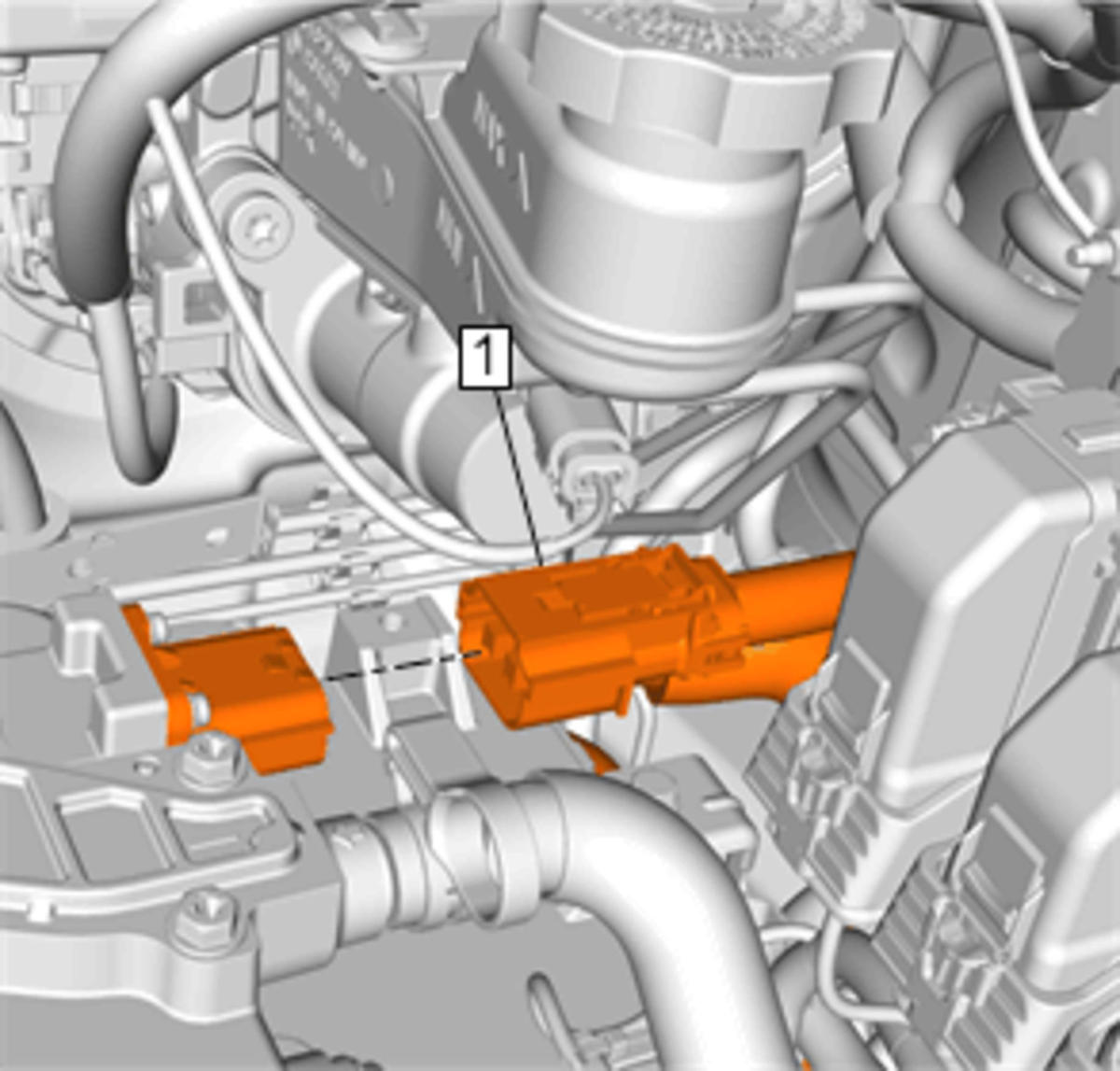

    12. Fig 7: Auxiliary Power Module Connector
    GM4529631Courtesy of GENERAL MOTORS COMPANY
  12. Connect Auxiliary Power Module Connector (1)

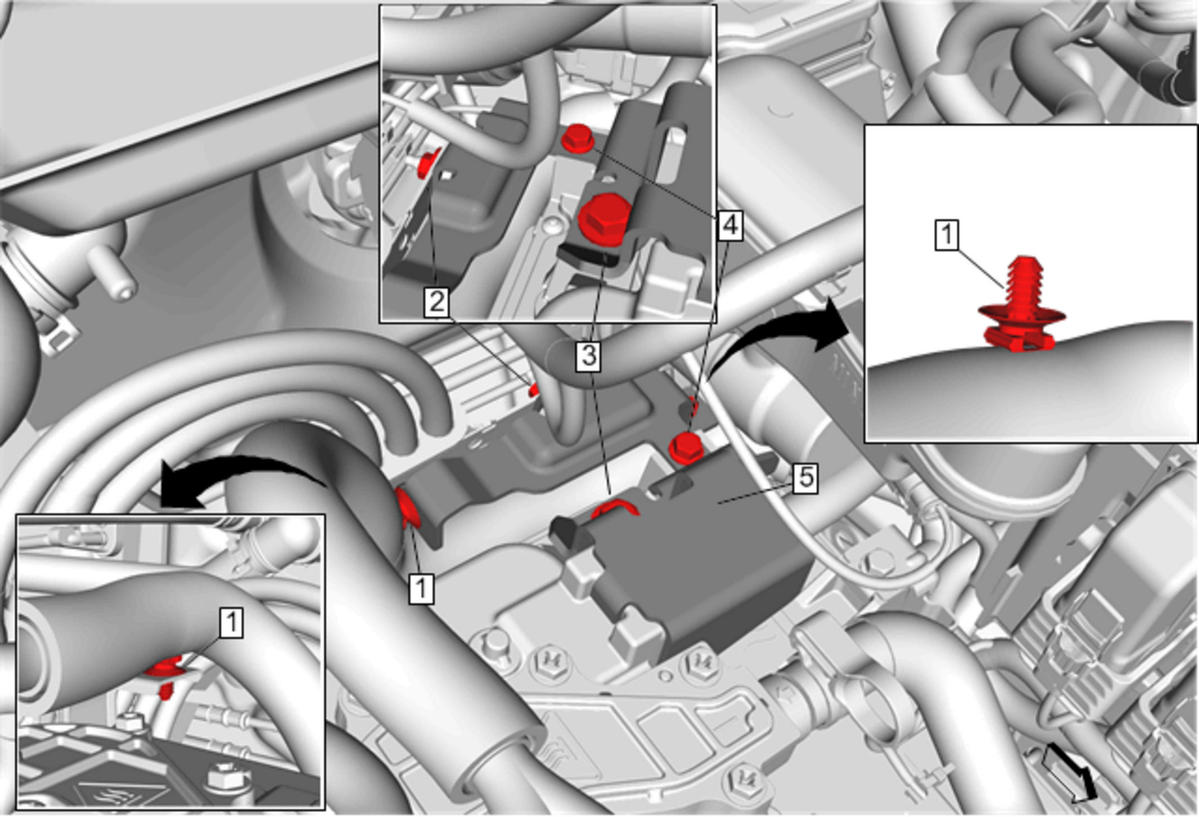

    13. Fig 8: DC Power Control Module High Voltage Connector Protector, Nut And Bolts
    GM4529630Courtesy of GENERAL MOTORS COMPANY
  13. Install Accessory DC Power Control Module High Voltage Connector Protector (5)
  14. Install Accessory DC Power Control Module High Voltage Connector Protector Bolt (4) and tighten to 9 N.m (80 lb in)
  15. Install Accessory DC Power Control Module High Voltage Connector Protector Bolt (3) and tighten to 22 N.m (16 lb ft)
  16. Install Accessory DC Power Control Module High Voltage Connector Protector Nut (2) and tighten to 9 N.m (80 lb in)
  17. Install the battery to battery positive cable retainers.
  18. Fill the drive motor generator power inverter module cooling system. Refer to Drive Motor Generator Power Inverter Module Cooling System Draining and Filling
  19. Enable the high voltage system. Refer to High Voltage Enabling
