Installation Procedure

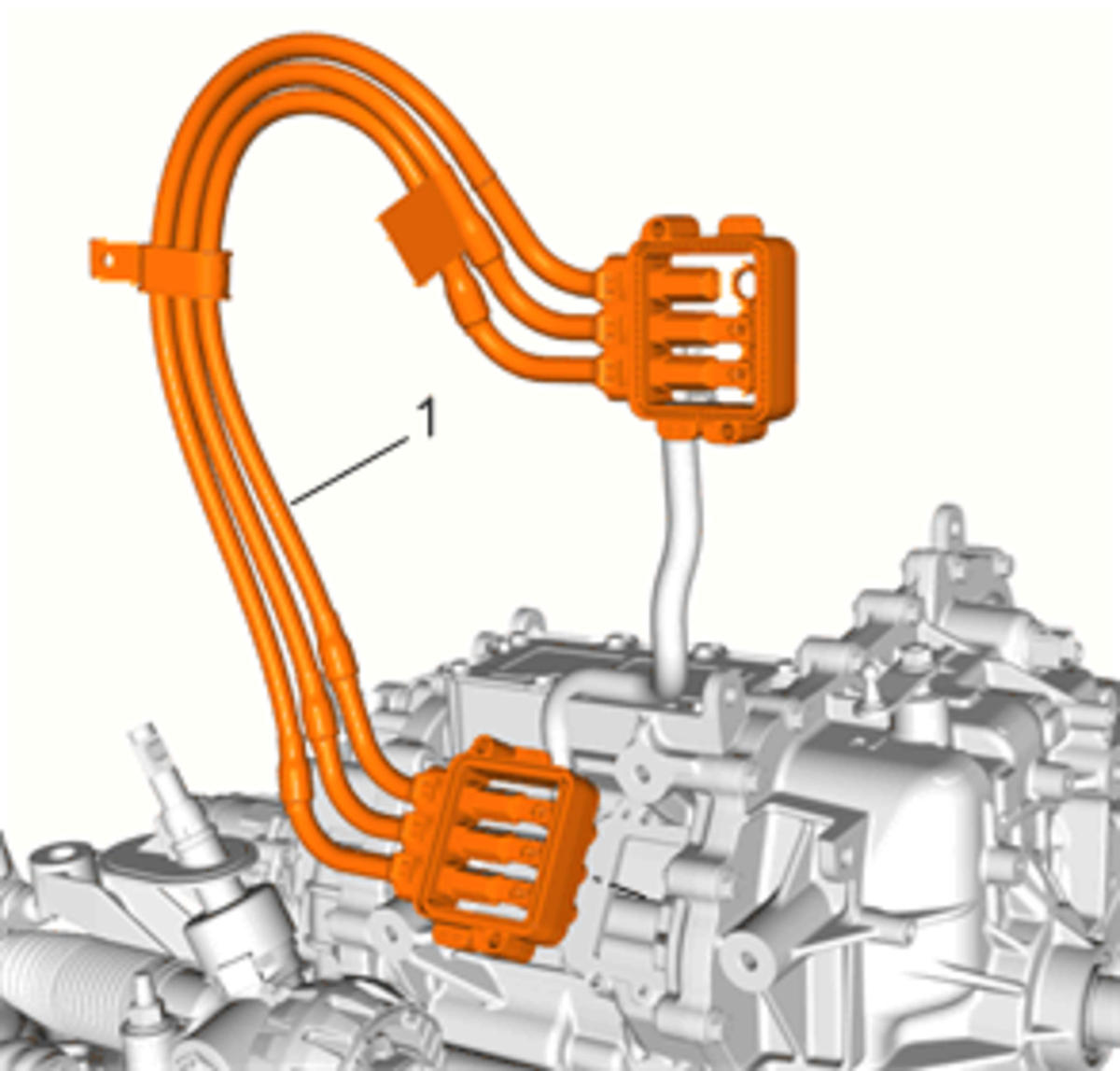

    Fig 1: Drive Motor Power Inverter Module 3-Phase Cable
    GM4529674Courtesy of GENERAL MOTORS COMPANY
  1. Install Drive Motor Power Inverter Module 3-Phase Cable (1)

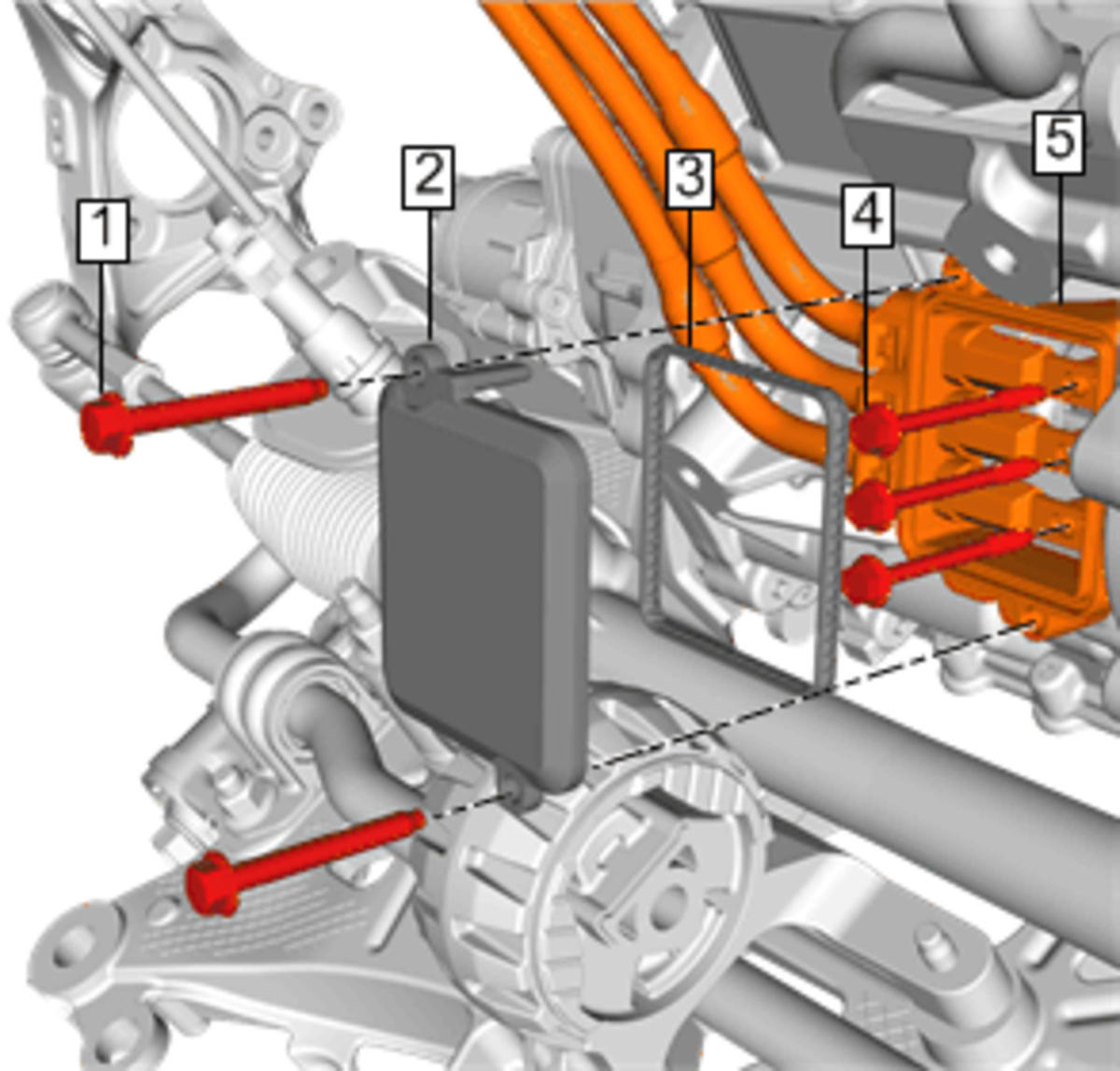

    2. Fig 2: Drive Motor Power Inverter Module 3-Phase Cable Connector Cover, Bolts And Seal
    GM4529673Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Tighten Drive Motor Power Inverter Module 3-Phase Cable Bolts (4) (Qty: 3) 9 N.m (80 lb in)
  3. Install NEW Drive Motor Power Inverter Module 3-Phase Cable Connector Cover Seal (3)
  4. Install Drive Motor Power Inverter Module 3-Phase Cable Connector Cover (2)
  5. Install Drive Motor Power Inverter Module 3-Phase Cable Connector Cover Bolts (1) (Qty: 2) to 9 N.m (80 lb in)
  6. Install Drive Motor Rear Mount Bracket. Refer to Drive Motor Rear Mount Bracket Replacement
  7. Enable the high voltage system. Refer to High Voltage Enabling
