Installation Procedure

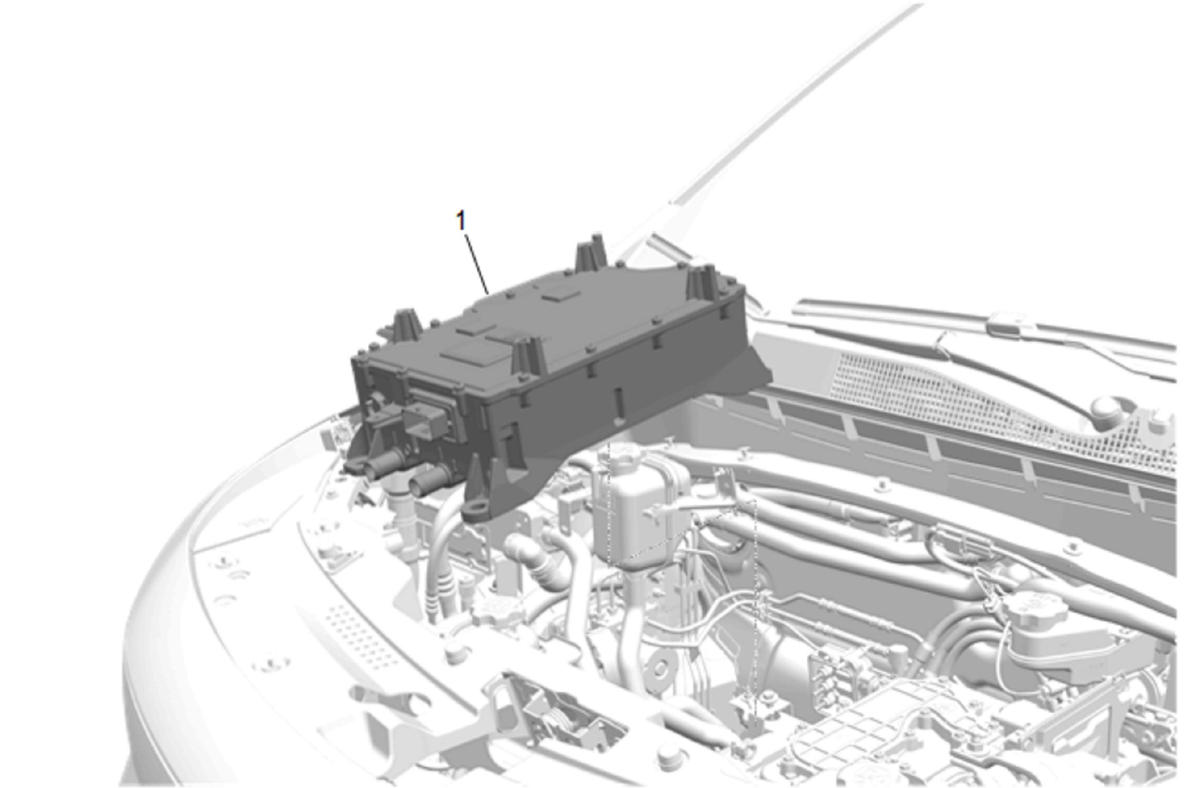

    Fig 1: Drive Motor Power Inverter Module
    GM4529672Courtesy of GENERAL MOTORS COMPANY
  1. Install Drive Motor Power Inverter Module (1)

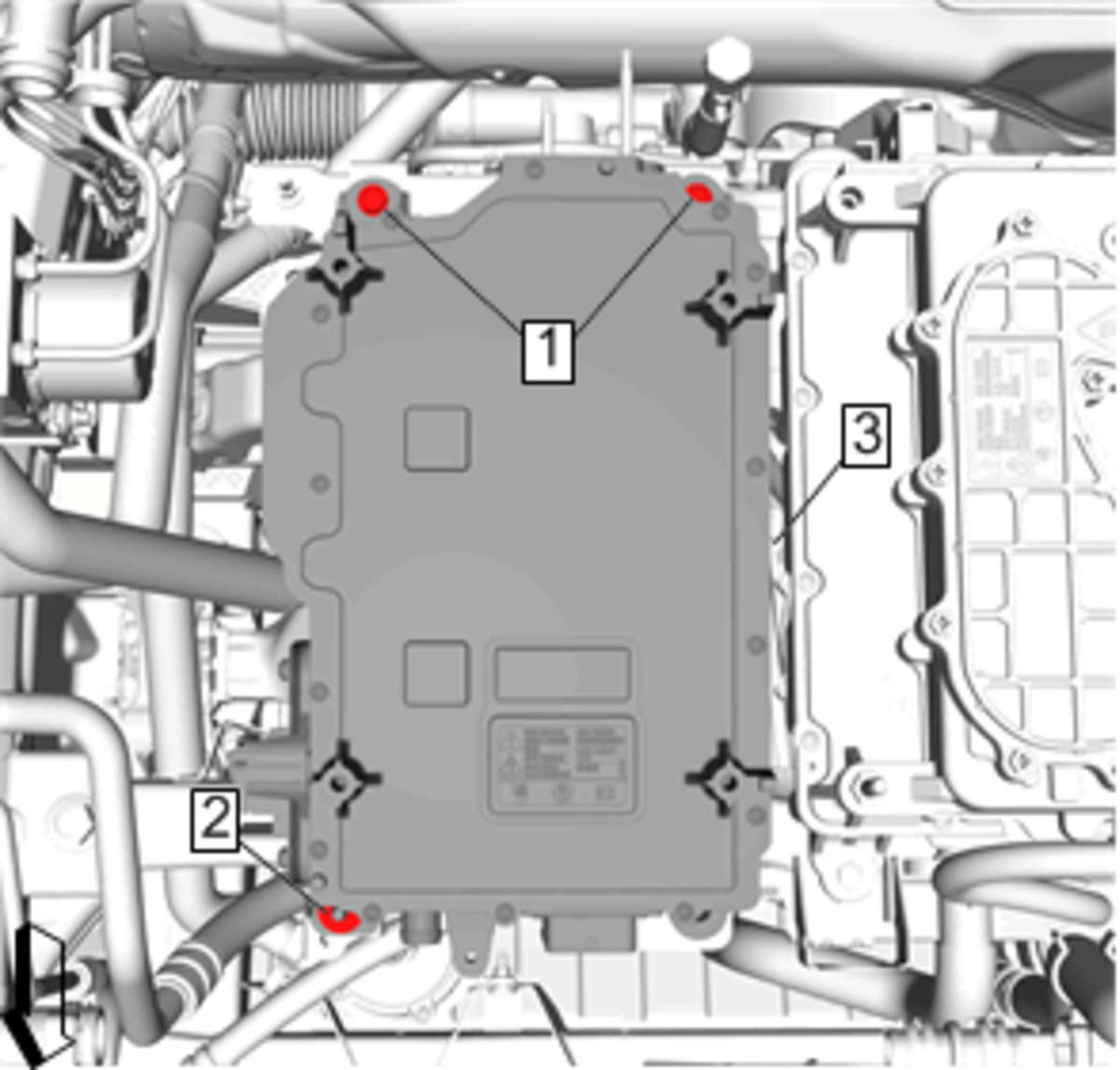

    2. Fig 2: Drive Motor Power Inverter Module Bolts And Nut
    GM4529671Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install Drive Motor Power Inverter Module Bolts (1) (Qty: 2) and tighten to 22 N.m (16 lb ft)
  3. Install Drive Motor Power Inverter Module Nut (2) and tighten to 22 N.m (16 lb ft)

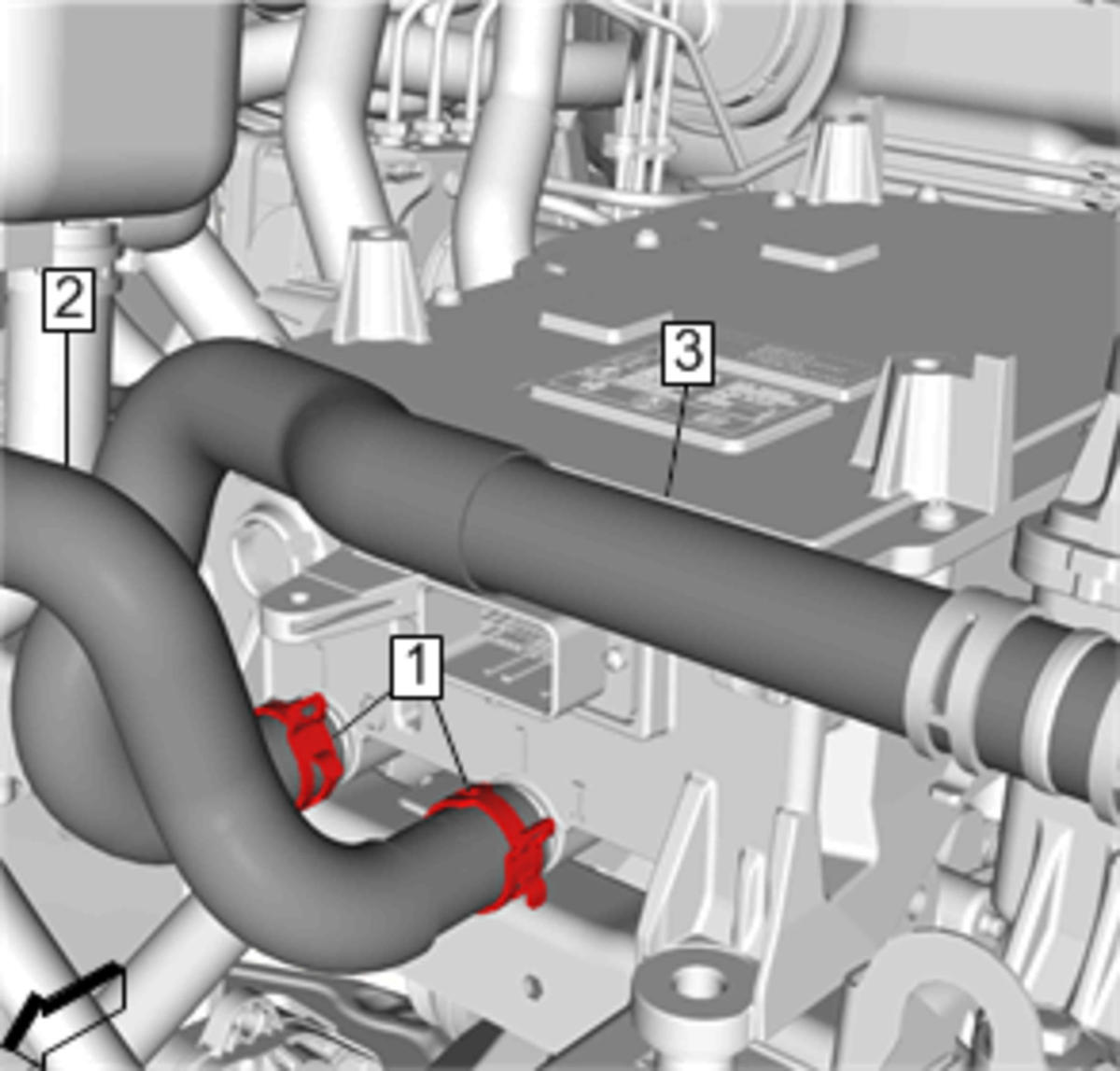

    4. Fig 3: Drive Motor Generator Control Module Radiator/Cooling Outlet Hoses And Clamps
    GM4529670Courtesy of GENERAL MOTORS COMPANY
  4. Install the Drive Motor Generator Control Module Cooling Outlet Hose (3) and Engage the Clamp (1)
  5. Install the Drive Motor Generator Control Module Radiator Outlet Hose (2) and Engage the Clamp (1)

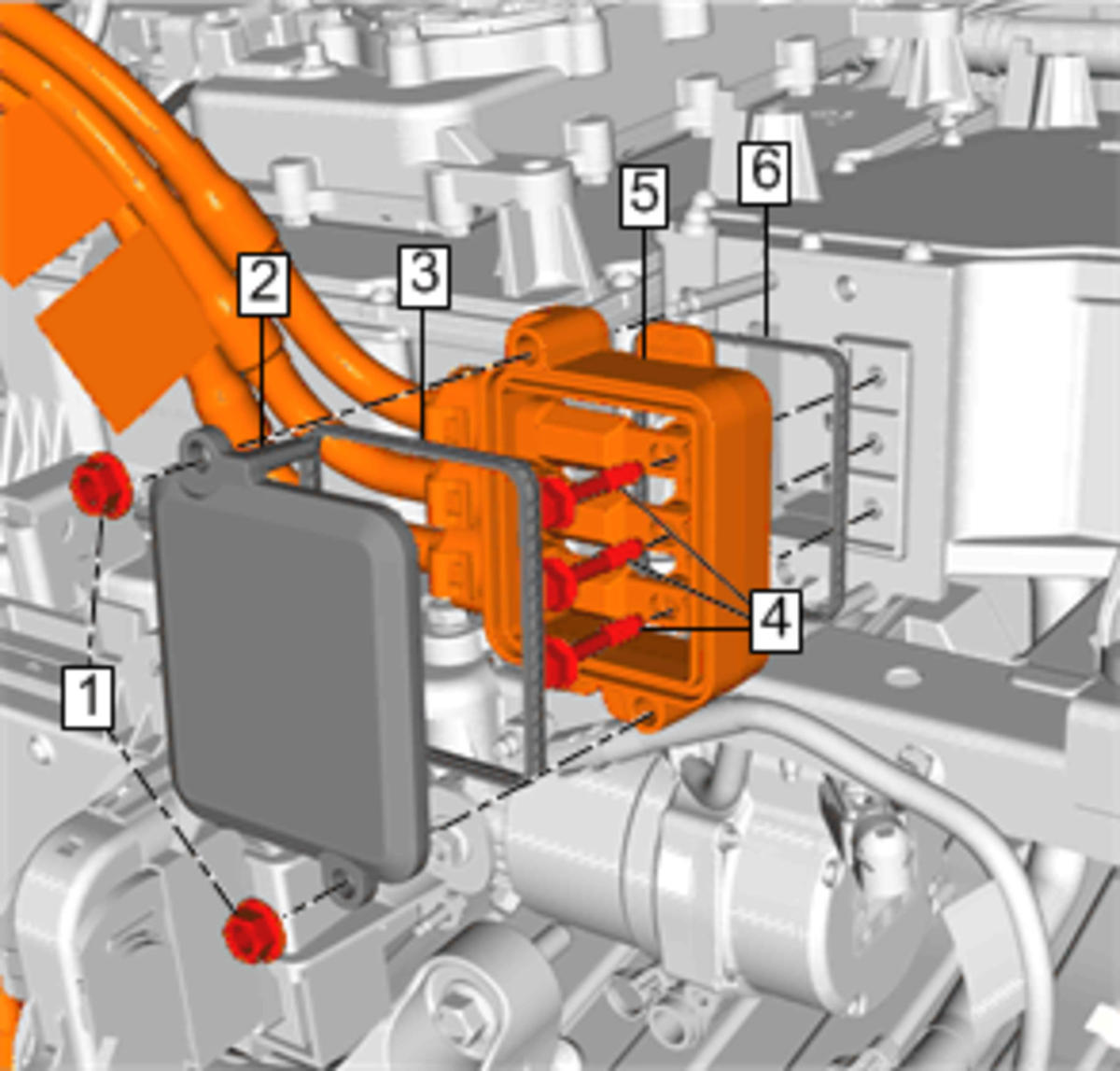

    6. Fig 4: Drive Motor Power Inverter Module 3-Phase Cable, Cover, Nuts, Bolts And Seals
    GM4581955Courtesy of GENERAL MOTORS COMPANY
  6. Clean all of the gasket surfaces.
  7. Install NEW Drive Motor Power Inverter Module 3-Phase Cable Seal (6)
  8. Install Drive Motor Power Inverter Module 3-Phase Cable (5)
    9. CAUTION:

    Refer to Fastener Caution .

  9. Tighten Drive Motor Power Inverter Module 3-Phase Cable Bolts (4) (Qty: 3) to 9 N.m (80 lb in)
  10. Install NEW Drive Motor Power Inverter Module 3-Phase Cable Cover Seal (3)
  11. Install Drive Motor Power Inverter Module 3-Phase Cable Cover (2)
  12. Install Drive Motor Power Inverter Module 3-Phase Cable Cover Nuts (1) (Qty: 2) and tighten to 9 N.m (80 lb in)

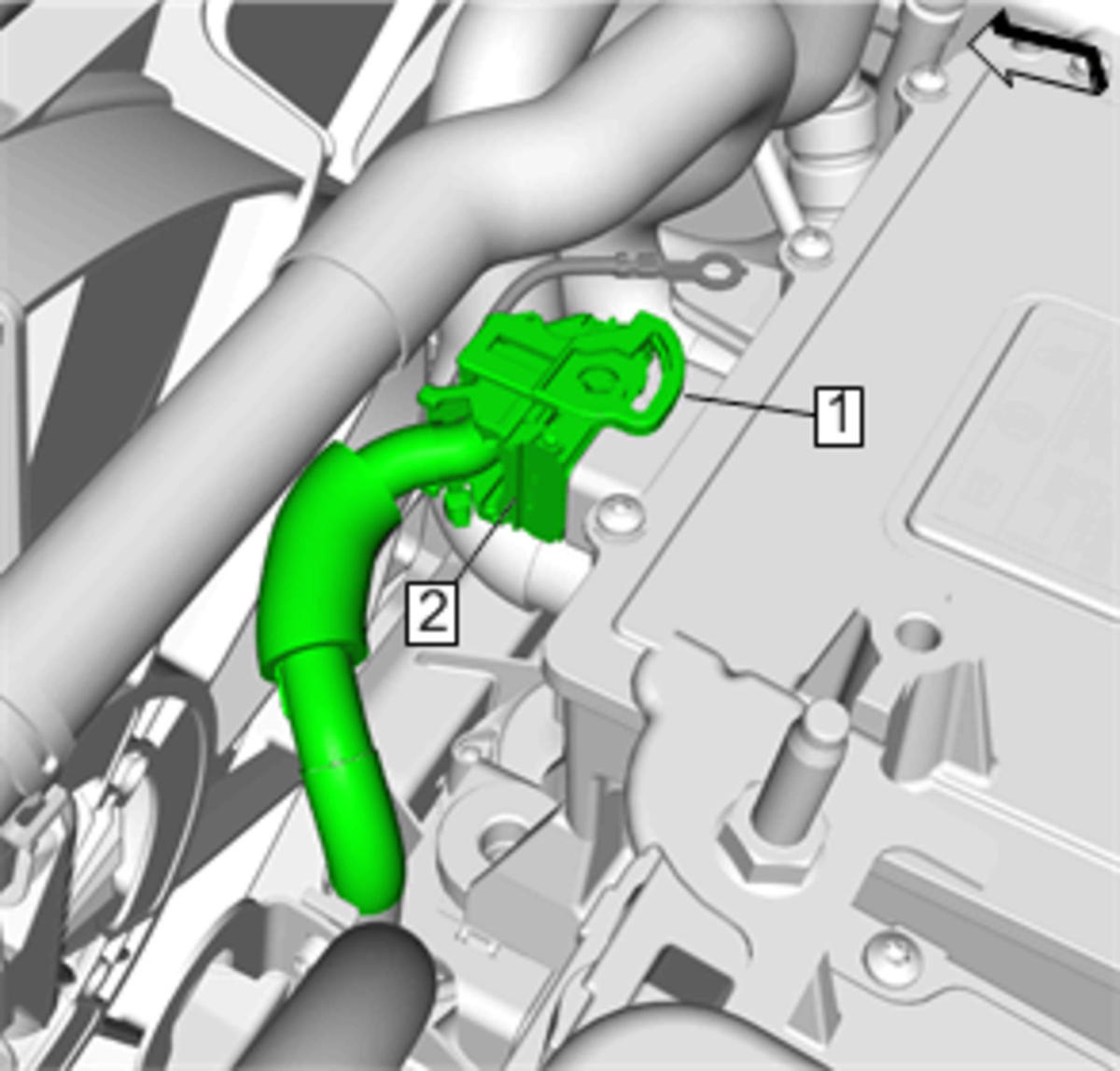

    13. Fig 5: Engine Wiring Harness Connector And Handle
    GM4529668Courtesy of GENERAL MOTORS COMPANY
  13. Install Engine Wiring Harness Connector (2).
  14. Lock the handle (1) into lock position.

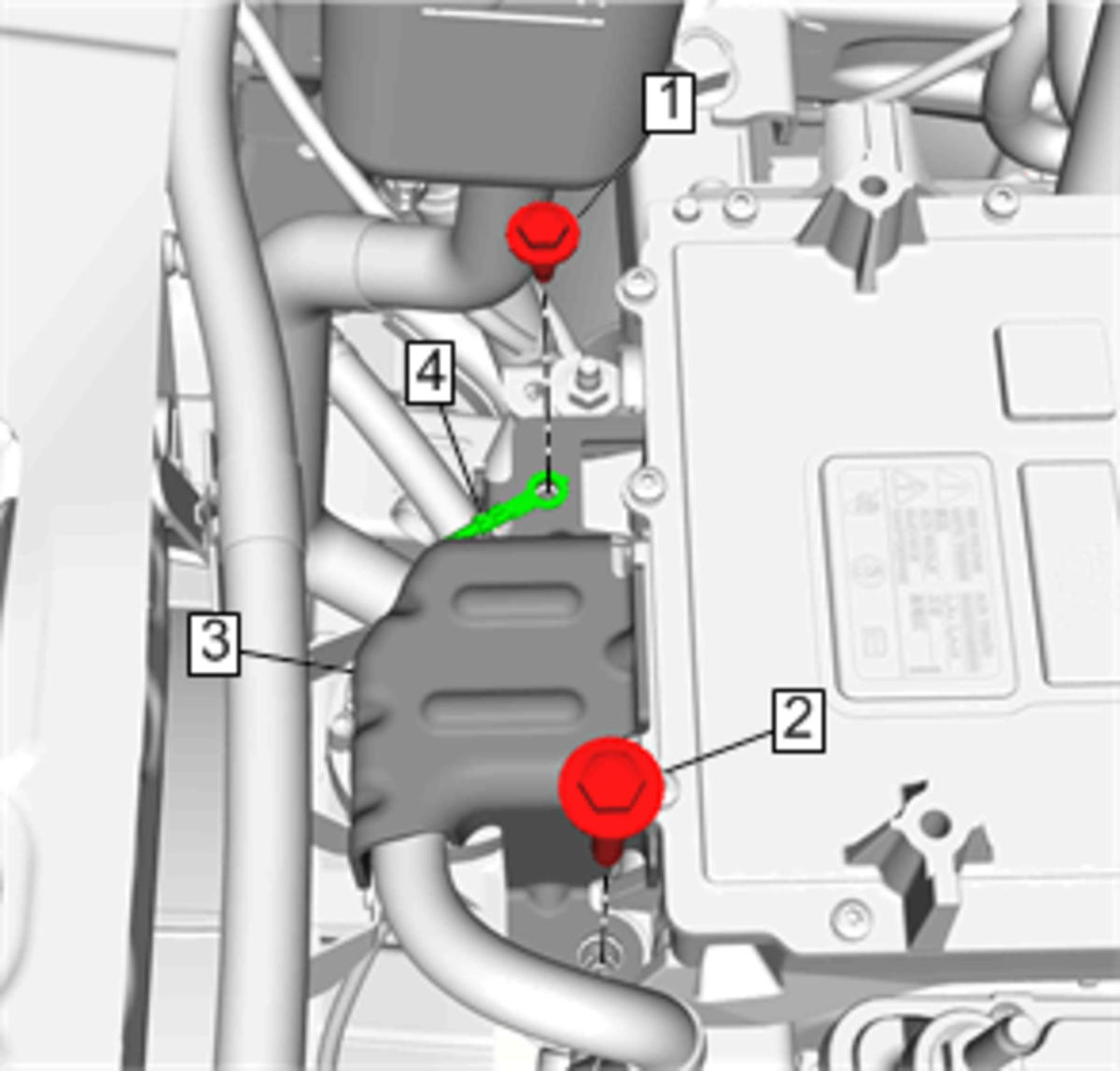

    15. Fig 6: Drive Motor Power Inverter Module Shield, Bolts And Ground Cable
    GM4529667Courtesy of GENERAL MOTORS COMPANY
  15. Install Drive Motor Power Inverter Module Shield (3)
  16. Install Ground Cable (4)
  17. Install Drive Motor Power Inverter Module Shield Bolt (1) and tighten to 9 N.m (80 lb in)
  18. Install Drive Motor Power Inverter Module Shield Bolt (2) and tighten to 25 N.m (18 lb ft)

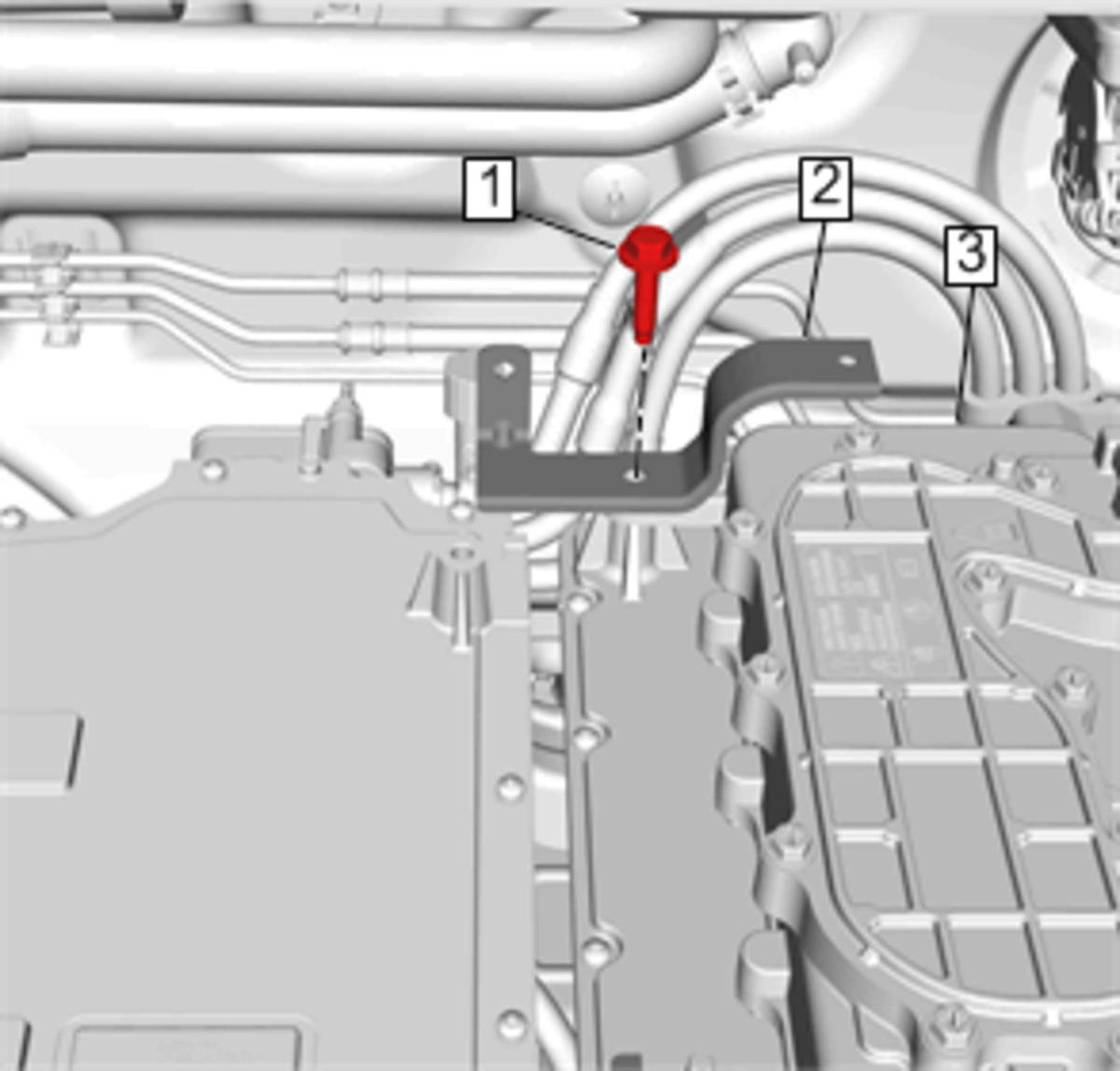

    19. Fig 7: Engine Wiring Harness Bracket, Bolt And Accessory DC Power Control Module
    GM4529666Courtesy of GENERAL MOTORS COMPANY
  19. Install Engine Wiring Harness Bracket (2) @ Accessory DC Power Control Module (3)
  20. Install Engine Wiring Harness Bracket Bolt (1) @ Accessory DC Power Control Module (3) and tighten to 22 N.m (16 lb ft)
  21. Install High Voltage Battery Control Wiring Junction Block. Refer to High Voltage Battery Control Wiring Junction Block Replacement (With quick charge) High Voltage Battery Control Wiring Junction Block Replacement (Without quick charge)
  22. Install Radiator Surge Tank Support Bracket (RESS). Refer to Radiator Surge Tank Support Bracket Replacement (Radiator)Radiator Surge Tank Support Bracket Replacement (Heater)Radiator Surge Tank Support Bracket Replacement (RESS)
  23. Fill the drive motor generator power inverter module cooling system. Refer to Drive Motor Generator Power Inverter Module Cooling System Draining and Filling
  24. Enable the high voltage system. Refer to High Voltage Enabling
  25. Program the Drive Motor Power Inverter Module. Refer to Control Module References
