Front View Camera Replacement

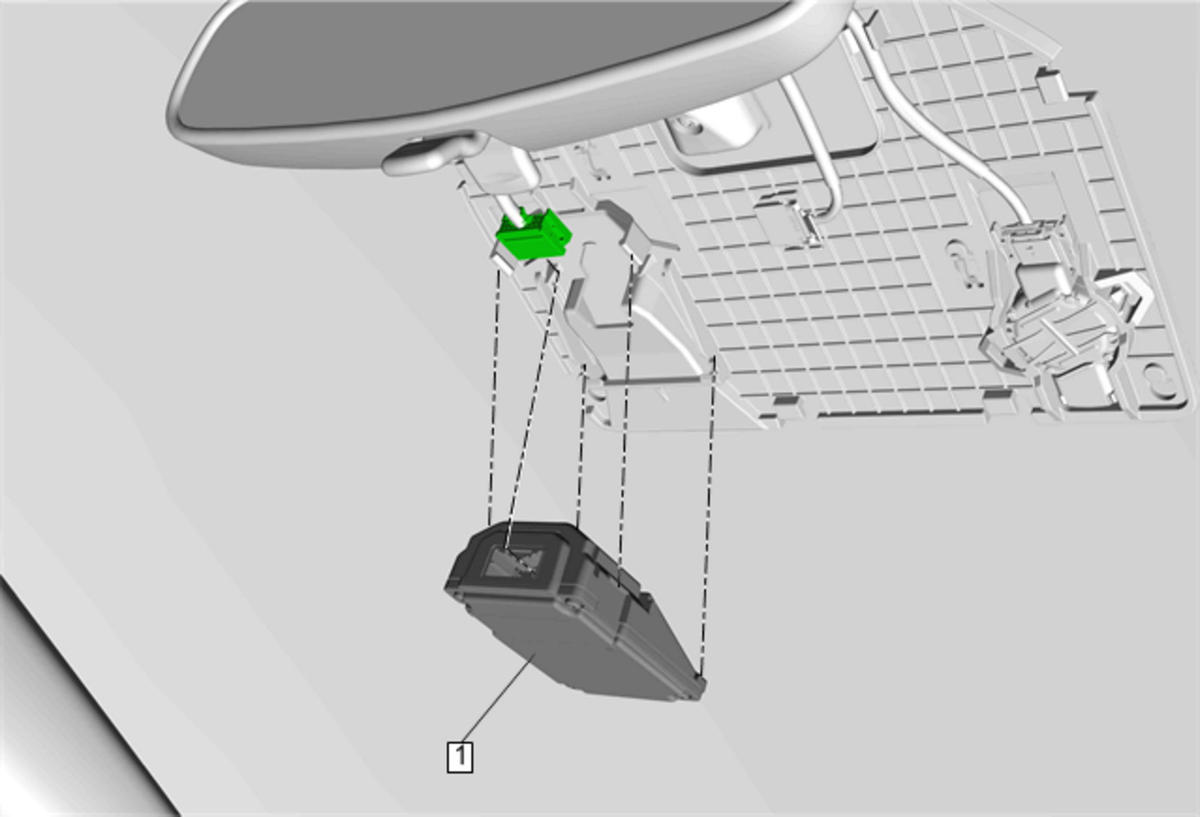

Fig 1: Front View Camera

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Windshield Multifunction Sensor Mount Bracket Cover (with Front View Camera). Refer to Windshield Multifunction Sensor Mount Bracket Cover Replacement (with Front View Camera)
1	Front View Camera Procedure Gently release the retaining tabs on bracket. Disconnect the electrical connector. Perform all necessary programming and setup procedures for the control module. Refer to Control Module References

Callout

Component Name

Preliminary Procedure
Remove Windshield Multifunction Sensor Mount Bracket Cover (with Front View Camera). Refer to Windshield Multifunction Sensor Mount Bracket Cover Replacement (with Front View Camera)

Front View Camera

Procedure

Gently release the retaining tabs on bracket.
Disconnect the electrical connector.
Perform all necessary programming and setup procedures for the control module. Refer to Control Module References
