Front View Driver Information Camera Replacement

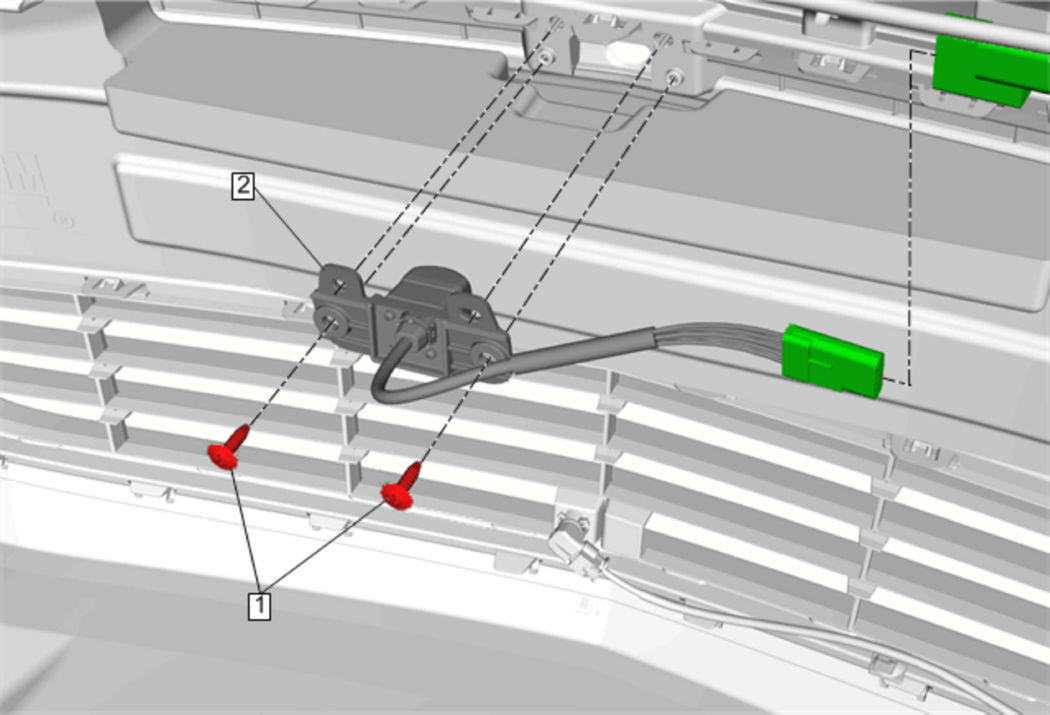

Fig 1: Front View Driver Information Camera

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove Front Bumper Fascia. Refer to Front Bumper Fascia Replacement (North America)Front Bumper Fascia Replacement (Europe, Korea)
1	Front View Driver Information Camera Fastener (Qty: 2) CAUTION: Refer to Fastener Caution Tighten  2.5 N.m (22 lb in)
2	Front View Driver Information Camera Procedure  Disconnect the electrical connector.
