Multifunction Relay Module Bracket Replacement (with Front View Camera)

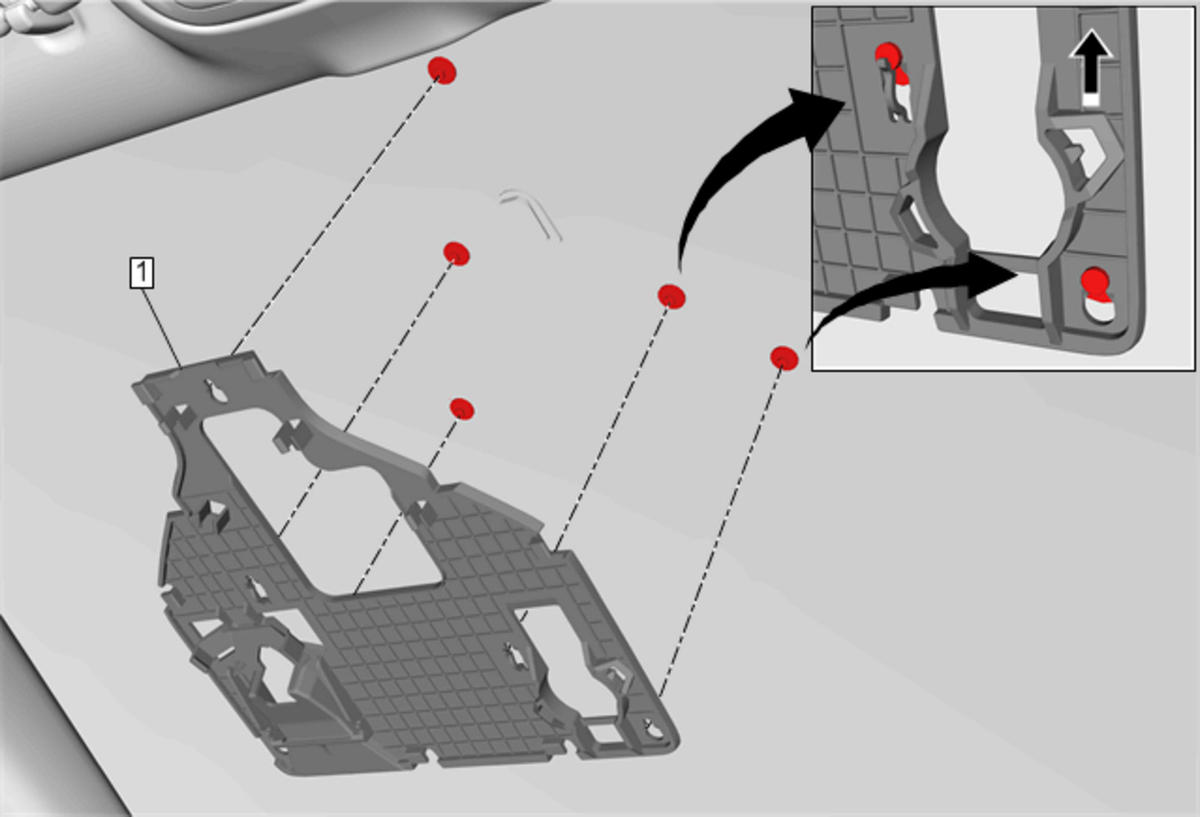

Fig 1: Multifunction Relay Module Bracket (With Front View Camera)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Front View Camera. Refer to Front View Camera Replacement Remove Inside Air Moisture and Windshield Temperature Sensor (With Front View Camera). Refer to Inside Air Moisture and Windshield Temperature Sensor Replacement (With Front View Camera) Remove Inside Rearview Mirror. Refer to Inside Rearview Mirror Replacement
1	Multifunction Relay Module Bracket Procedure Slide the bracket upward to disengage tabs, gently pull from windshield.

Callout

Component Name

Preliminary Procedure

Remove Front View Camera. Refer to Front View Camera Replacement
Remove Inside Air Moisture and Windshield Temperature Sensor (With Front View Camera). Refer to Inside Air Moisture and Windshield Temperature Sensor Replacement (With Front View Camera)
Remove Inside Rearview Mirror. Refer to Inside Rearview Mirror Replacement

Multifunction Relay Module Bracket
Procedure
Slide the bracket upward to disengage tabs, gently pull from windshield.
