Multifunction Relay Module Bracket Replacement (without Front View Camera)

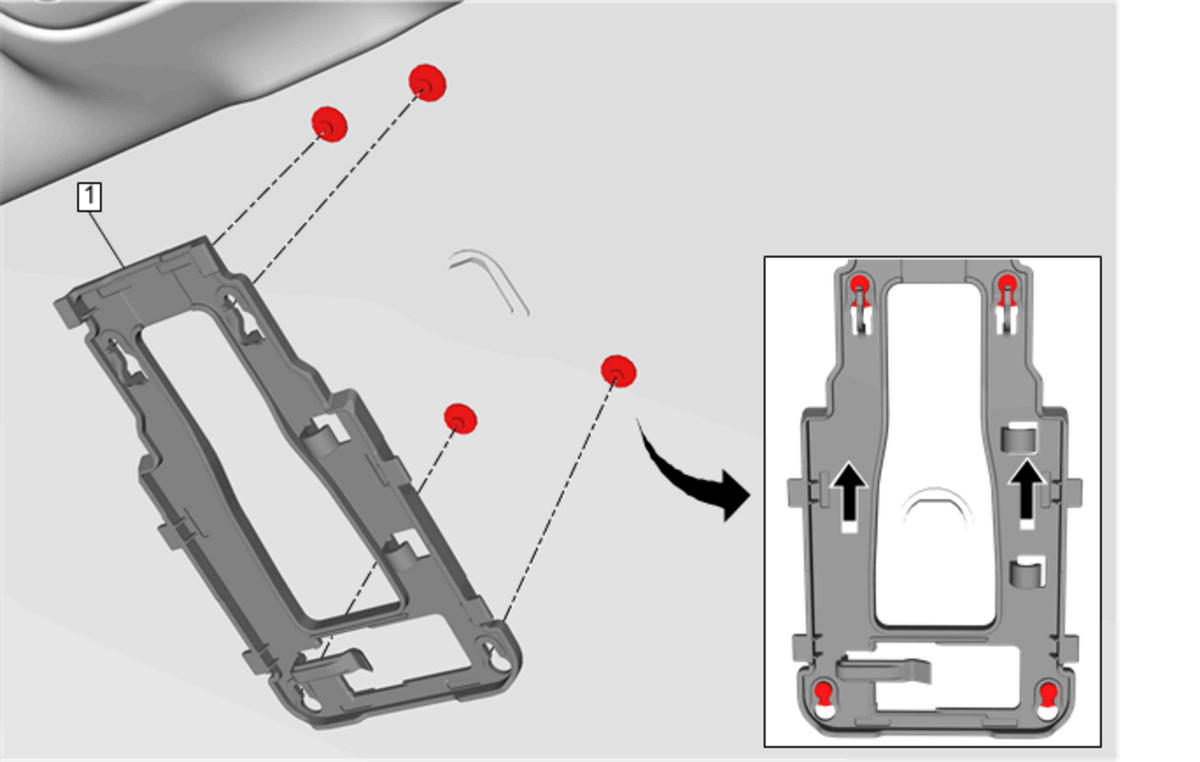

Fig 1: Multifunction Relay Module Bracket (Without Front View Camera)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Inside Air Moisture and Windshield Temperature Sensor (Without Front View Camera). Refer to Inside Air Moisture and Windshield Temperature Sensor Replacement (Without Front View Camera) Remove Inside Rearview Mirror. Refer to Inside Rearview Mirror Replacement
1	Multifunction Relay Module Bracket Procedure Unclip wiring as necessary. Slide the bracket upward to disengage tabs, gently pull from windshield. NOTE: Releasing the bracket is restricted by headliner. The bracket must be forced into the headliner and then released.

Callout

Component Name

Preliminary Procedure

Remove Inside Air Moisture and Windshield Temperature Sensor (Without Front View Camera). Refer to Inside Air Moisture and Windshield Temperature Sensor Replacement (Without Front View Camera)
Remove Inside Rearview Mirror. Refer to Inside Rearview Mirror Replacement

Multifunction Relay Module Bracket

Procedure

NOTE:

Releasing the bracket is restricted by headliner. The bracket must be forced into the headliner and then released.
