Front Side Door Window Control Switch Replacement

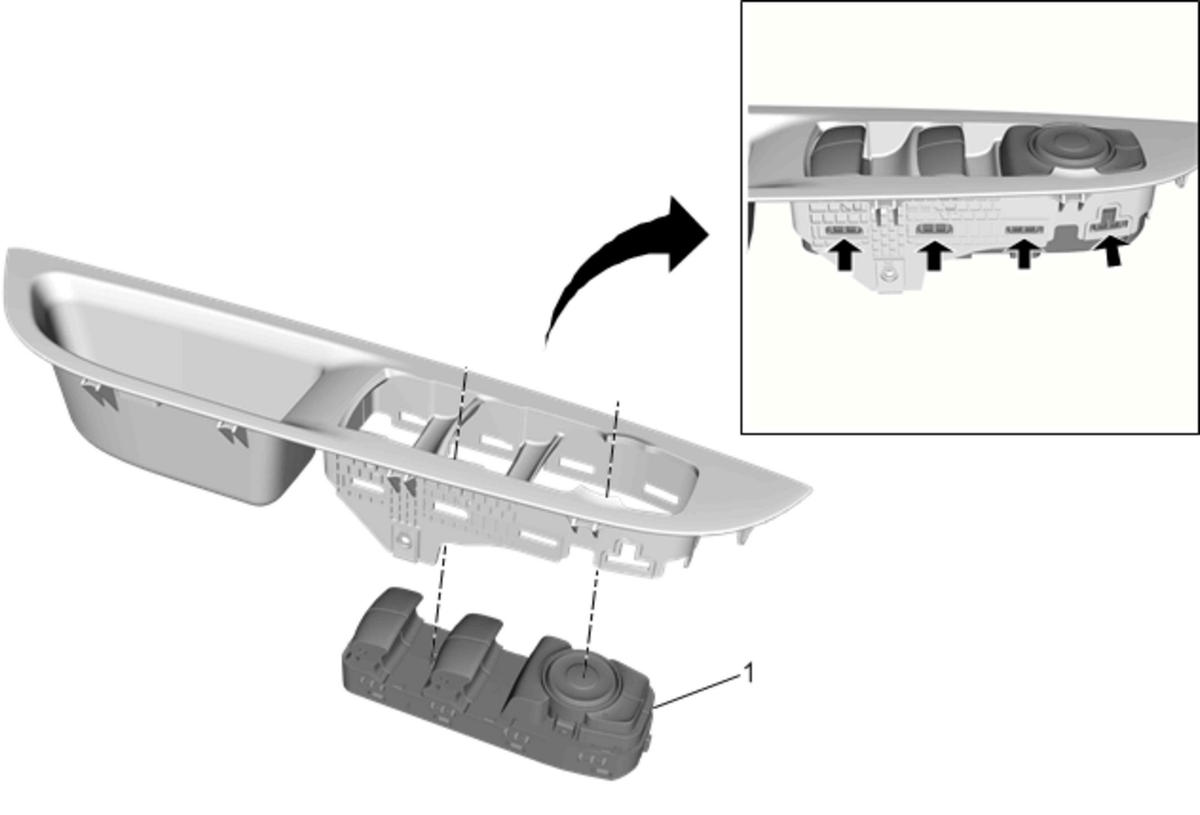

Fig 1: Front Side Door Window Control Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Side Door Armrest Switch Mount Plate Replacement
1	Front Side Door Window Control Switch Procedure Remove the J-nut from the mount plate. Release the switch from the switch mount plate by depressing the tabs along each side of the switch.

Callout

Component Name

Front Side Door Window Control Switch

Procedure

Remove the J-nut from the mount plate.
Release the switch from the switch mount plate by depressing the tabs along each side of the switch.
