Installation Procedure

  1. Rear Window - Install - Adhesive Installation of Rear Windows
  2. Connect the rear window grid electrical connectors.

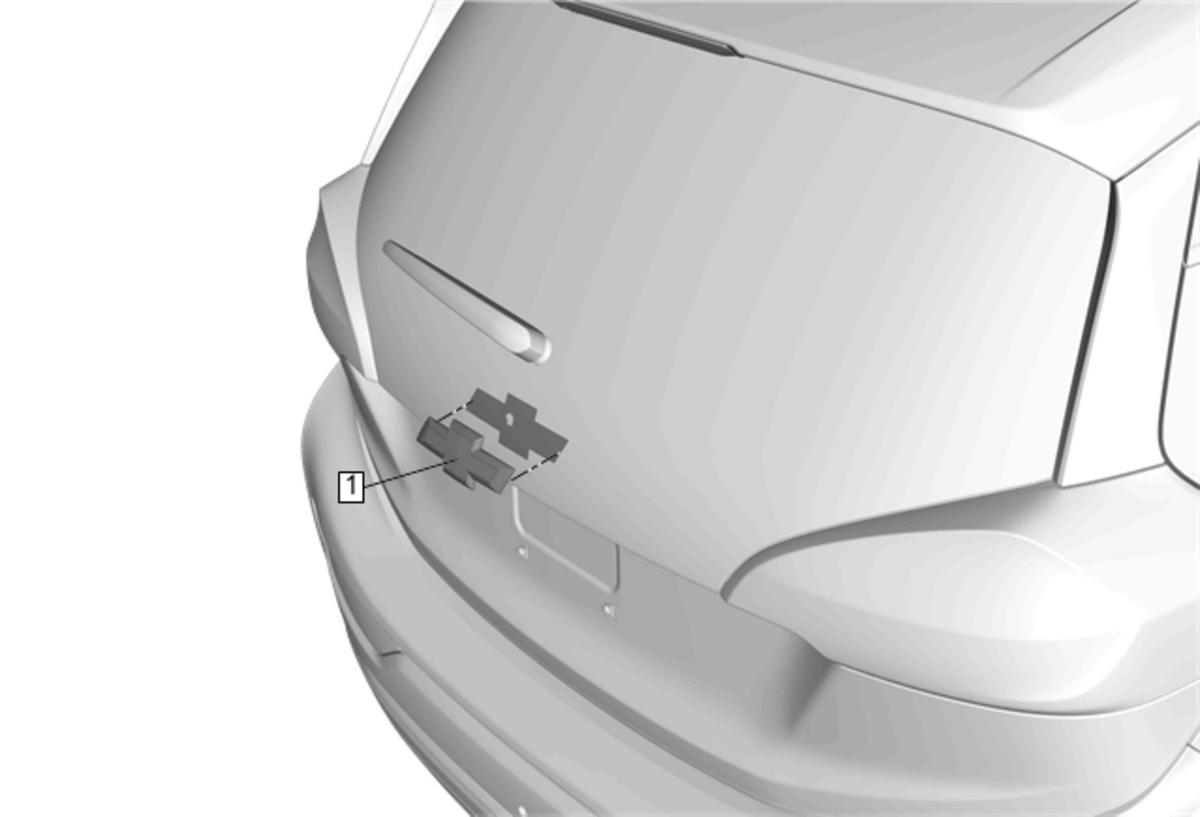

    3. Fig 1: Liftgate Emblem/Nameplate (Emblem)
    GM4550679Courtesy of GENERAL MOTORS COMPANY
  3. Liftgate Emblem/Nameplate - Install -

    Liftgate Emblem/Nameplate Replacement (Emblem)Liftgate Emblem/Nameplate Replacement (Nameplate)

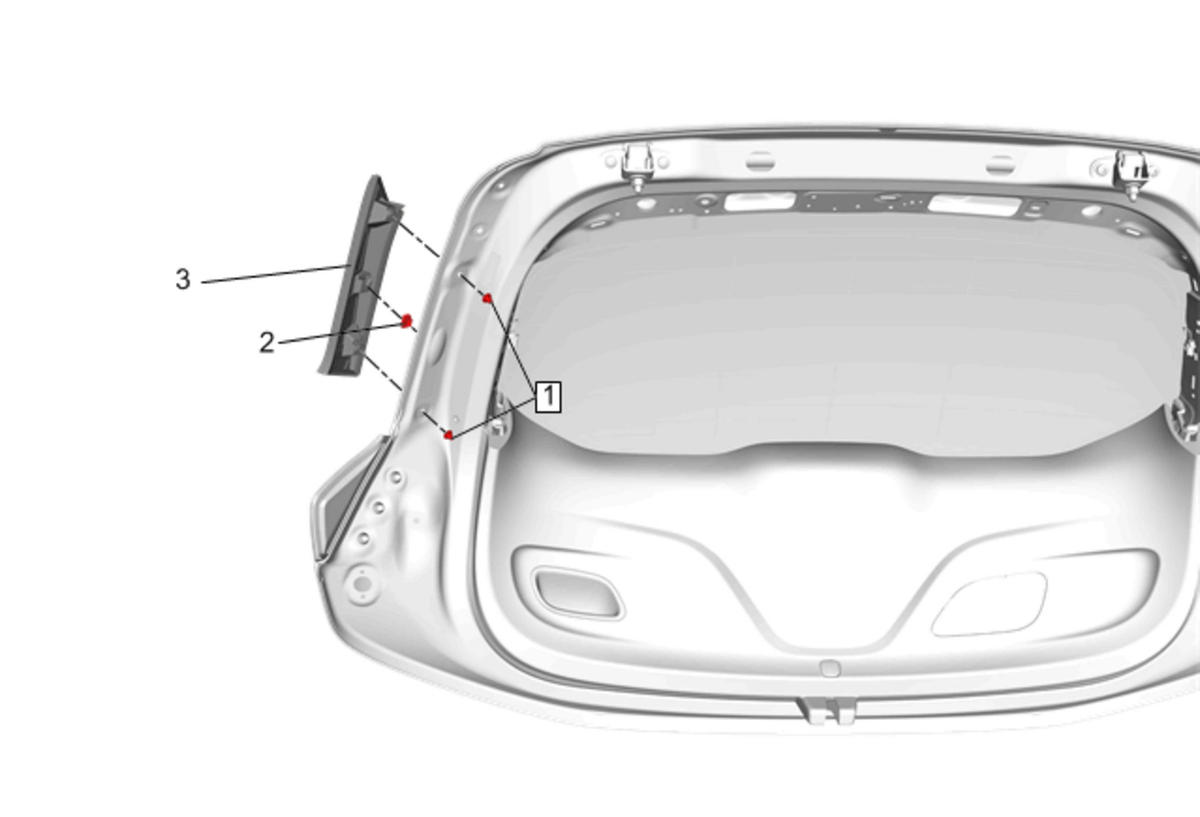

    4. Fig 2: Body Side Upper Rear Applique
    GM4551495Courtesy of GENERAL MOTORS COMPANY
  4. Body Side Upper Rear Applique - Install - Body Side Upper Rear Applique Replacement

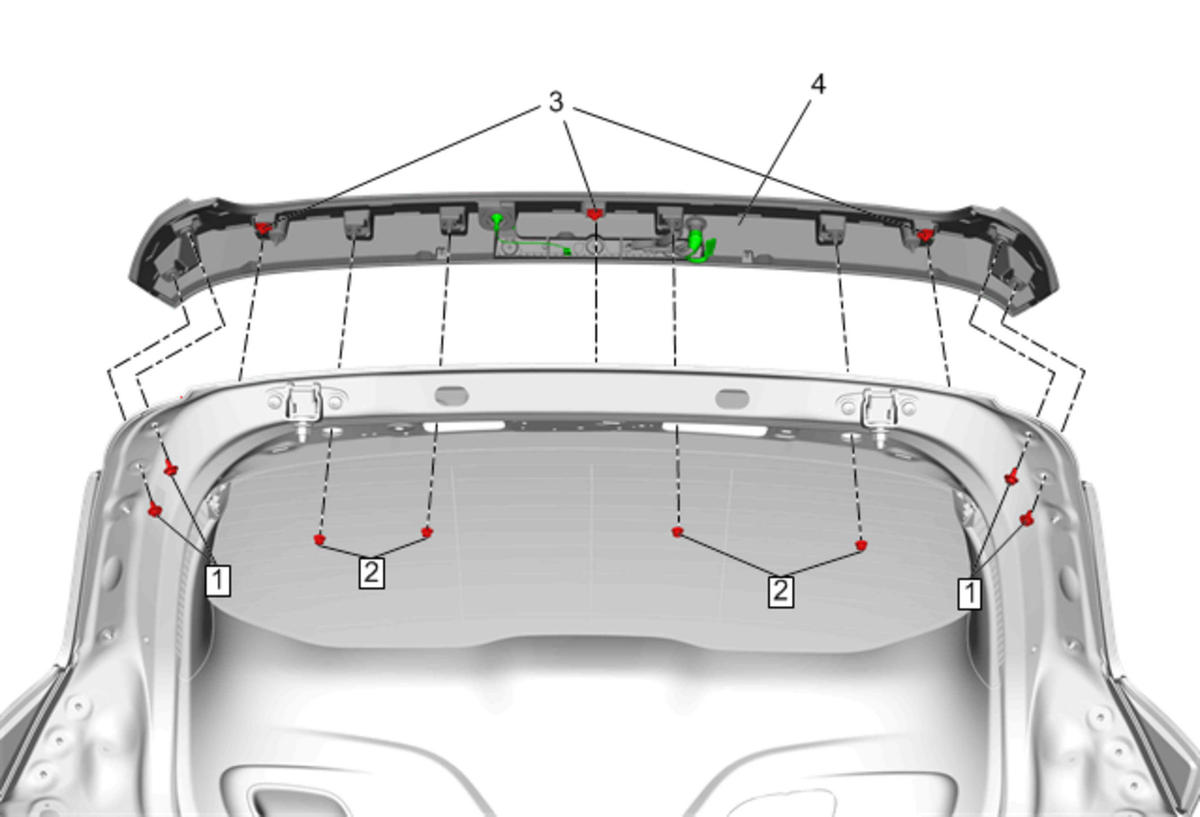

    5. Fig 3: Rear End Spoiler
    GM4551499Courtesy of GENERAL MOTORS COMPANY
  5. Rear End Spoiler - Install - Rear End Spoiler Replacement

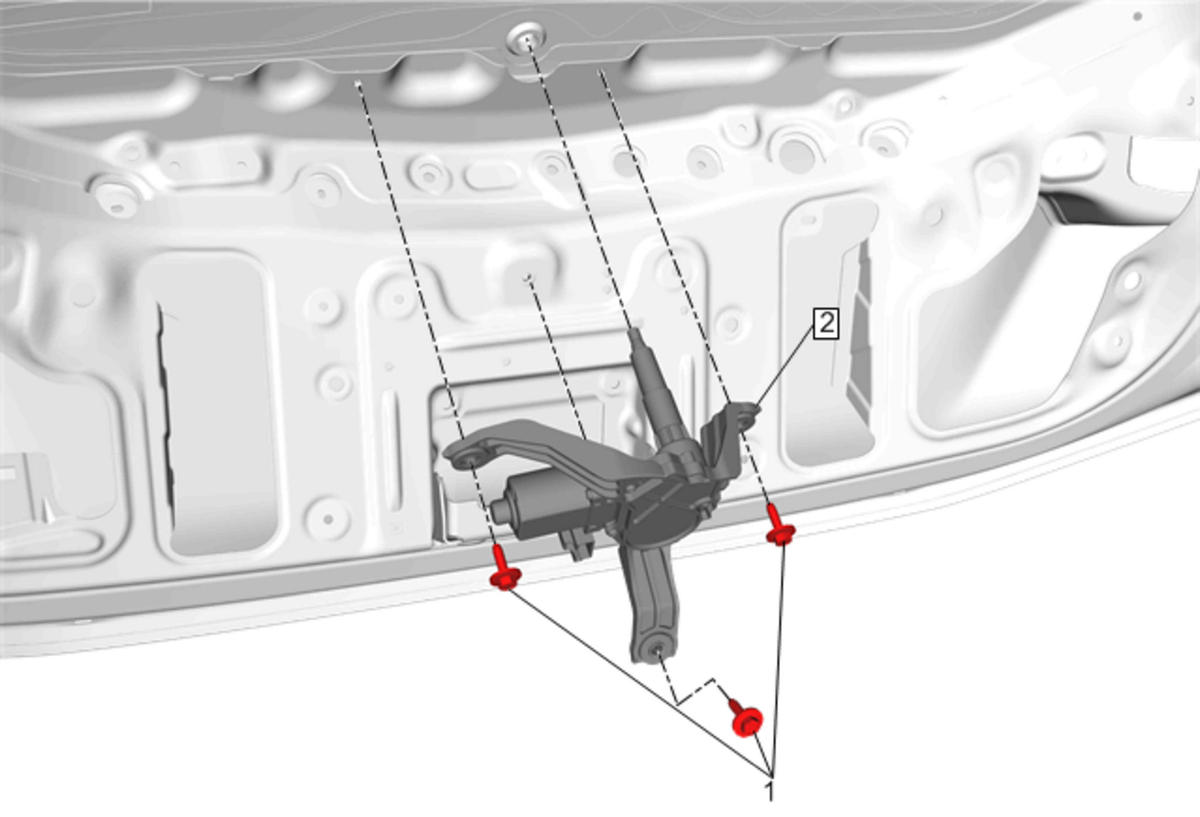

    6. Fig 4: Rear Window Wiper Motor
    GM4534847Courtesy of GENERAL MOTORS COMPANY
  6. Rear Window Wiper Motor - Install - Rear Window Wiper Motor Replacement
  7. Battery Negative Cable - Connect - Battery Negative Cable Disconnection and Connection
  8. Rear compartment lid - Close
  9. Double layer of masking tape around the perimeter of the painted surfaces and the interior trim - Remove
