Installation Procedure

  1. Windshield - Install - Adhesive Installation of Windshields
    2. Fig 1: Multifunction Relay Module Bracket (With Front View Camera)
    GM4534922Courtesy of GENERAL MOTORS COMPANY
  2. Multifunction Relay Module Bracket - Install - Multifunction Relay Module Bracket Replacement (with Front View Camera)Multifunction Relay Module Bracket Replacement (without Front View Camera)

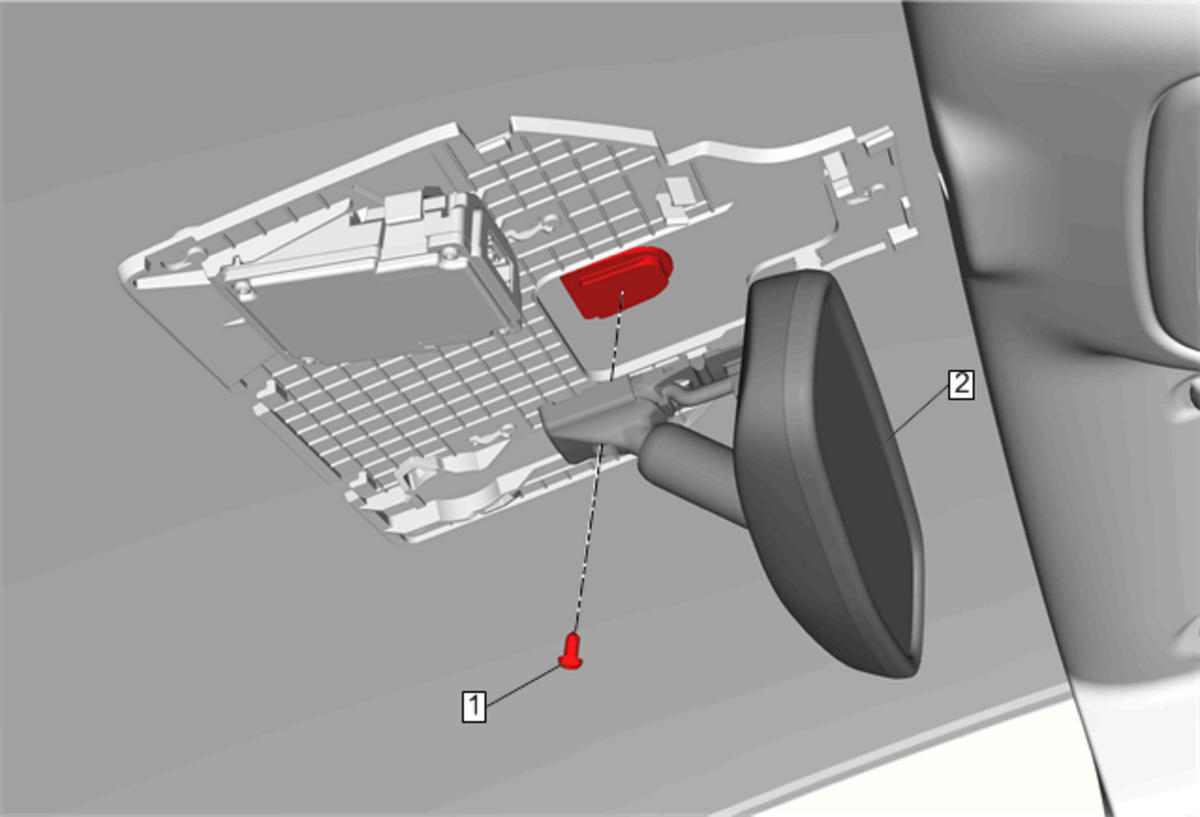

    3. Fig 2: Inside Rearview Mirror
    GM4533894Courtesy of GENERAL MOTORS COMPANY
  3. Inside Rearview Mirror - Install - Inside Rearview Mirror Replacement

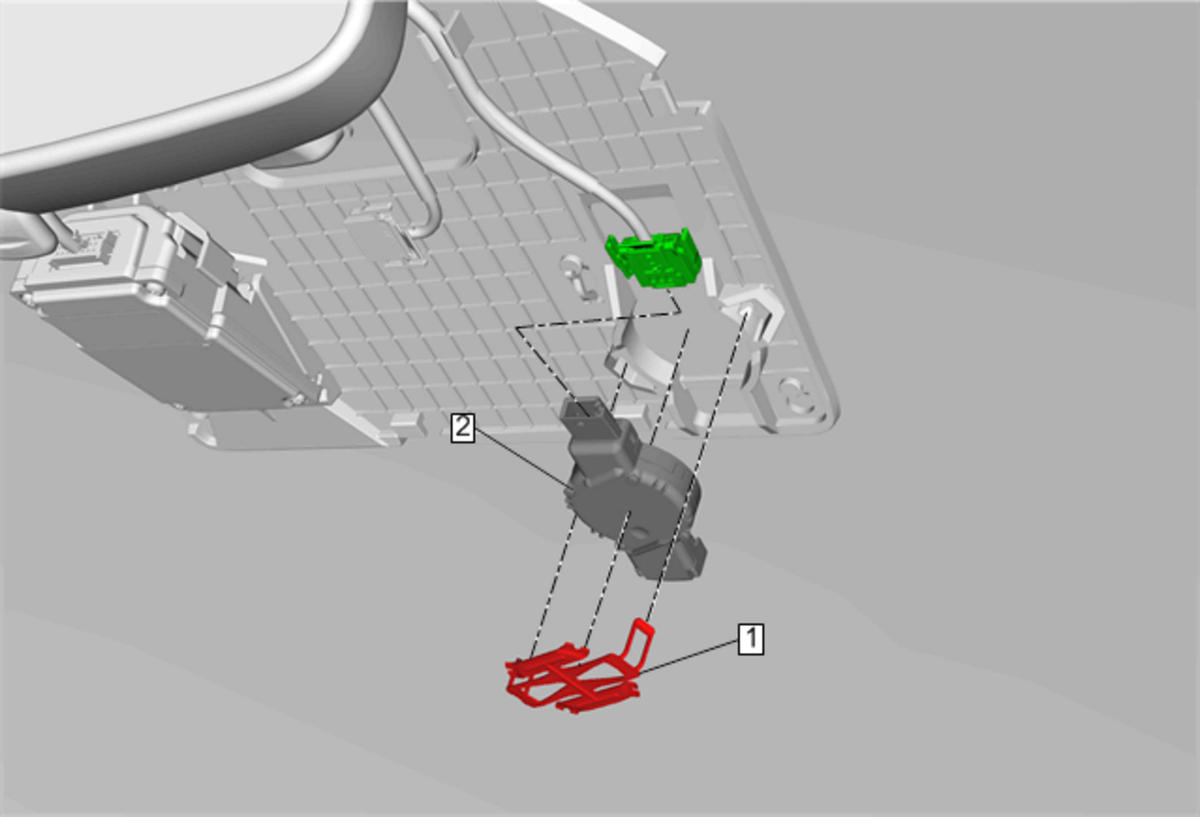

    4. Fig 3: Windshield Outside Moisture/Ambient Light and Humidity Sensor
    GM4534875Courtesy of GENERAL MOTORS COMPANY
  4. Windshield Outside Moisture/Ambient Light and Humidity Sensor - Install - Inside Air Moisture and Windshield Temperature Sensor Replacement (With Front View Camera)Inside Air Moisture and Windshield Temperature Sensor Replacement (Without Front View Camera)
    5. Fig 4: Front View Camera
    GM4534915Courtesy of GENERAL MOTORS COMPANY
  5. { If equipped } Front View Camera - Install - Front View Camera Replacement

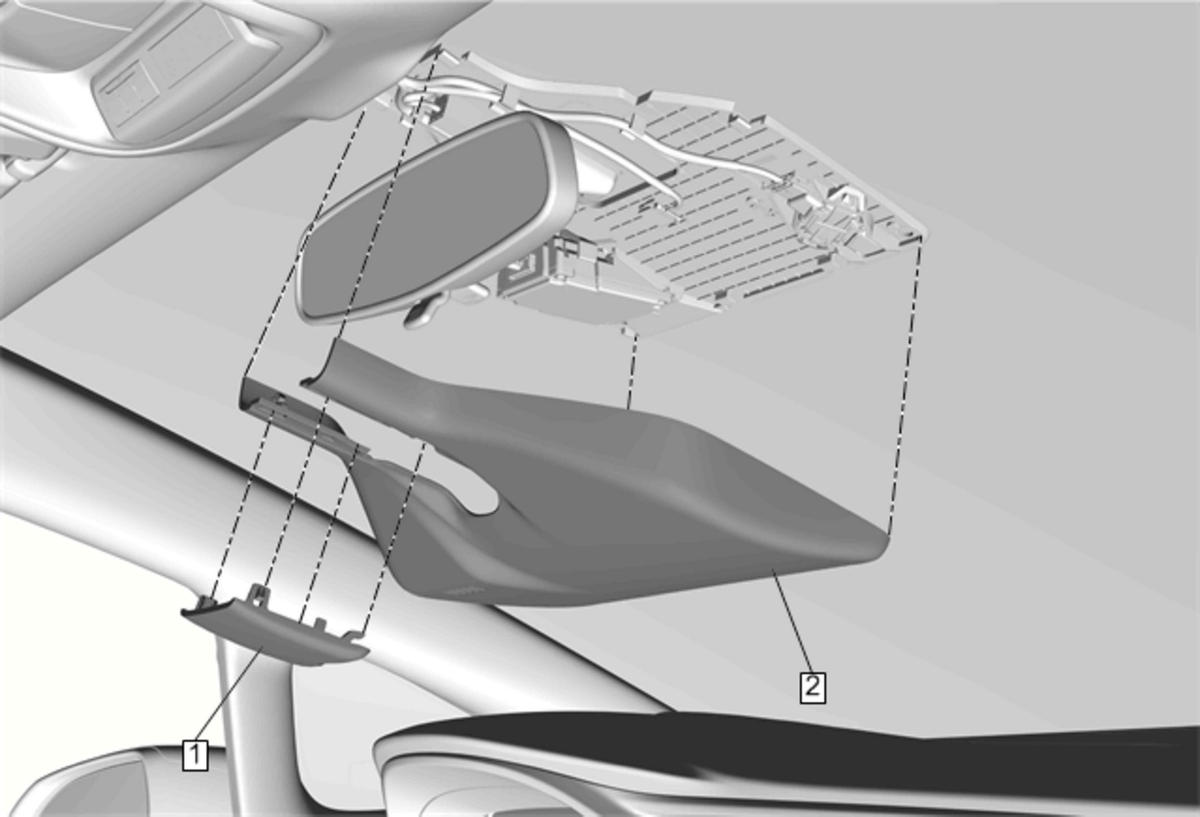

    6. Fig 5: Windshield Multifunction Sensor Mount Bracket Cover
    GM4534877Courtesy of GENERAL MOTORS COMPANY
  6. Windshield Multifunction Sensor Mount Bracket Cover - Install - Windshield Multifunction Sensor Mount Bracket Cover Replacement (with Front View Camera)Windshield Multifunction Sensor Mount Bracket Cover Replacement (without Front View Camera)

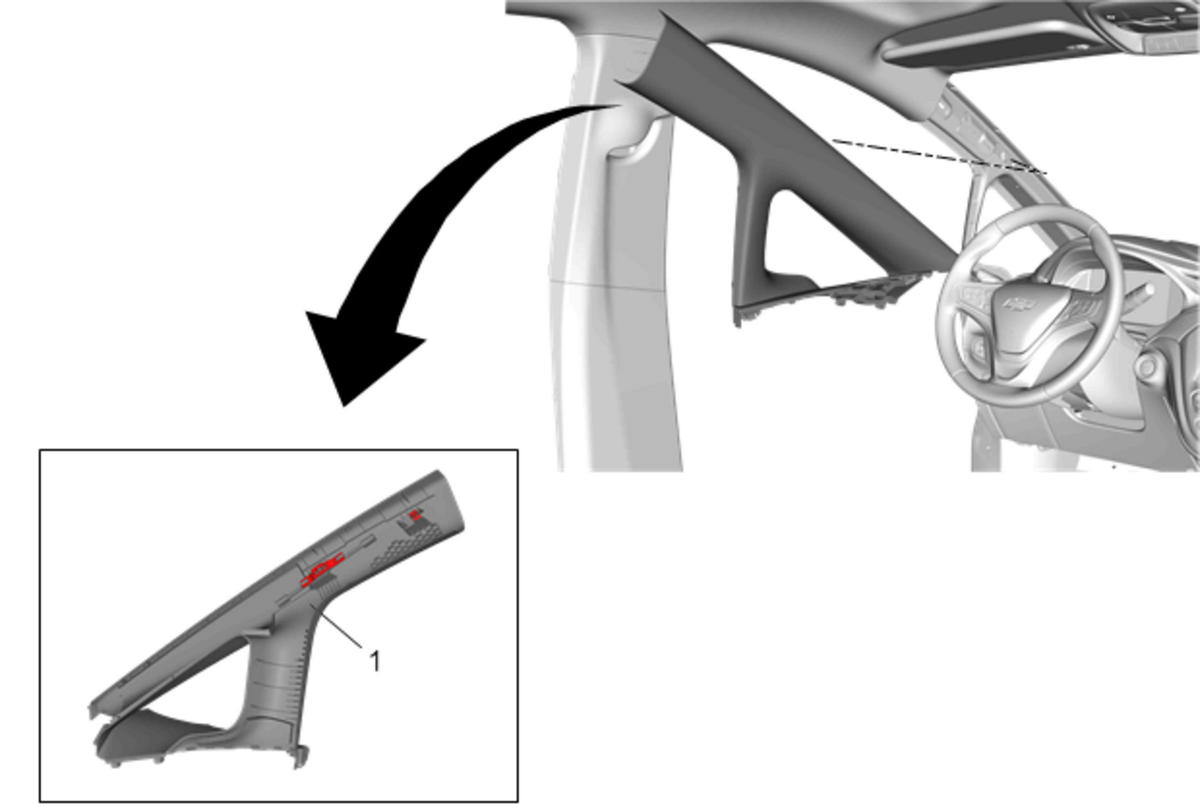

    7. Fig 6: Windshield Garnish Molding
    GM4542621Courtesy of GENERAL MOTORS COMPANY
  7. Windshield Garnish Molding - Install - Windshield Garnish Molding Replacement

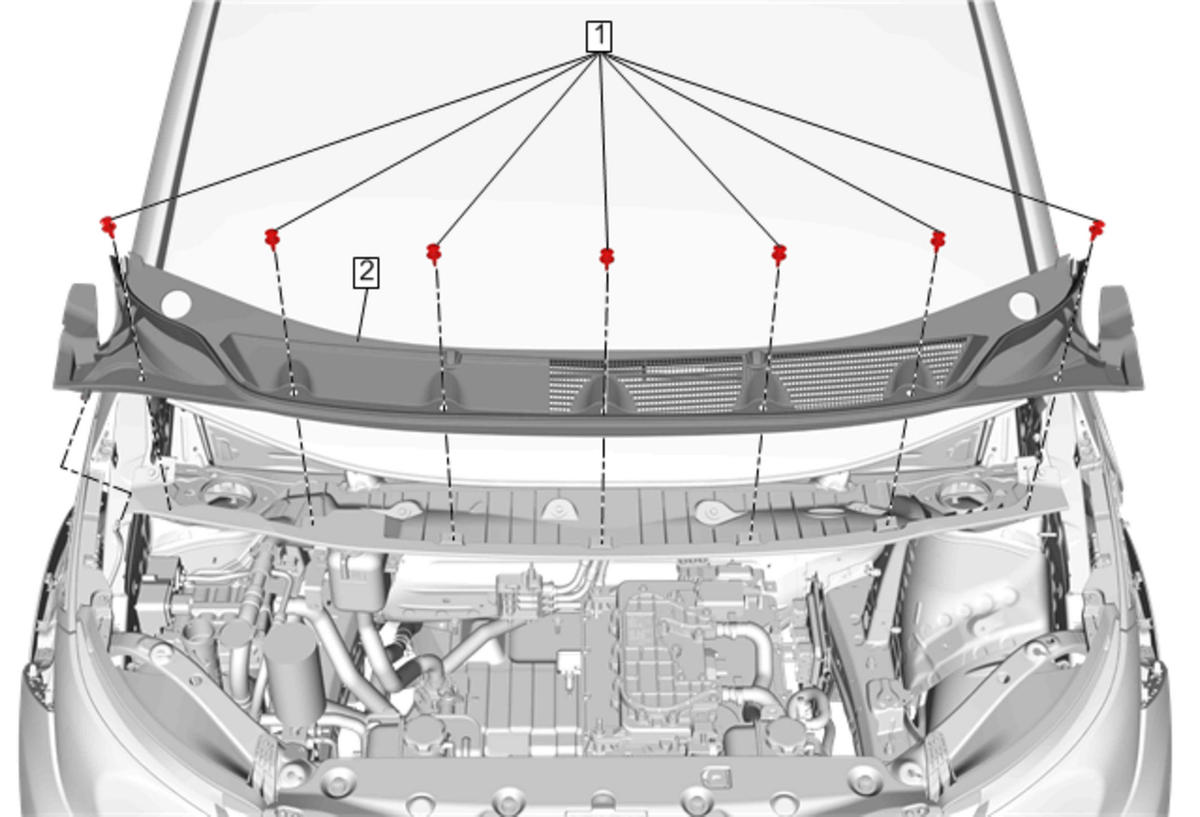

    8. Fig 7: Air Inlet Grille Panel
    GM4534839Courtesy of GENERAL MOTORS COMPANY
  8. Air Inlet Grille Panel - Install - Air Inlet Grille Panel Replacement .
  9. Battery Negative Cable - Connect - Battery Negative Cable Disconnection and Connection
  10. Close the hood.
  11. Remove the double layer of masking tape around the perimeter of the painted surfaces.
