Removal Procedure

    NOTE:

    Before cutting out a stationary window, apply a double layer of masking tape around the perimeter of the painted surfaces and the interior trim.

  1. Open the hood.
  2. Battery Negative Cable - Disconnect - Battery Negative Cable Disconnection and Connection
    3. Fig 1: Air Inlet Grille Panel
    GM4534839Courtesy of GENERAL MOTORS COMPANY
  3. Air Inlet Grille Panel - Remove - Air Inlet Grille Panel Replacement
    4. Fig 2: Windshield Garnish Molding
    GM4542621Courtesy of GENERAL MOTORS COMPANY
  4. Windshield Garnish Molding - Remove - Windshield Garnish Molding Replacement
    5. Fig 3: Windshield Multifunction Sensor Mount Bracket Cover
    GM4534877Courtesy of GENERAL MOTORS COMPANY
  5. Windshield Multifunction Sensor Mount Bracket Cover - Remove - Windshield Multifunction Sensor Mount Bracket Cover Replacement (with Front View Camera)Windshield Multifunction Sensor Mount Bracket Cover Replacement (without Front View Camera)
    6. Fig 4: Front View Camera
    GM4534915Courtesy of GENERAL MOTORS COMPANY
  6. { If equipped } Front View Camera - Remove - Front View Camera Replacement
    7. Fig 5: Inside Air Moisture and Windshield Temperature Sensor
    GM4534875Courtesy of GENERAL MOTORS COMPANY
  7. { If equipped } Inside Air Moisture and Windshield Temperature Sensor - Remove - Inside Air Moisture and Windshield Temperature Sensor Replacement (With Front View Camera)Inside Air Moisture and Windshield Temperature Sensor Replacement (Without Front View Camera)
    8. Fig 6: Inside Rearview Mirror
    GM4533894Courtesy of GENERAL MOTORS COMPANY
  8. Inside Rearview Mirror - Remove - Inside Rearview Mirror Replacement
    9. Fig 7: Multifunction Relay Module Bracket (With Front View Camera)
    GM4534922Courtesy of GENERAL MOTORS COMPANY
  9. Multifunction Relay Module Bracket - Remove - Multifunction Relay Module Bracket Replacement (with Front View Camera)Multifunction Relay Module Bracket Replacement (without Front View Camera)
    10. WARNING:

    If broken glass falls into the defroster outlets, it can be blown into the passenger compartment and cause personal injury.

  10. Cover to protect the following parts from broken glass:
    • Upper Dash Pad
    • The defroster outlets and A/C outlets
    • The seats and carpeting
  11. Remove the lower windshield supports from the cowl panel, if equipped.
    12. Fig 8: Using Utility Knife To Remove Reveal Molding
    GM379905Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    When working with any type of glass or sheet metal with exposed or rough edges, wear approved safety glasses and gloves in order to reduce the chance of personal injury.

  12. Using the appropriate tool, carefully cut around the lace (1), start in the center working from side to side of the window to access the urethane adhesive bead, if equipped.
    13. Fig 9: Separating Urethane Adhesive From Window
    GM71179Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Keep the cutting edge of the tool against the window.

  13. This will allow the urethane adhesive to be separated from the windshield.
    • Leave a base of urethane on the pinchweld flange.
    • The only suitable lubrication is clear water.
    • BO-24402-A  Glass Sealant Remover (Cold Knife).
    • BO-39032  Stationary Glass Removal Tool, or equivalent in order to remove the window.

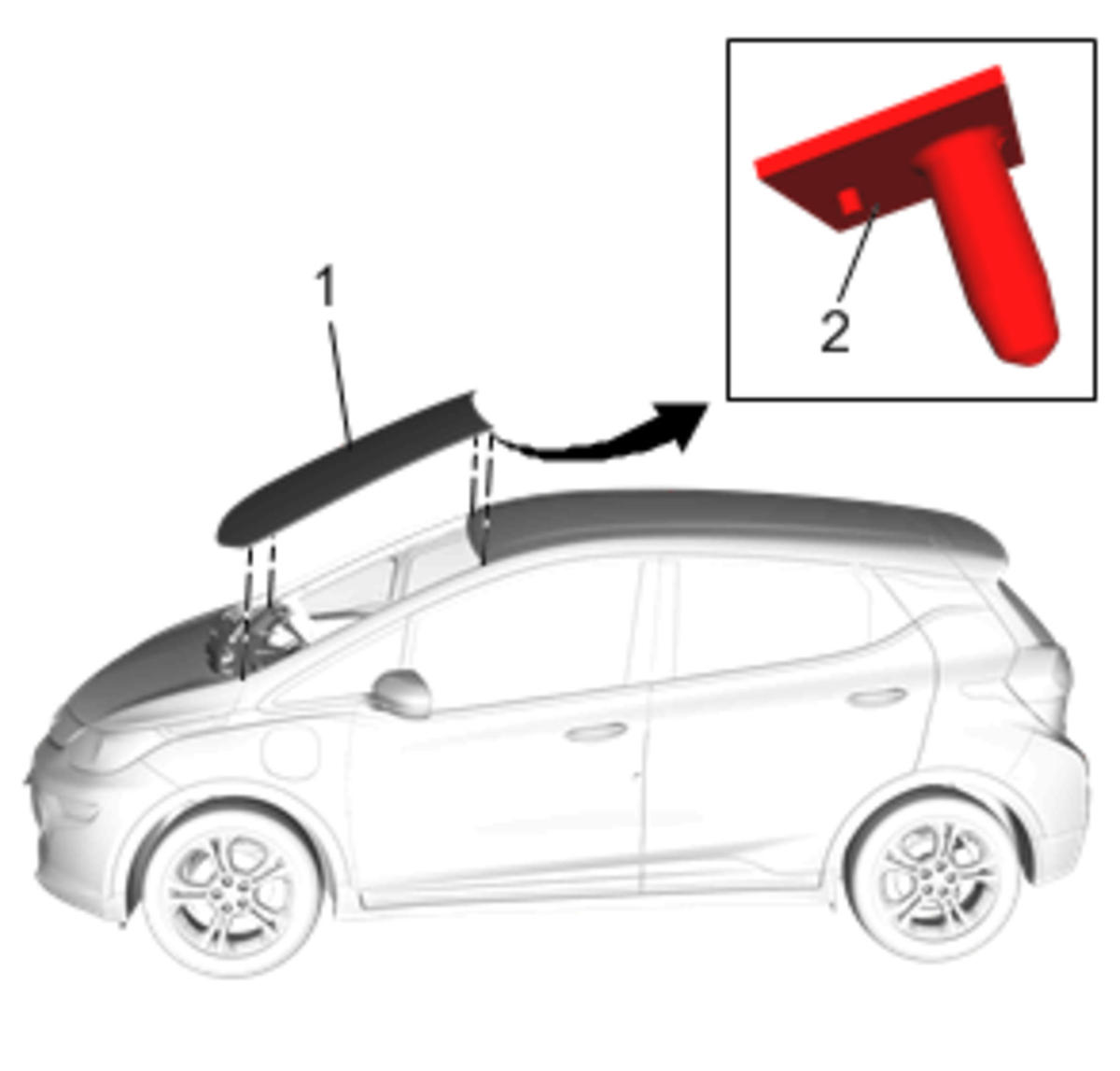

    14. Fig 10: Windshield And Locating Pin
    GM4621652Courtesy of GENERAL MOTORS COMPANY
  14. With the aid of an assistant, remove the windshield and locating pin from the vehicle.
