Installation Procedure

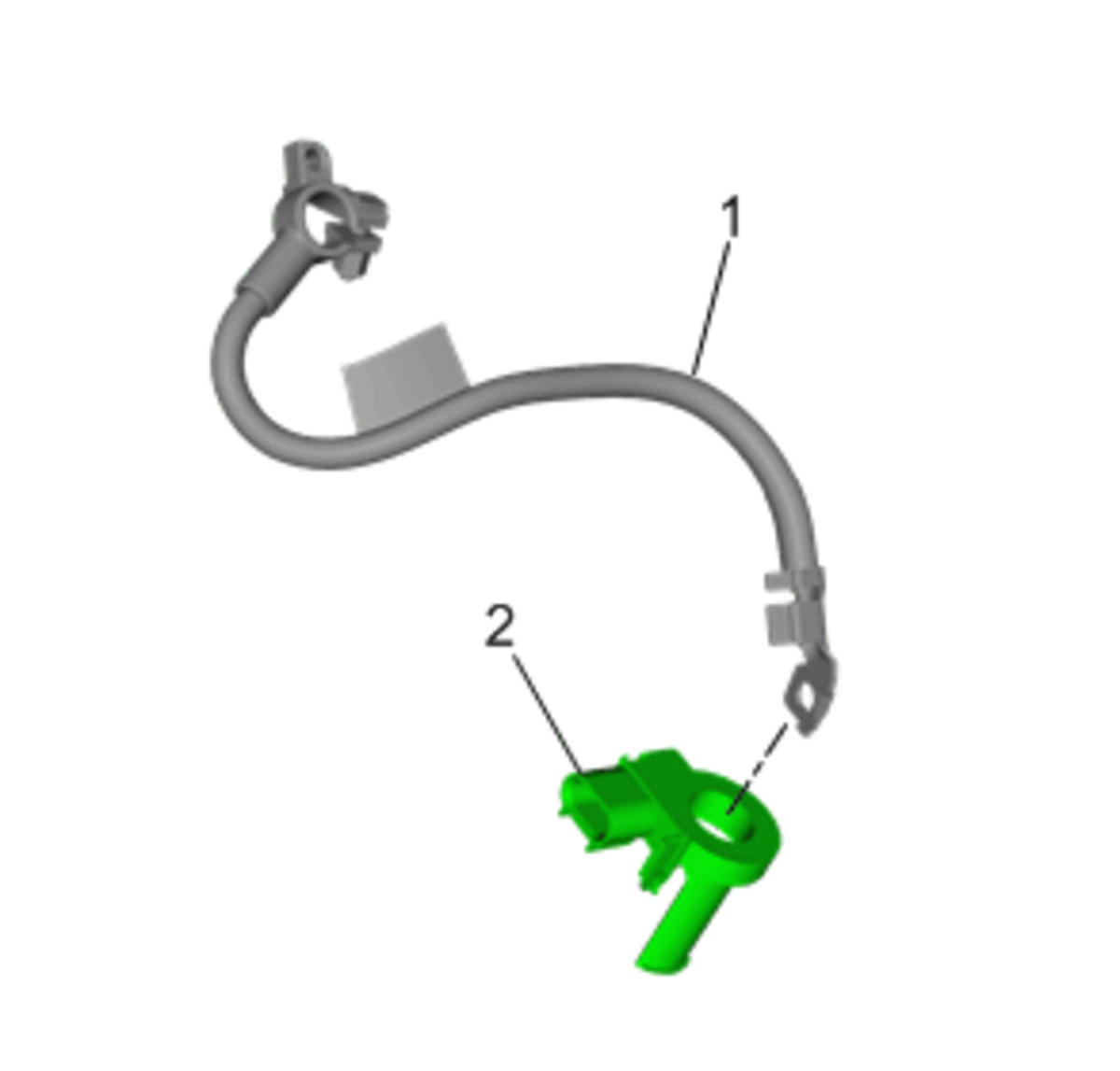

    Fig 1: Battery Current Sensor And Cable
    GM4546924Courtesy of GENERAL MOTORS COMPANY
  1. Install Battery Current Sensor (2) @ Battery Negative Cable (1)

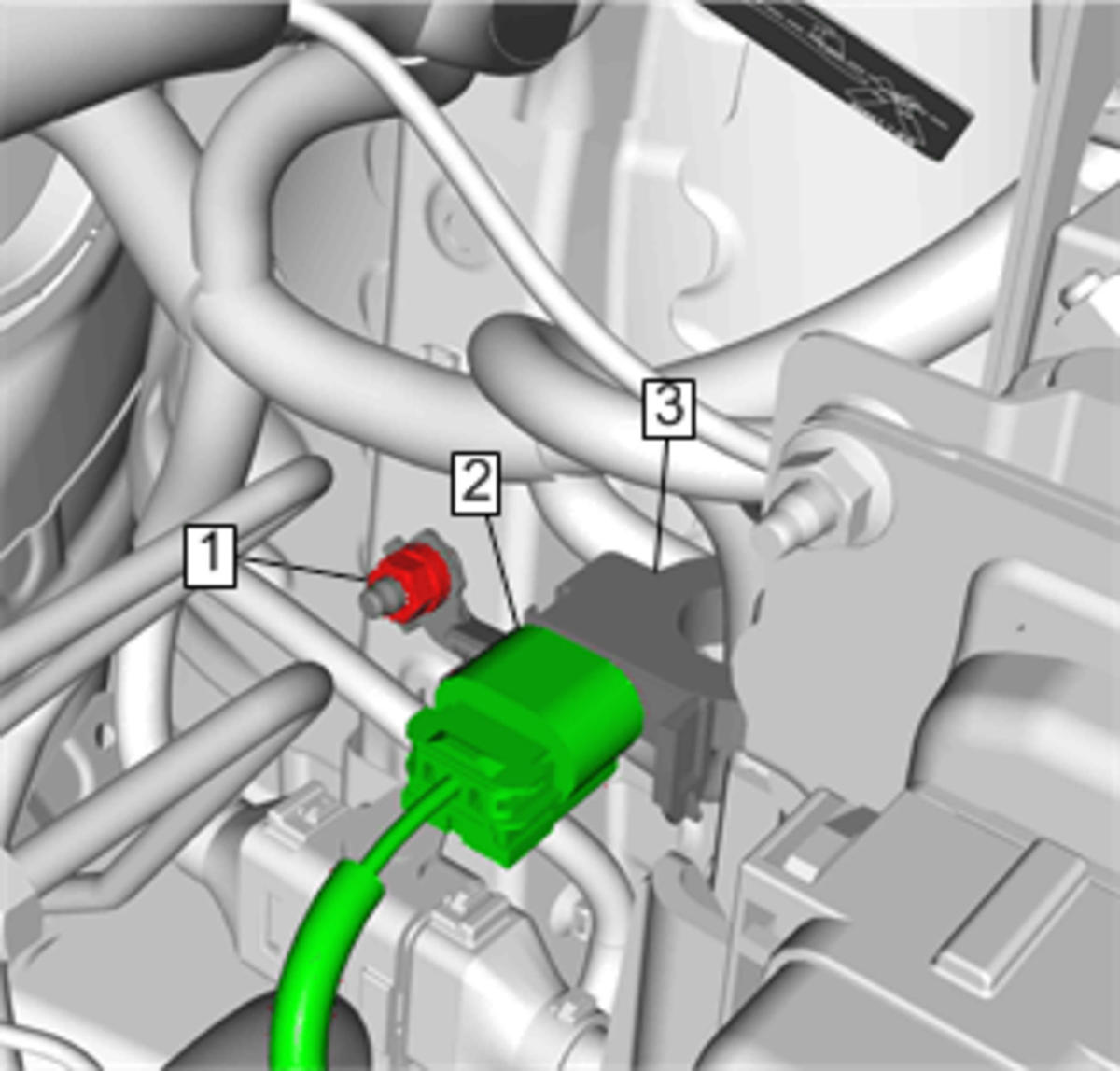

    2. Fig 2: Battery Current Sensor And Connector
    GM4546923Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install Battery Positive and Negative Cable Ground Nut (1) @ Front Wheelhouse Panel and tighten 22 N.m (16 lb ft)
  3. Install Battery Current Sensor (3) Battery Tray
  4. Connect Battery Current Sensor Connector (2)
  5. Install Battery Battery Replacement
  6. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
