Installation Procedure

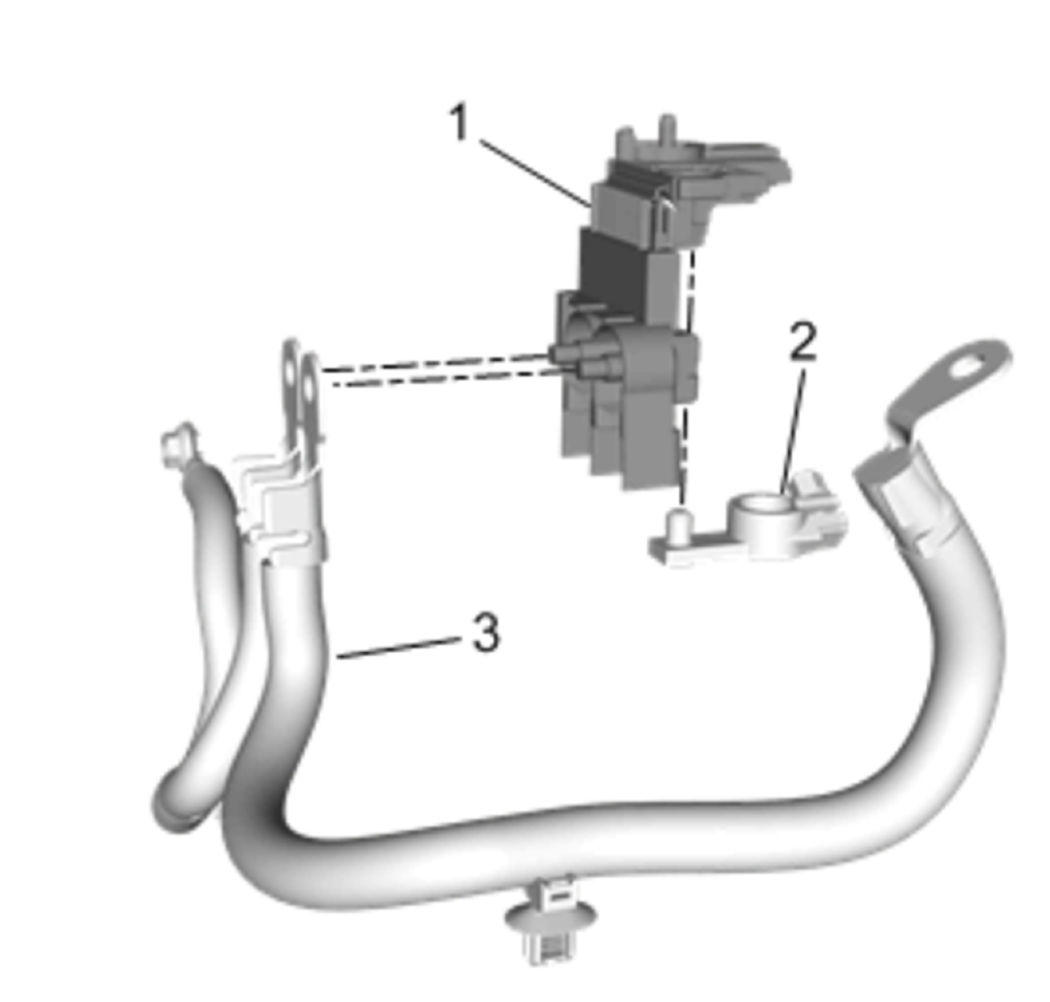

    Fig 1: Battery Positive Post Terminal And Cable
    GM4546945Courtesy of GENERAL MOTORS COMPANY
  1. Install Battery Positive Post Terminal (2) @ Battery Distribution Fuse Block (1)
  2. Install Battery Positive Cable (3) @ Battery Distribution Fuse Block (1)

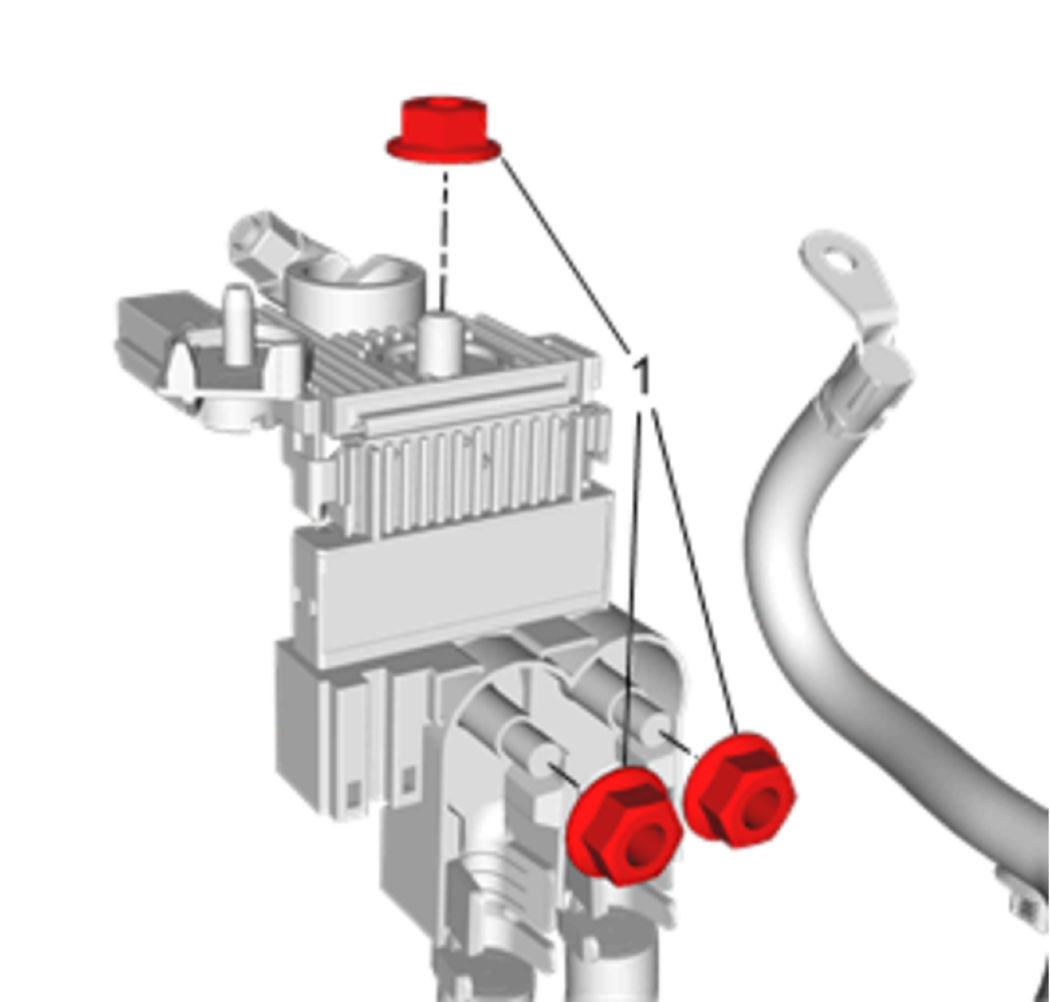

    3. Fig 2: Battery Distribution Fuse Block Nut
    GM4546944Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install Battery Distribution Fuse Block Nut (1) and tighten 22 N.m (16 lb ft)

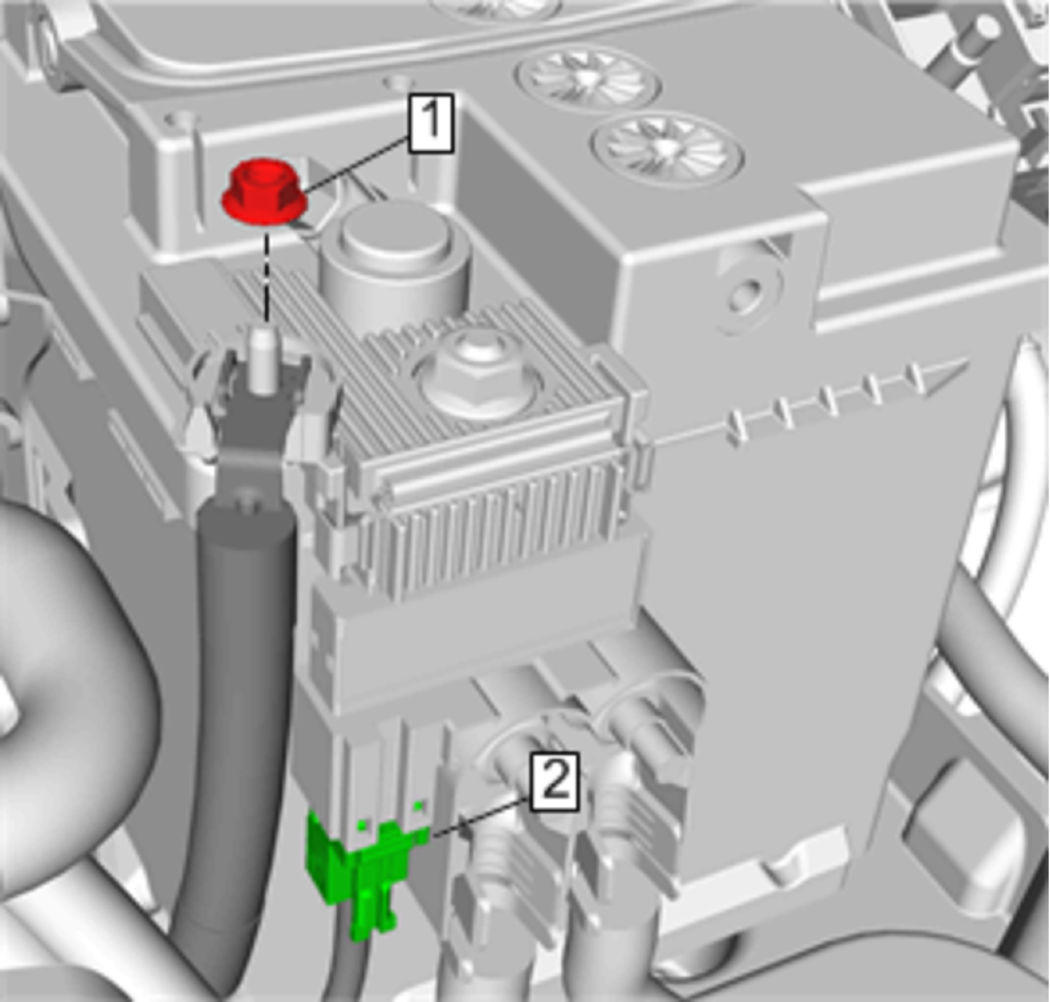

    4. Fig 3: Body Wiring Harness Nut And Connector
    GM4546942Courtesy of GENERAL MOTORS COMPANY
  4. Connect Body Wiring Harness Connector (2) @Battery Distribution Fuse Block
  5. Install Body Wiring Harness Nut (1) @Battery Distribution Fuse Block and tighten 5 N.m (44 lb in)

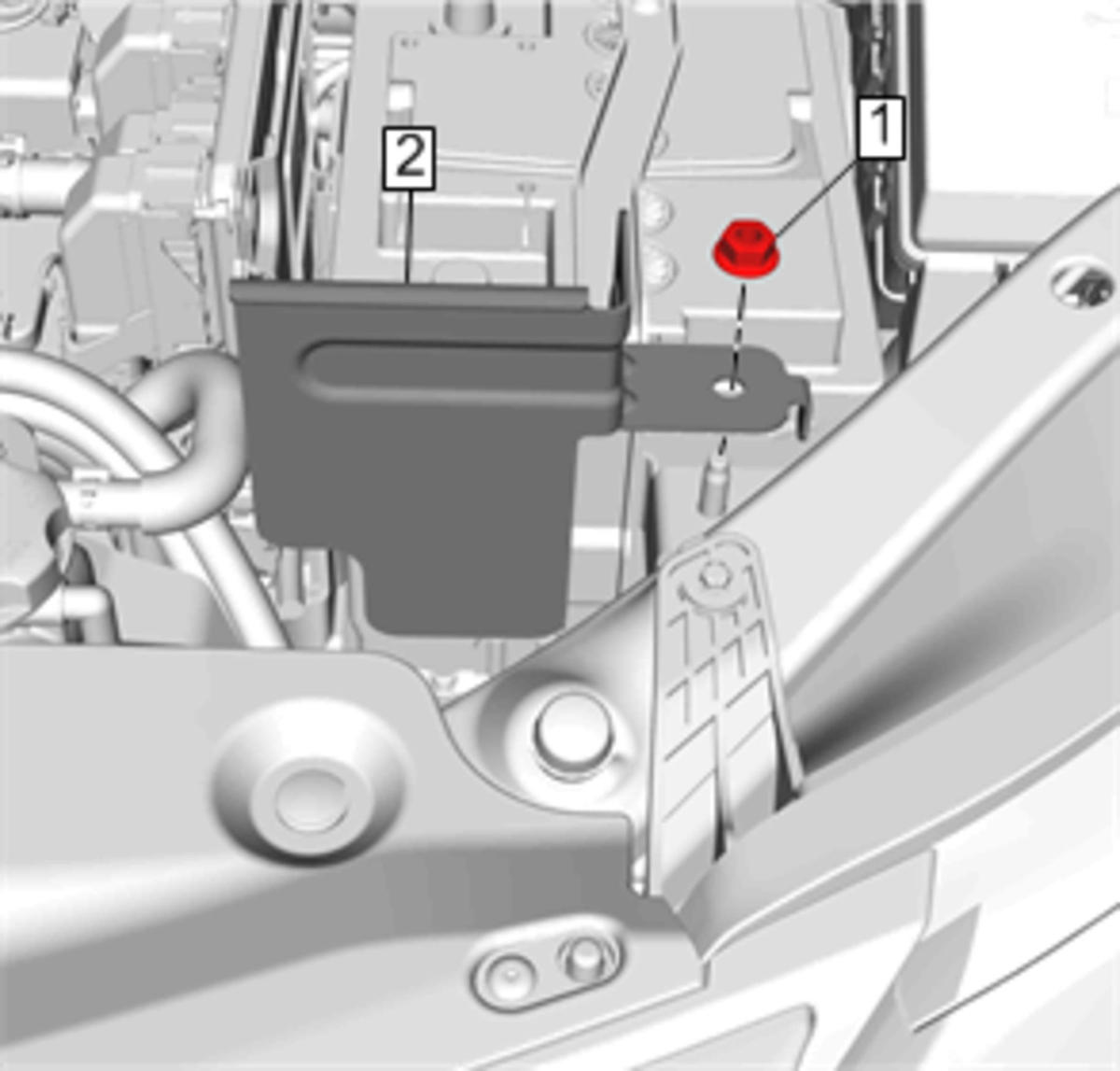

    6. Fig 4: Battery Tray Support Nut
    GM4546927Courtesy of GENERAL MOTORS COMPANY
  6. Install Battery Tray Support (2)
  7. Install Battery Tray Support Nut (1) and tighten 9 N.m (80 lb in)

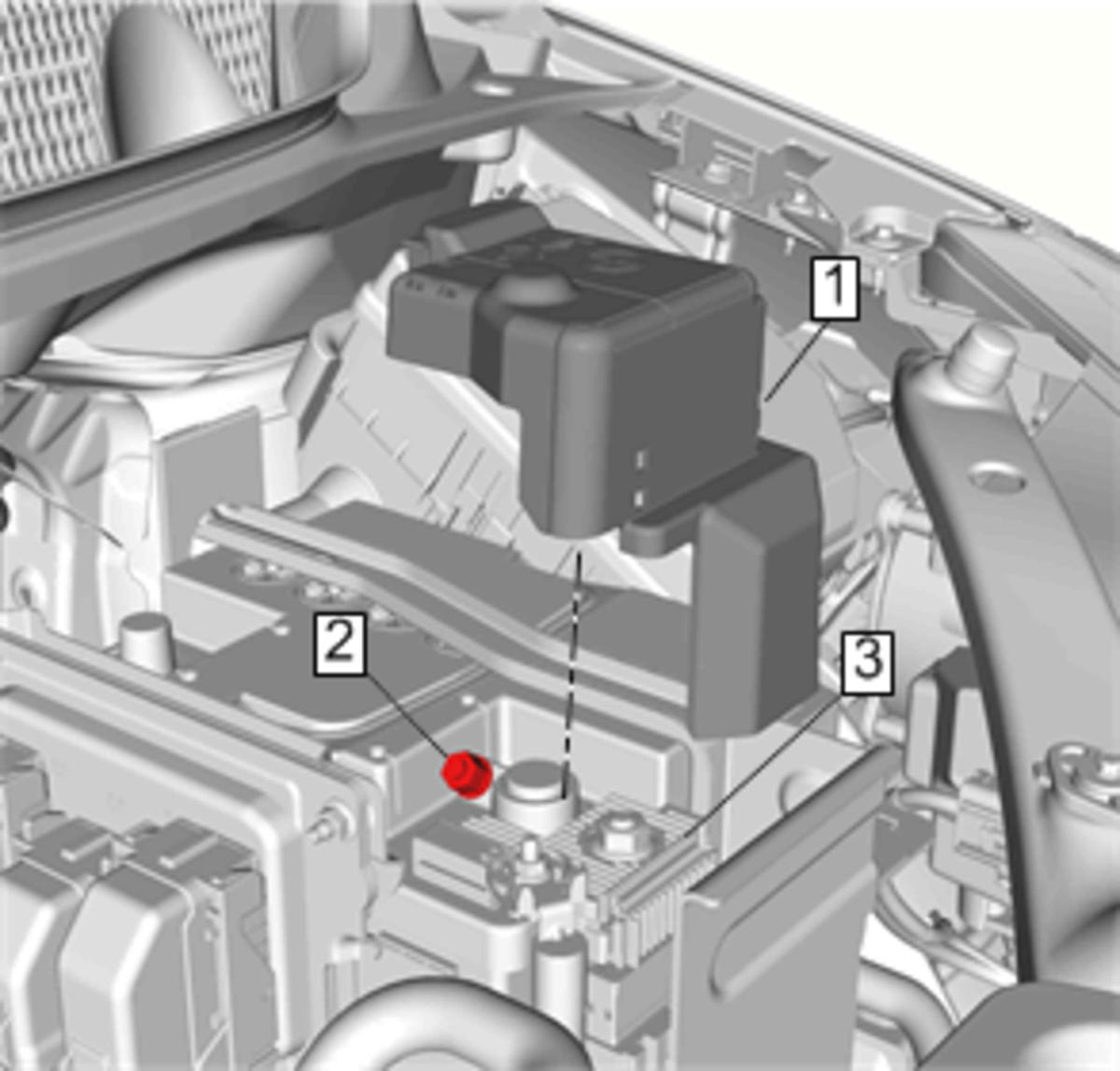

    8. Fig 5: Battery Positive Cable Protective Cover
    GM4546926Courtesy of GENERAL MOTORS COMPANY
  8. Install Battery Positive Cable Protective Cover (1)
  9. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
