Front of Engine Compartment

Front of Engine Compartment

Items
1: P12L Horn - Left P12L Horn - Left
2: P48 Pedestrian Alert Sound Speaker P48 Pedestrian Alert Sound Speaker
3: B55 Hood Ajar Switch B55 Engine Hood Switch
4: P12R Horn - Right P12R Horn - Right
5: G19 Rear Window Washer Pump G19 Rear Window Washer Pump
6: G24 Windshield Washer Pump G24 Windshield Washer Pump

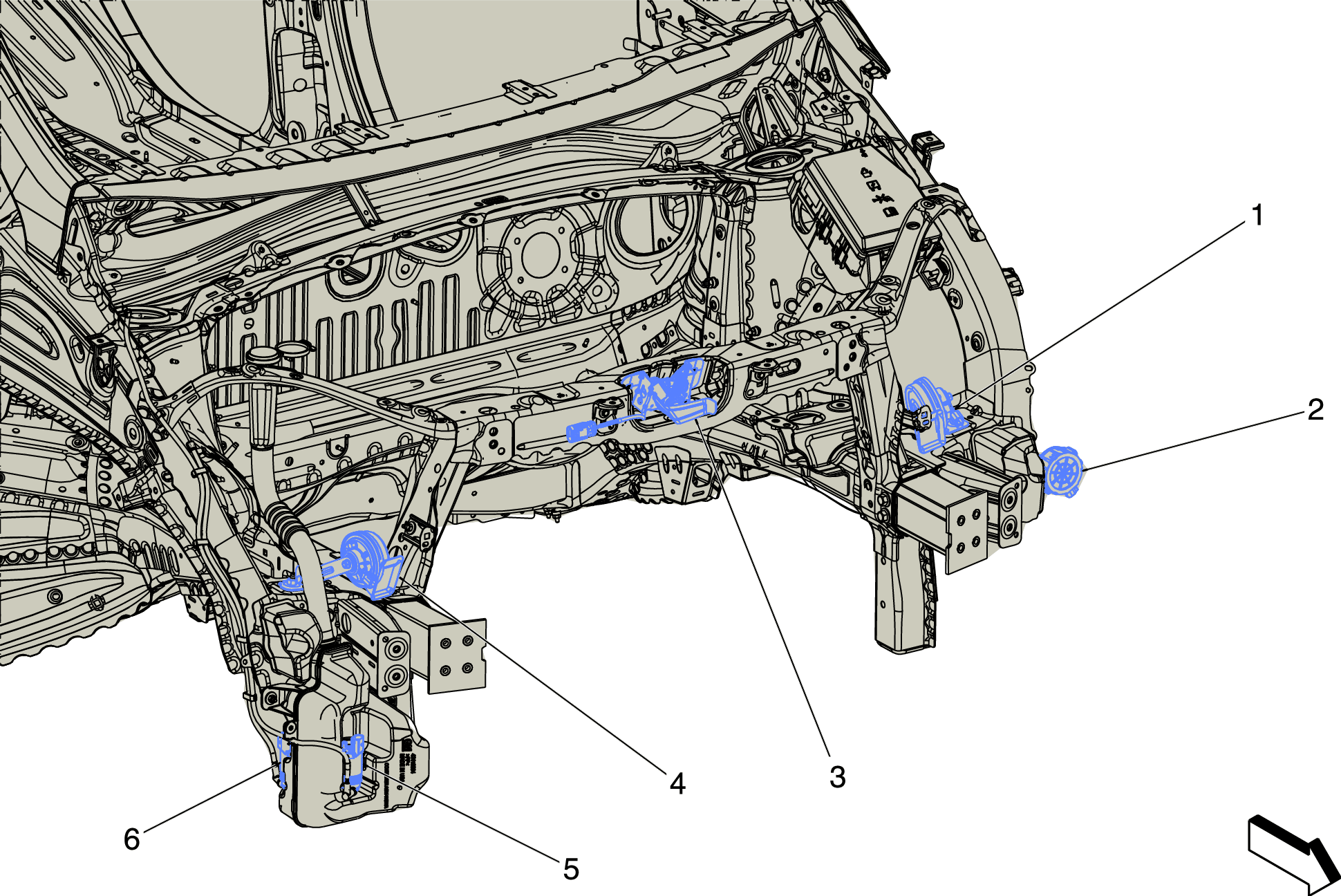

Fig 1: Front of Engine Compartment
GM4535191Courtesy of GENERAL MOTORS COMPANY
