Front of Hybrid/EV Drive Unit

Front of Hybrid/EV Drive Unit

Items
1. T6 Power Inverter Module T6 Power Inverter Module X1T6 Power Inverter Module X2T6 Power Inverter Module X3
2. T18 Battery Charger T18 Battery Charger X1T18 Battery Charger X2T18 Battery Charger X3
3. G1 A/C Compressor G1 A/C Compressor X1G1 A/C Compressor X2
4. T12 Automatic Transmission Assembly

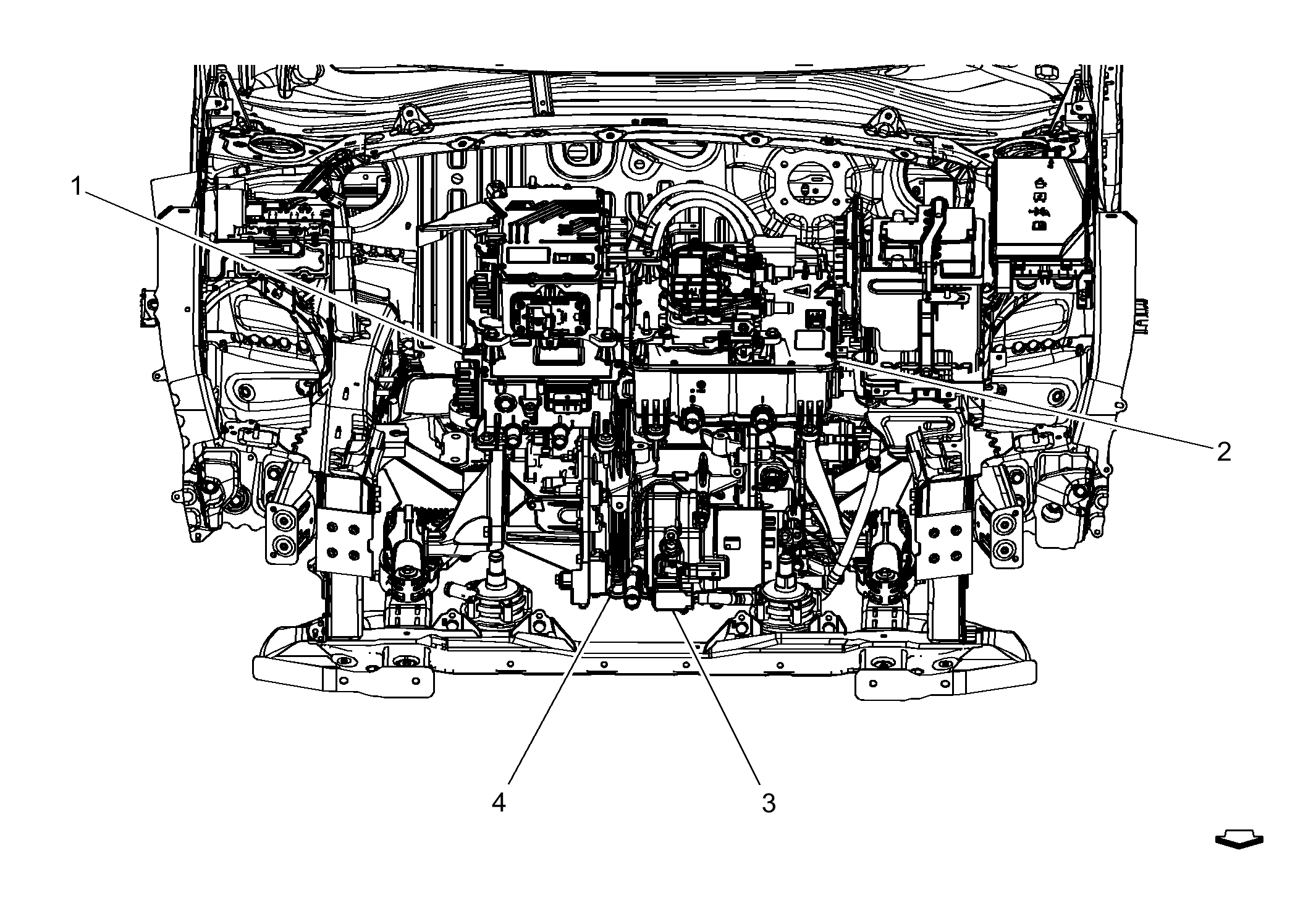

Fig 1: Front of Hybrid/EV Drive Unit
GM4531165Courtesy of GENERAL MOTORS COMPANY
