Rearview Driver Information Camera Replacement

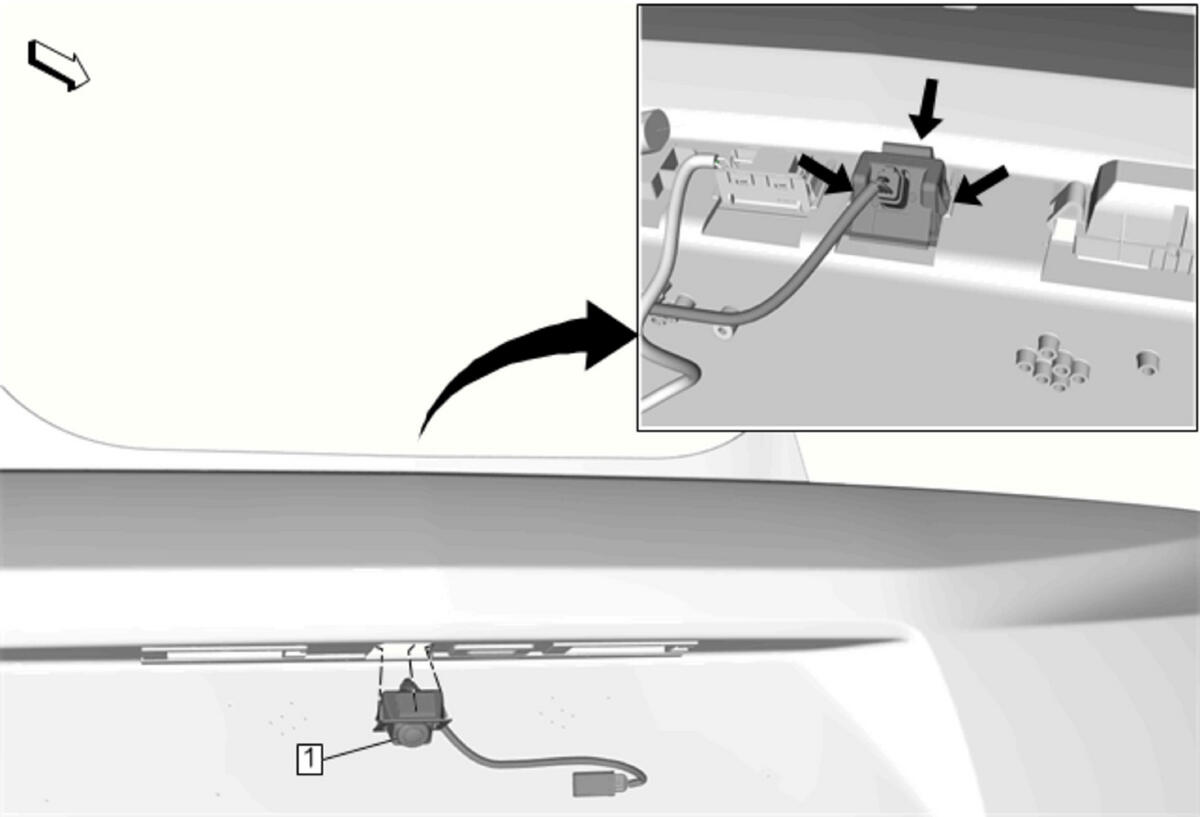

Fig 1: Rearview Driver Information Camera

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Rear Bumper Fascia. Refer to Rear Bumper Fascia Replacement (Base, Uplevel)Rear Bumper Fascia Replacement (ZL1)
1	Rearview Camera Procedure Disconnect all electrical connectors. Depress the clip fingers and push outward to remove the rearview camera from the rear fascia.

Callout

Component Name

Rearview Camera

Procedure

Disconnect all electrical connectors.
Depress the clip fingers and push outward to remove the rearview camera from the rear fascia.
