Below Engine Compartment Components

Below Engine Compartment Components

Items
1: K43 Power Steering Control Module K43 Power Steering Control Module X1K43 Power Steering Control Module X2
2: Q80L Engine Mount Solenoid Valve - Left (LTG) Q80L Engine Mount Solenoid Valve - Left
3: Q80R Engine Mount Solenoid Valve - Right (LTG) Q80R Engine Mount Solenoid Valve - Right

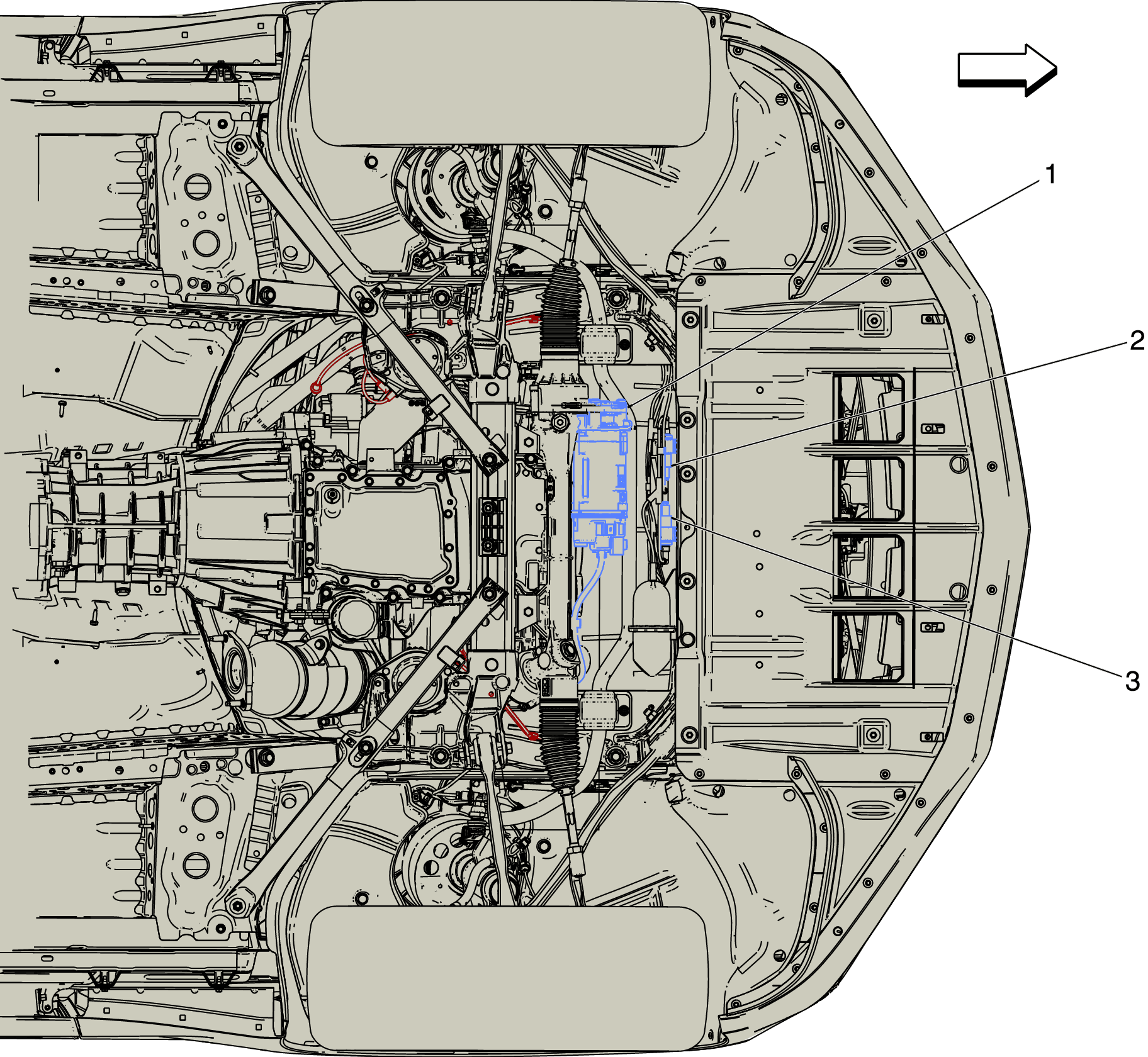

Fig 1: Below Engine Compartment Components
GM4276622Courtesy of GENERAL MOTORS COMPANY
