Radio Control Assembly Replacement

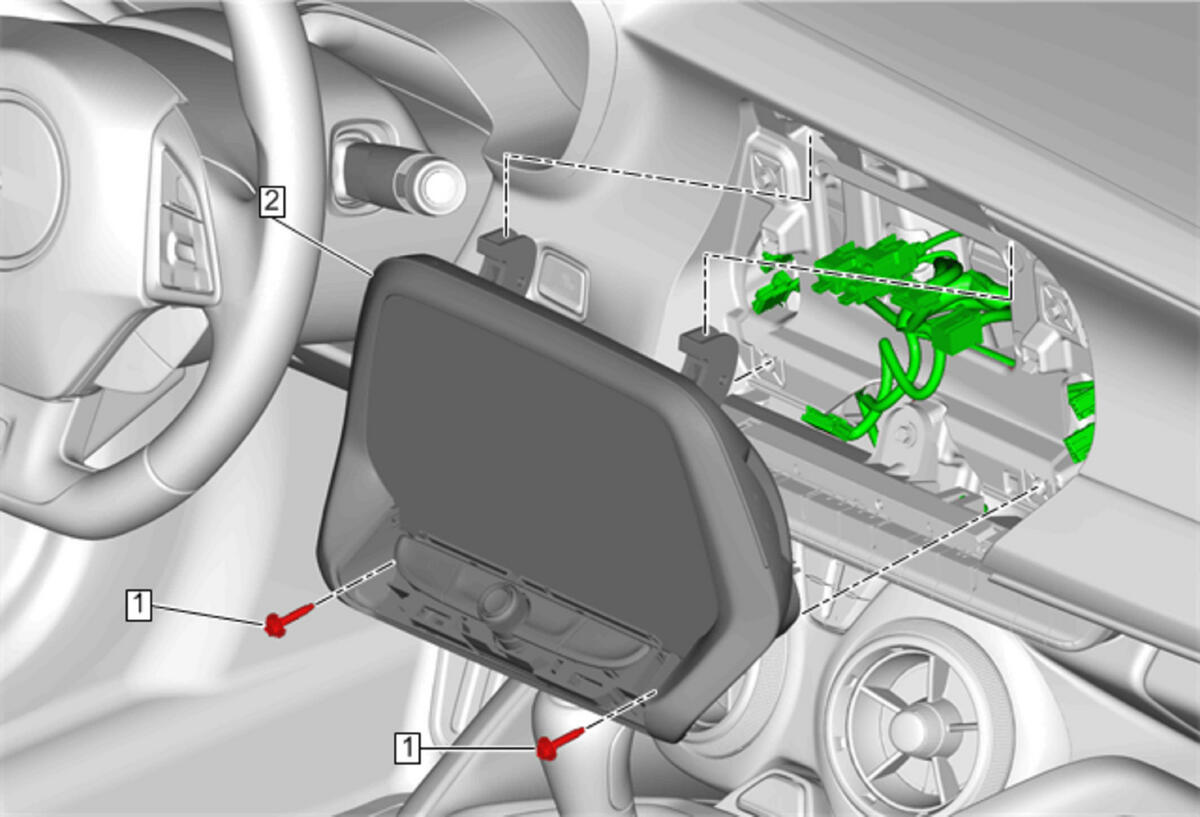

Fig 1: Radio Control Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Accessory Center Trim Plate Replacement
1	Radio Control Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Radio Control Procedure Disconnect the electrical connectors. Refer to Control Module References for programming and set up procedures, if required. Transfer components as necessary.

Callout

Component Name

Radio Control Bolt (Qty: 2)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Radio Control

Procedure

Disconnect the electrical connectors.
Refer to Control Module References for programming and set up procedures, if required.
Transfer components as necessary.
