Rearview Driver Information Camera Replacement

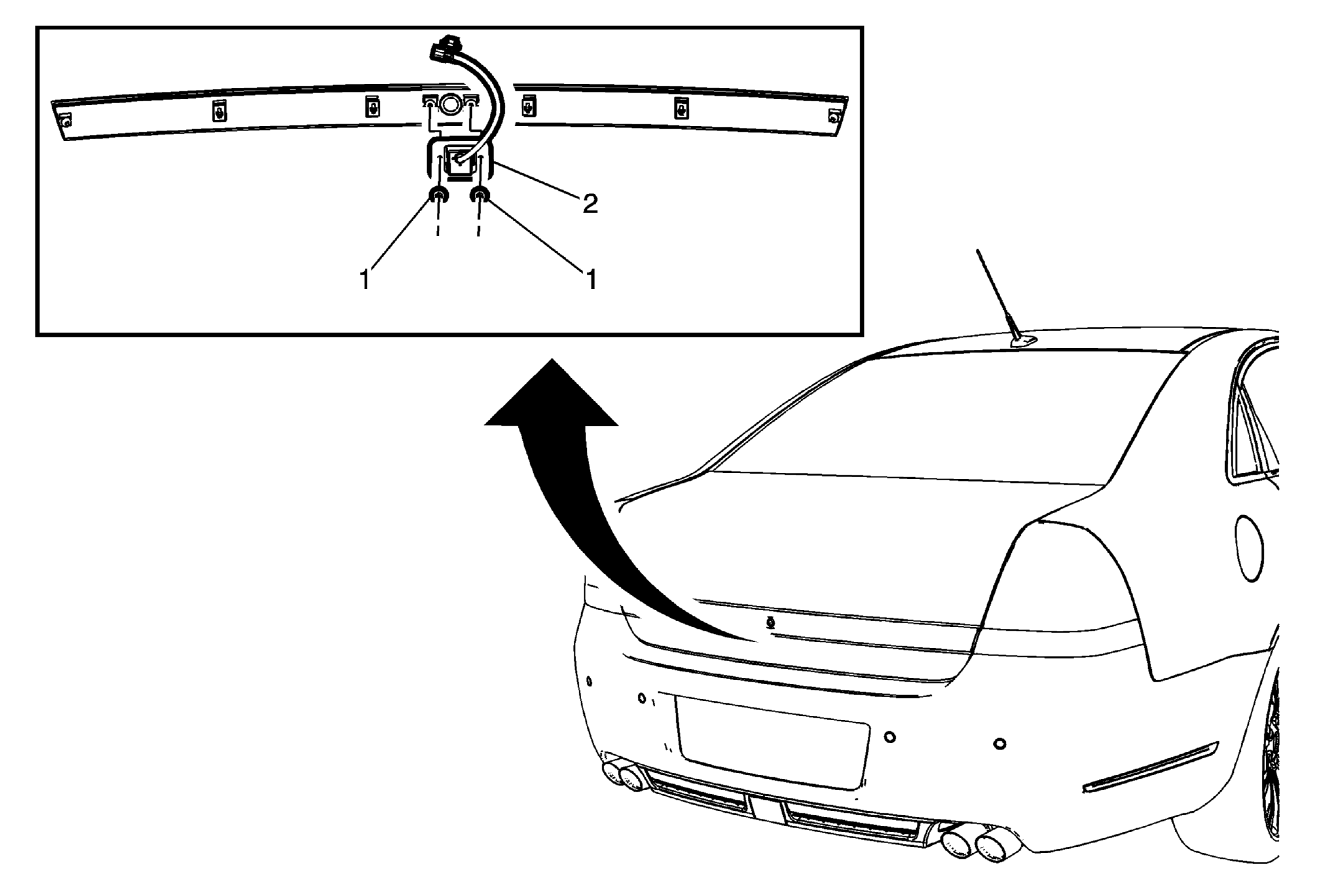

Fig 1: Rearview Driver Information Camera & Screws

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear closure center applique. Refer to Rear Closure Center Applique Replacement .
1	Rearview Driver Information Camera Screw (Qty 2) CAUTION: Refer to Fastener Caution .
2	Rearview Driver Information Camera Procedure Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Remove the rear closure center applique. Refer to Rear Closure Center Applique Replacement .

Rearview Driver Information Camera Screw (Qty 2)

CAUTION:

Rearview Driver Information Camera

Procedure
