USB Receptacle Replacement

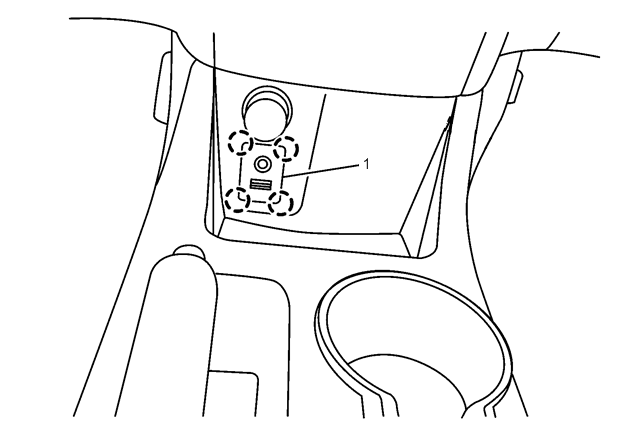

GM3916304Courtesy of
Callout Component Name
Preliminary Procedure
Instrument Panel Lower Trim Panel Bezel Replacement
1 USB Receptacle

Procedure

  1. Retainer - Release [4x]
  2. Electrical Connector - Disconnect
