Front of Vehicle Components

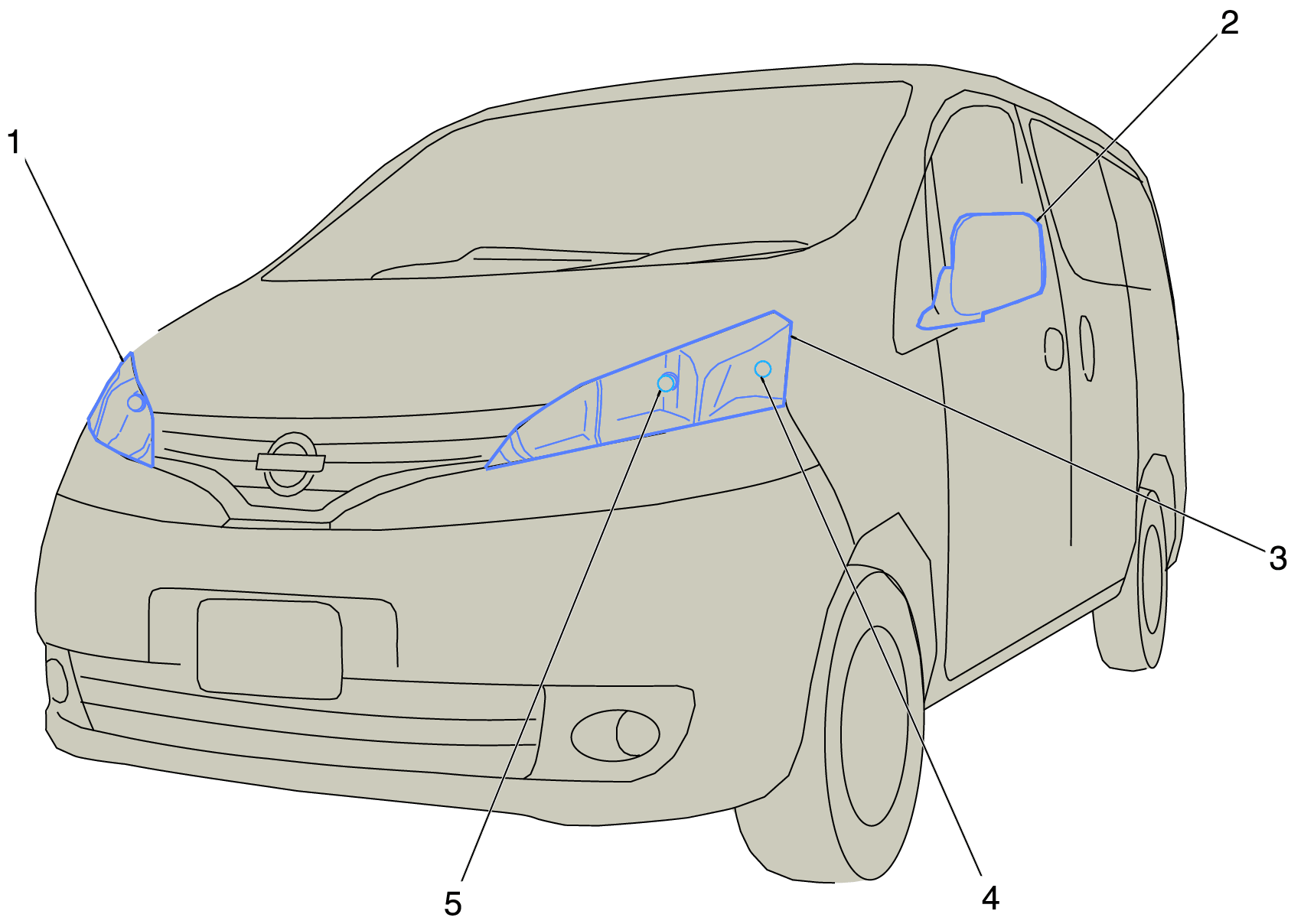

GM3946469Courtesy of
Front of Vehicle Components

Items Callout
E13RA Headlamp Assembly - Right (1)
A9B Outside Rearview Mirror - Passenger (2)
E13LA Headlamp Assembly - Left (3)
E4N Park/Turn Signal Lamp - Left Connector View (4)
E13L Headlamp - Left Connector View (5)
