Front Frame Heat Shield Replacement

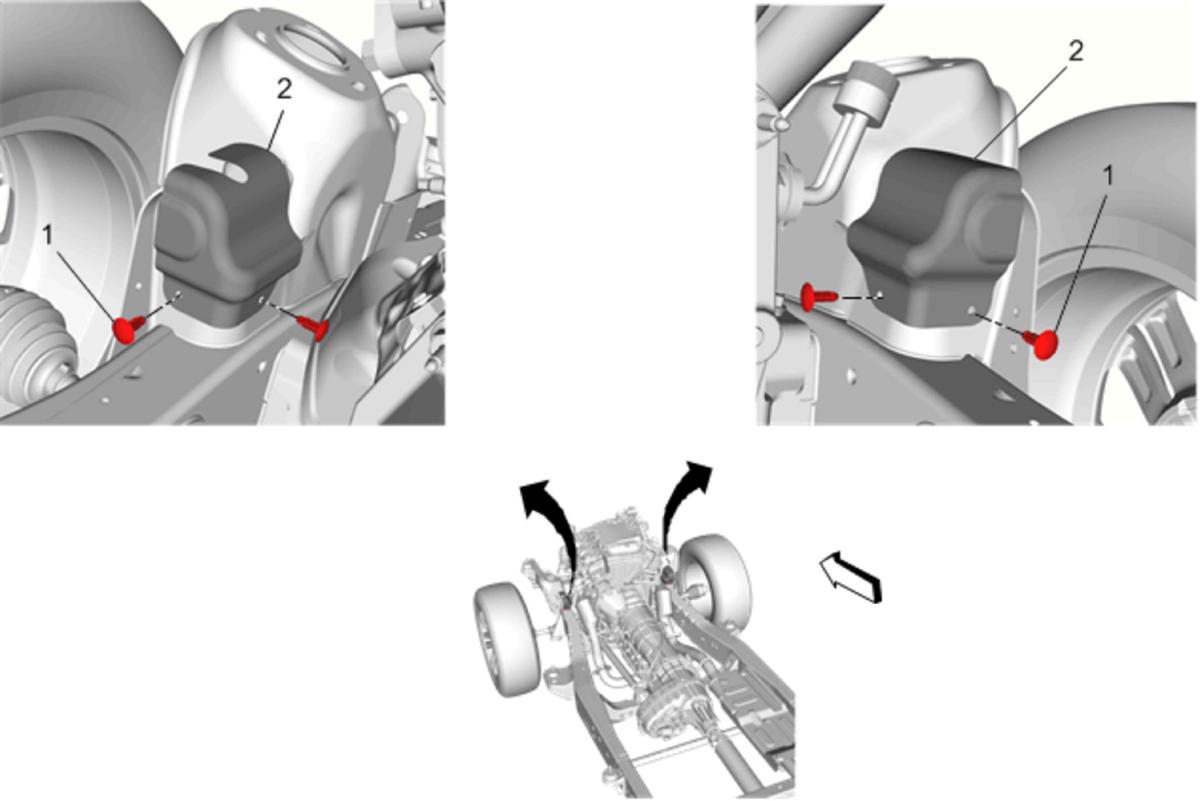

Fig 1: Front Frame Heat Shield
GM3776094Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
1 Front Frame Heat Shield Plastic Retainers (Qty: 4)
2 Front Frame Heat Shield
