Engine Wiring Harness Fuse Block Bracket Replacement

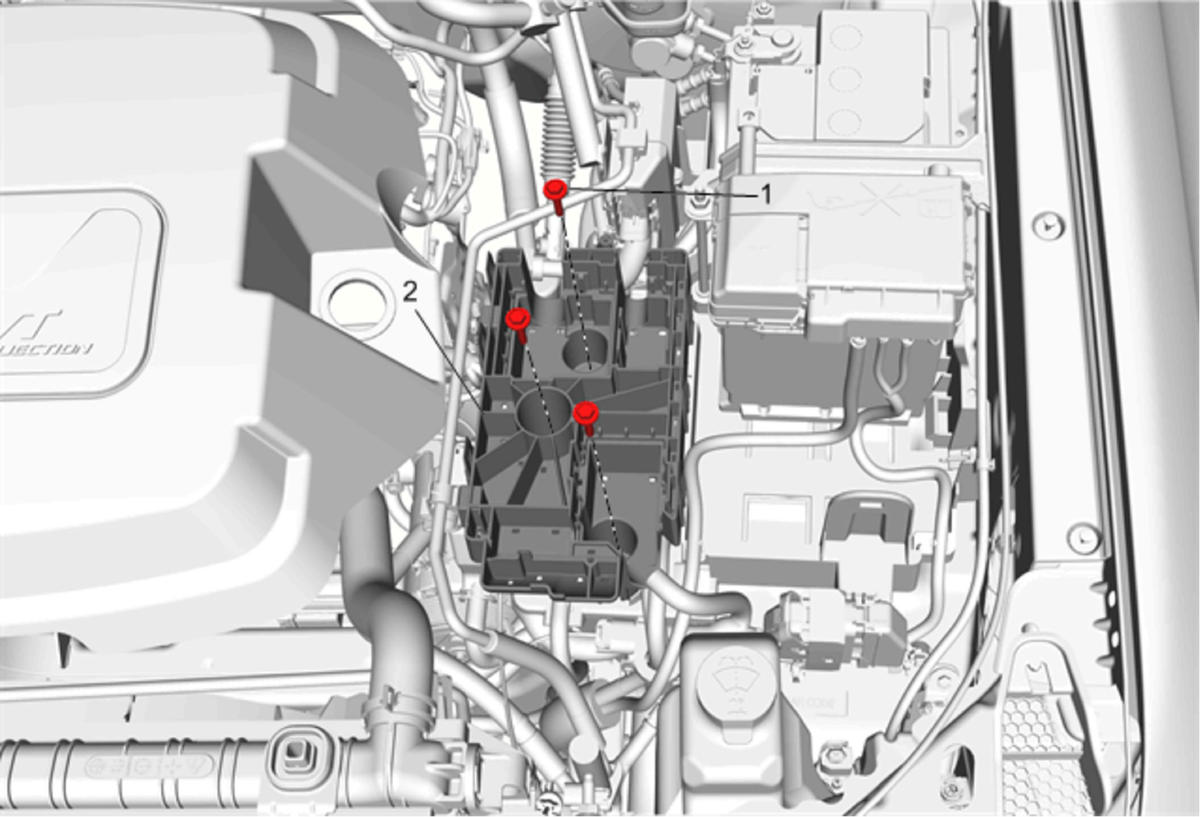

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the engine wiring harness junction block. Refer to Engine Wiring Harness Junction Block Replacement . |
|
| 1 | Engine Wiring Harness Fuse Block Bracket Screws (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 7 N.m (62 lb in) |
| 2 | Engine Wiring Harness Fuse Block Bracket Procedure Disconnect and unclip all necessary electrical components from the battery tray. |
