Removal Procedure

  1. Place the ignition in the OFF position.
  2. Remove the air cleaner outlet duct. Air Cleaner Outlet Duct Replacement (LT1)Air Cleaner Outlet Duct Replacement (LT4)
  3. Thoroughly clean the area surrounding the electronic brake control module (EBCM) to brake pressure modulator valve (BPMV) mating surfaces of any accumulated dirt and debris.
  4. Disconnect the EBCM electrical connector.

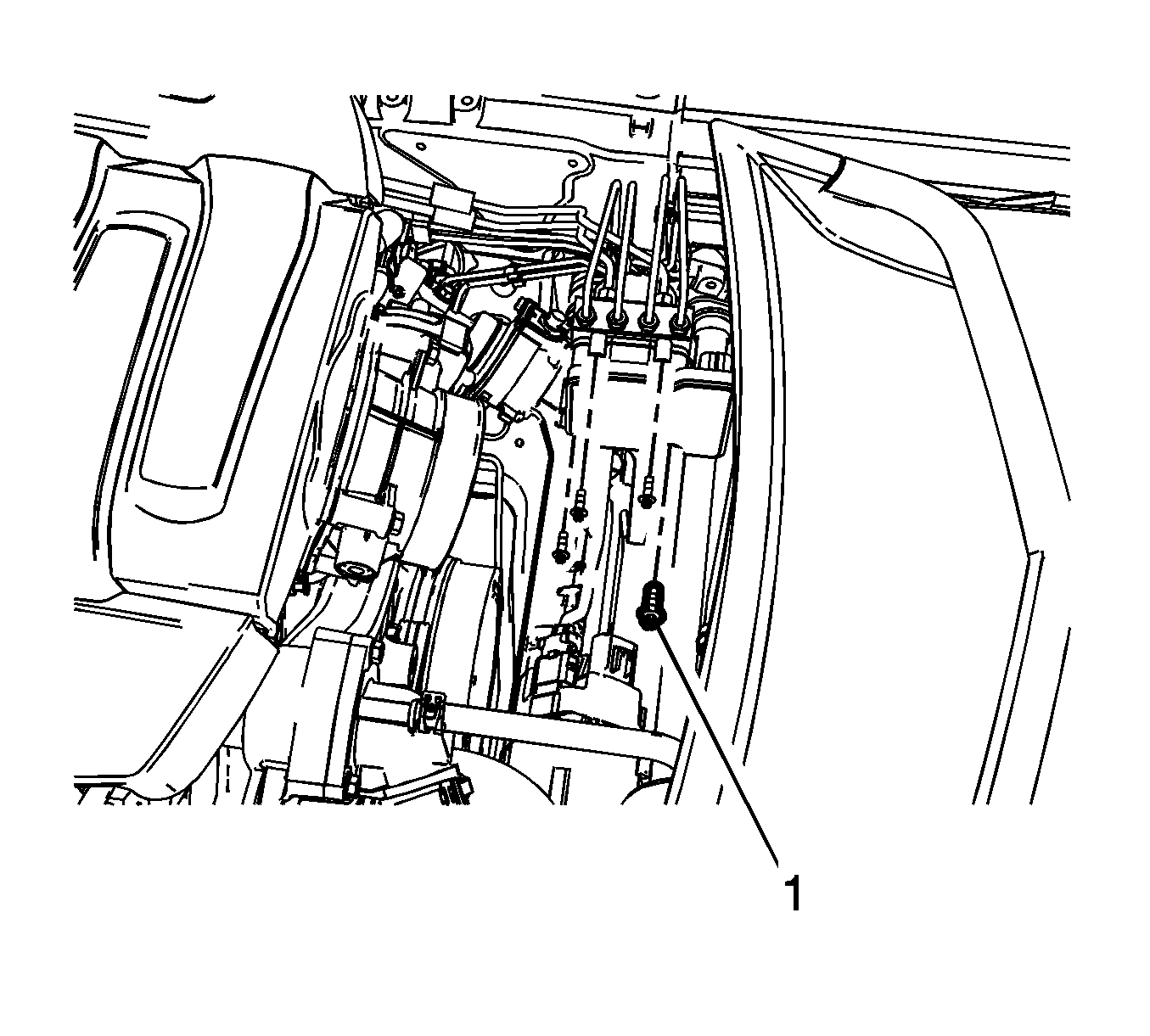

    5. Fig 1: EBCM Bolts
    GM3318472Courtesy of GENERAL MOTORS COMPANY
  5. Remove the 4 EBCM bolts (1).

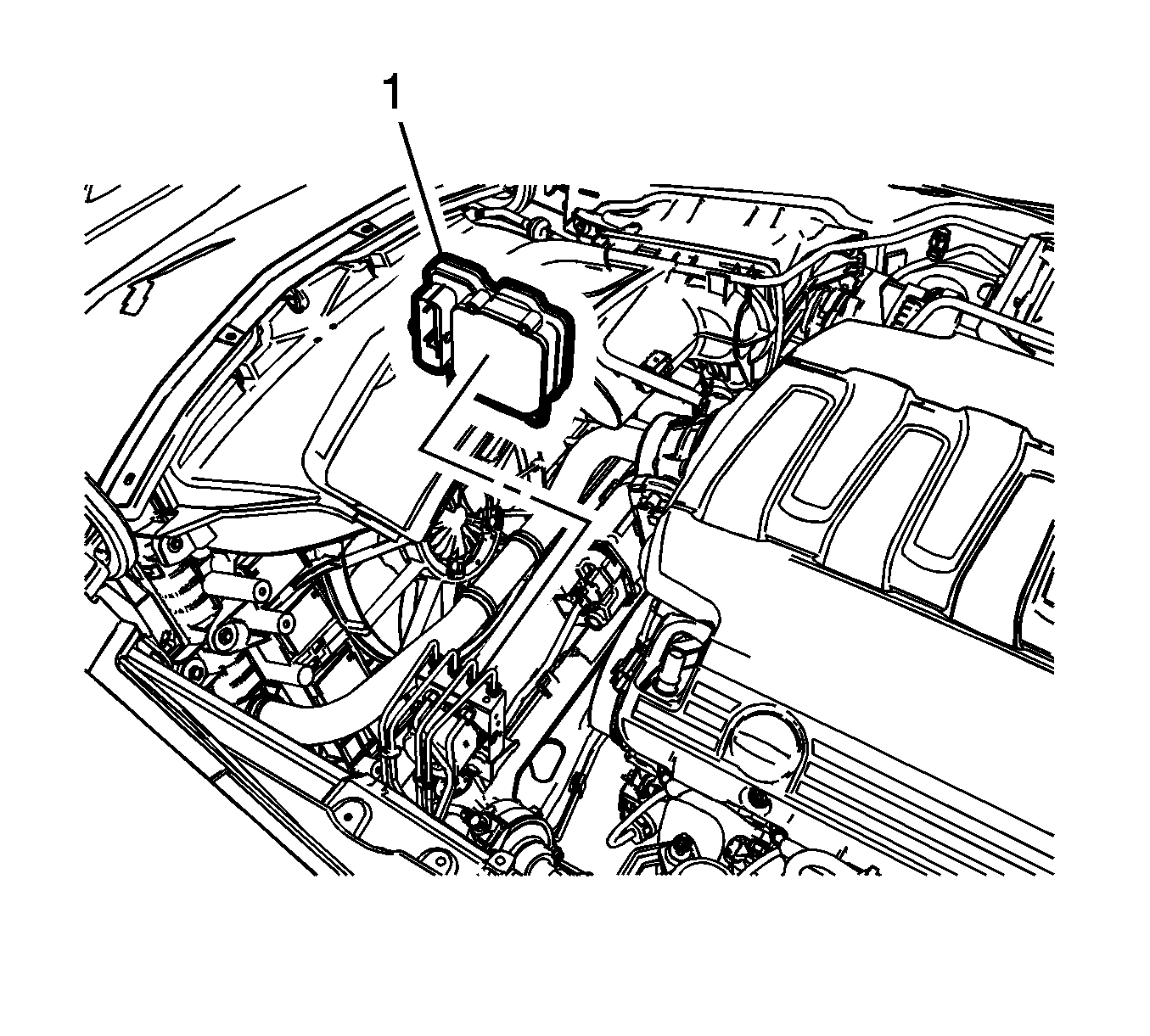

    6. Fig 2: EBCM And BPMV
    GM3318473Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not attempt to lever or pry the components apart.

  6. Separate the EBCM (1) from the BPMV
  7. Clean the sealing surface of the BPMV with denatured alcohol and allow to dry.
