Engine Control Module Bracket Replacement

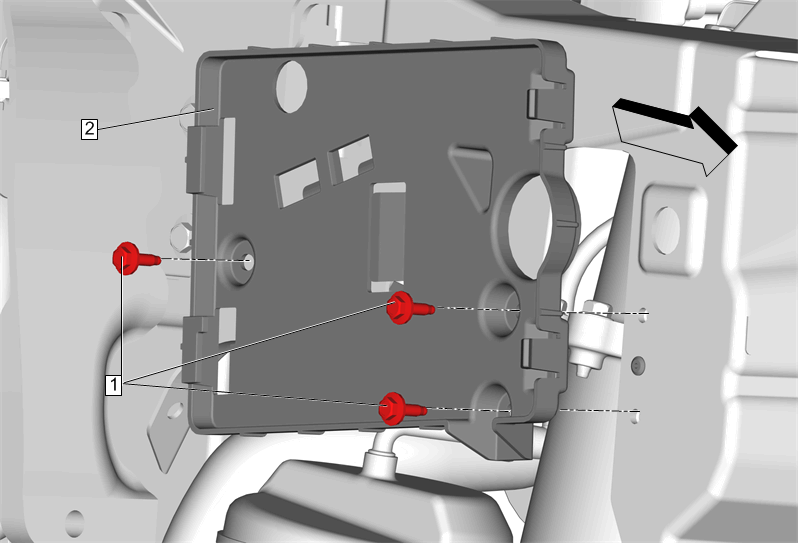

Fig 1: Engine Control Module Bracket
GM3958490Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Engine Control Module Replacement
1 Engine Control Module Bracket Bolt (Qty: 3)
Tighten
6 N.m (53 lb in)
2 Engine Control Module Bracket
