Front View Driver Information Camera Replacement (UVJ)

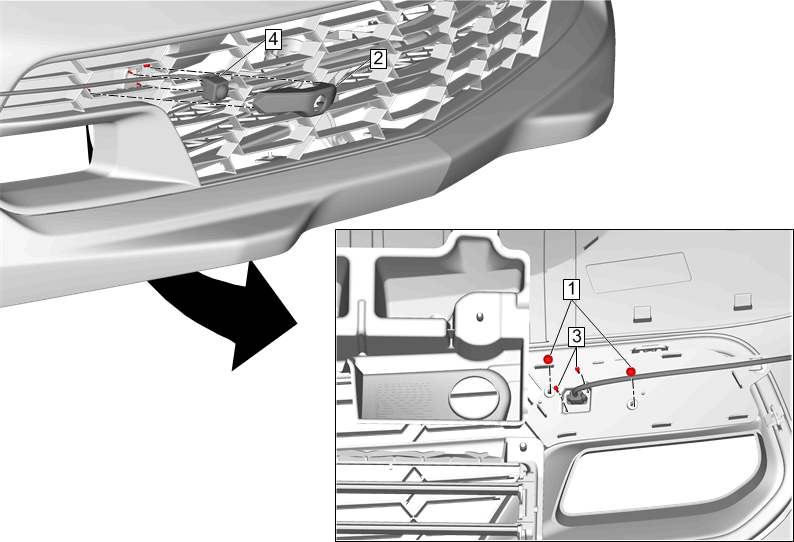

Fig 1: Front View Driver Information Camera (UVJ)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Front Bumper Fascia Replacement
1	Front Grille Opening Bezel Bolt (Qty: 2) Tighten  2.5 N.m (22 lb in)
2	Front Grille Opening Bezel
3	Front View Driver Information Camera Retainer (Qty: 2) CAUTION: Fastener Caution . Tighten  1 N.m (9 lb in)
4	Front View Driver Information Camera Procedure  Disconnect the electrical connector.
