Communication Interface Module Bracket Replacement

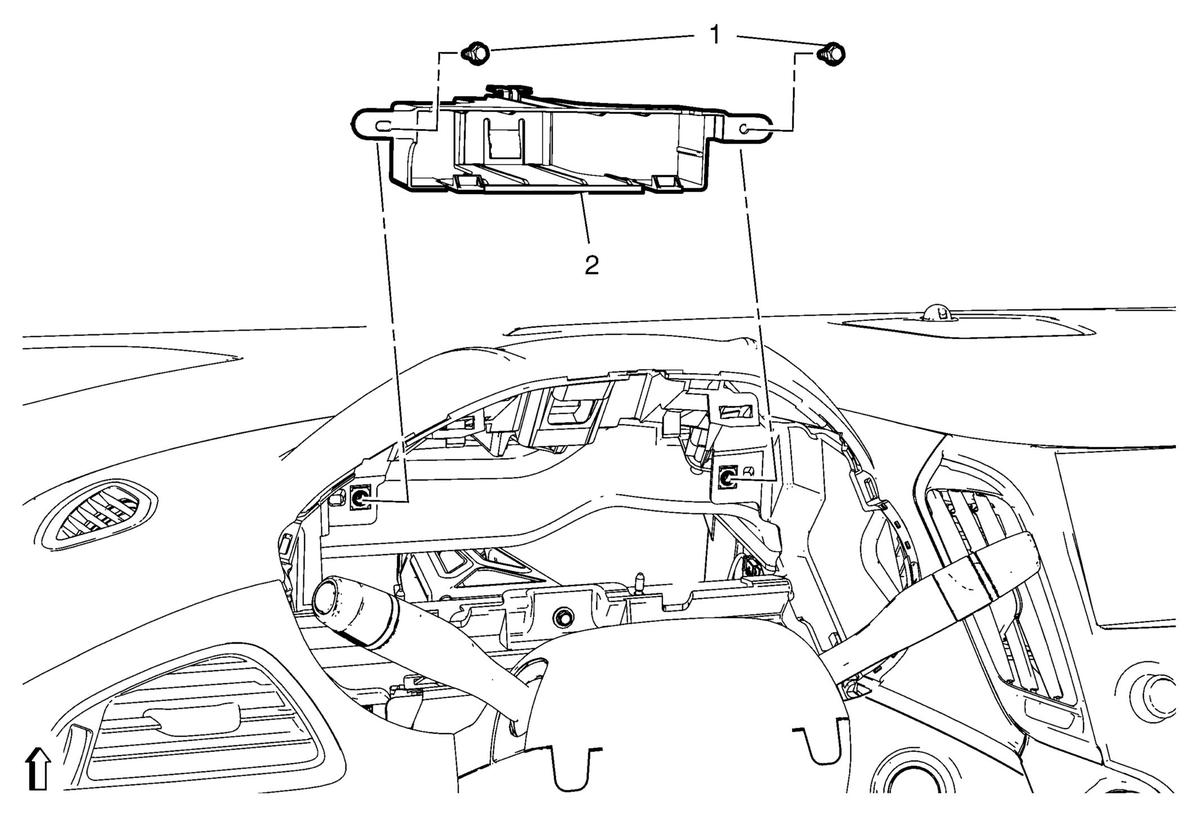

Fig 1: Communication Interface Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove Communication Interface Module. Refer to Communication Interface Module Replacement
1	Communication Interface Module Bracket Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Communication Interface Module Bracket
