Installation Procedure

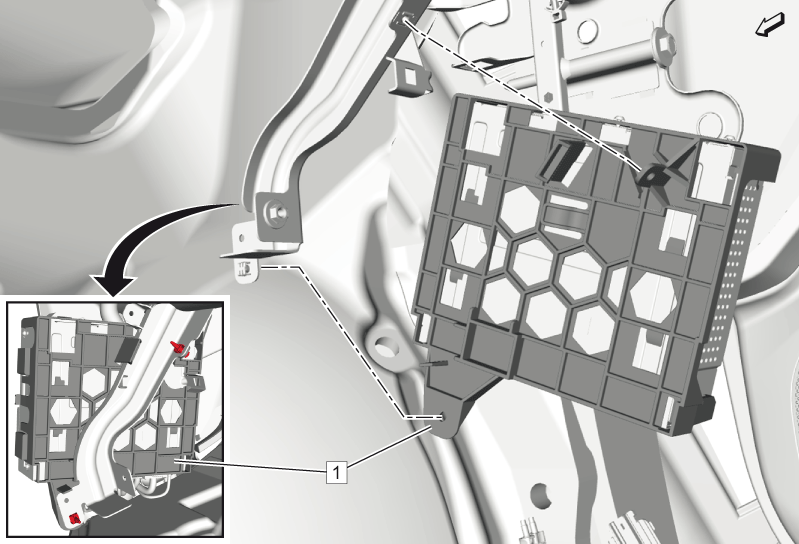

    Fig 1: Human Machine Interface Control Module Bracket
    GM4421924Courtesy of GENERAL MOTORS COMPANY
  1. Install Human Machine Interface Control Module Bracket (1)

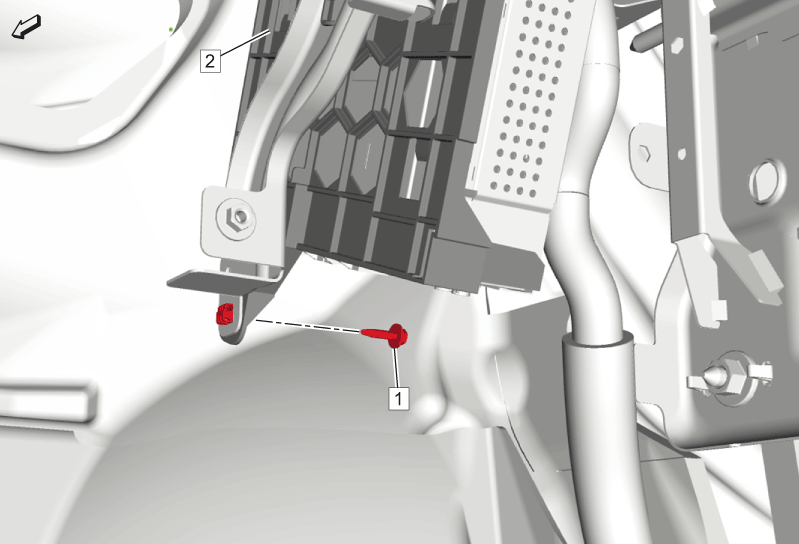

    2. Fig 2: Human Machine Interface Control Module Bracket And Bolt
    GM4421923Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install and tighten Human Machine Interface Control Module Bracket Bolt (1) @ Human Machine Interface Control Module Bracket (2) to 2.5 N.m (22 lb in)

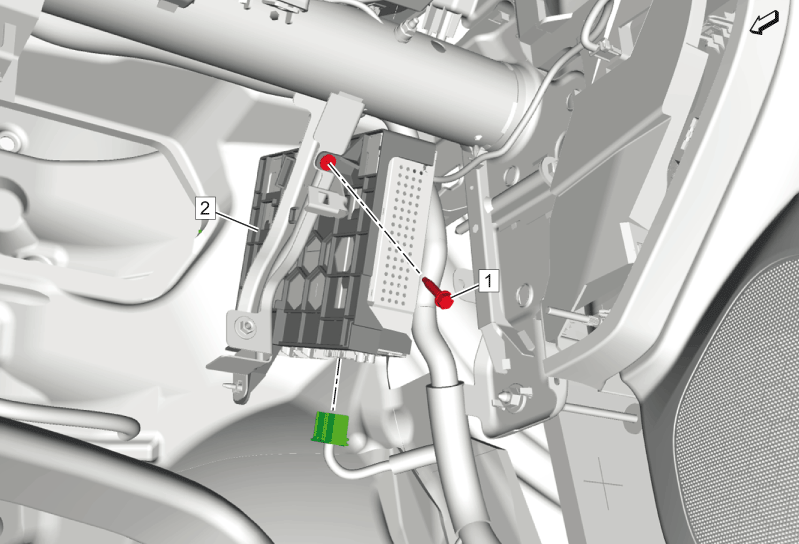

    3. Fig 3: Human Machine Interface Control Module Bracket And Bolt
    GM4421922Courtesy of GENERAL MOTORS COMPANY
  3. Install and tighten Human Machine Interface Control Module Bracket Bolt (1) @ Human Machine Interface Control Module Bracket (2) to 2.5 N.m (22 lb in)
  4. Connect the electrical connector.

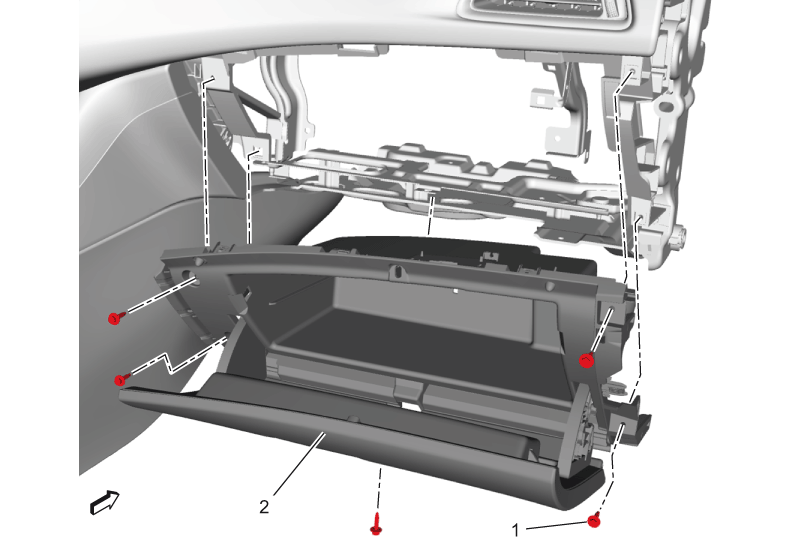

    5. Fig 4: Instrument Panel Compartment And Bolts
    GM4422282Courtesy of GENERAL MOTORS COMPANY
  5. Install Instrument Panel Compartment (2)
  6. Connect the electrical connector.
  7. Install the 5 instrument panel compartment bolts (1) and tighten to 2.5 N.m (22 lb in).

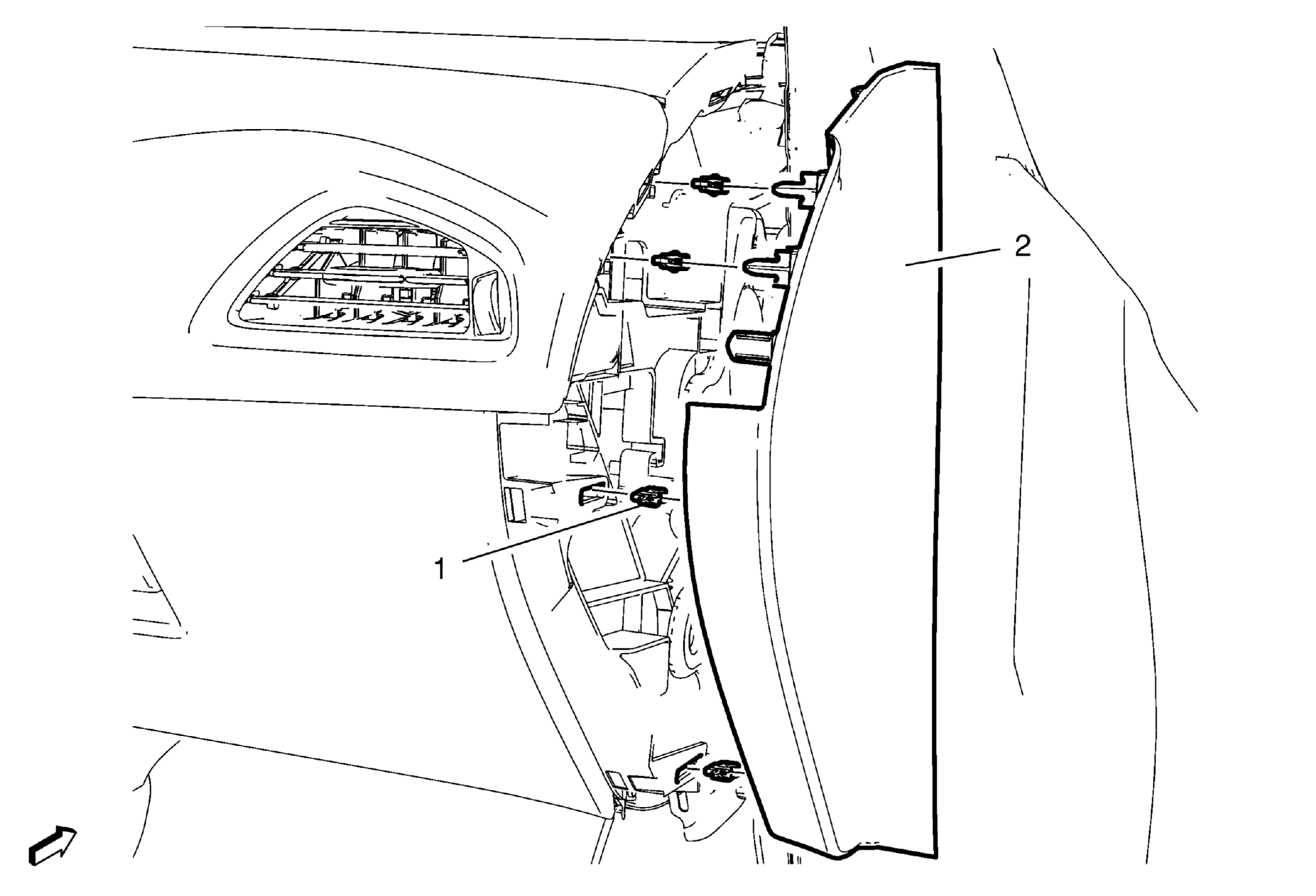

    8. Fig 5: Instrument Panel Outer Trim Cover - Right Side
    GM3686273Courtesy of GENERAL MOTORS COMPANY
  8. Install Instrument Panel Outer Trim Cover - Right (2)

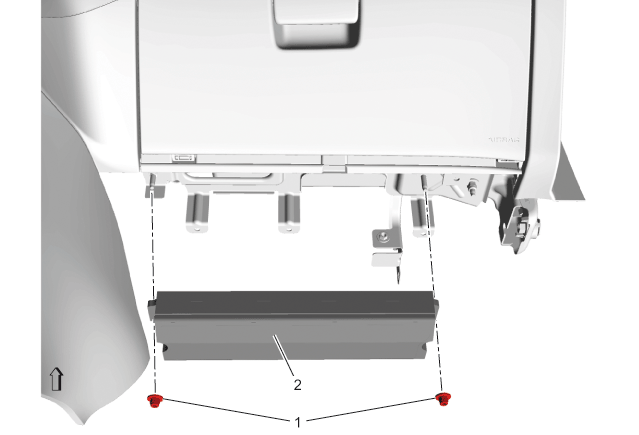

    9. Fig 6: Instrument Panel Lower Airbag And Nuts
    GM4290300Courtesy of GENERAL MOTORS COMPANY
  9. Install Instrument Panel Lower Airbag - Passenger Side (2)
  10. Connect the electrical connector.
  11. Install and tighten Instrument Panel Lower Airbag Nuts (1) to 9 N.m (80 lb in)

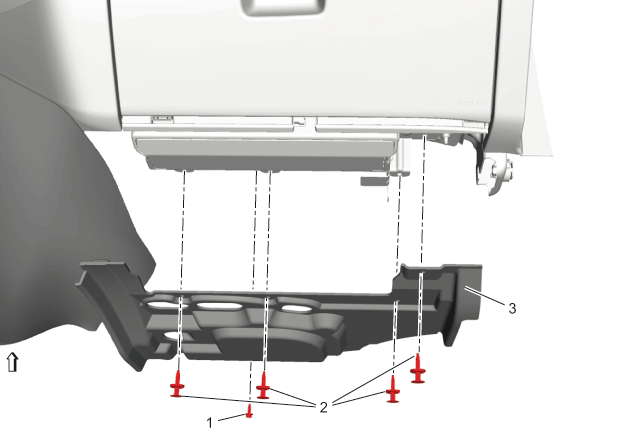

    12. Fig 7: Instrument Panel Lower Trim Panel Insulator
    GM4290319Courtesy of GENERAL MOTORS COMPANY
  12. Install Instrument Panel Lower Trim Panel Insulator (3)
  13. Install Instrument Panel Lower Trim Panel Insulator Retainers (2) (Qty: 4)
  14. Install and tighten Instrument Panel Lower Trim Panel Insulator Bolt (1) to 2.5 N.m (22 lb in)

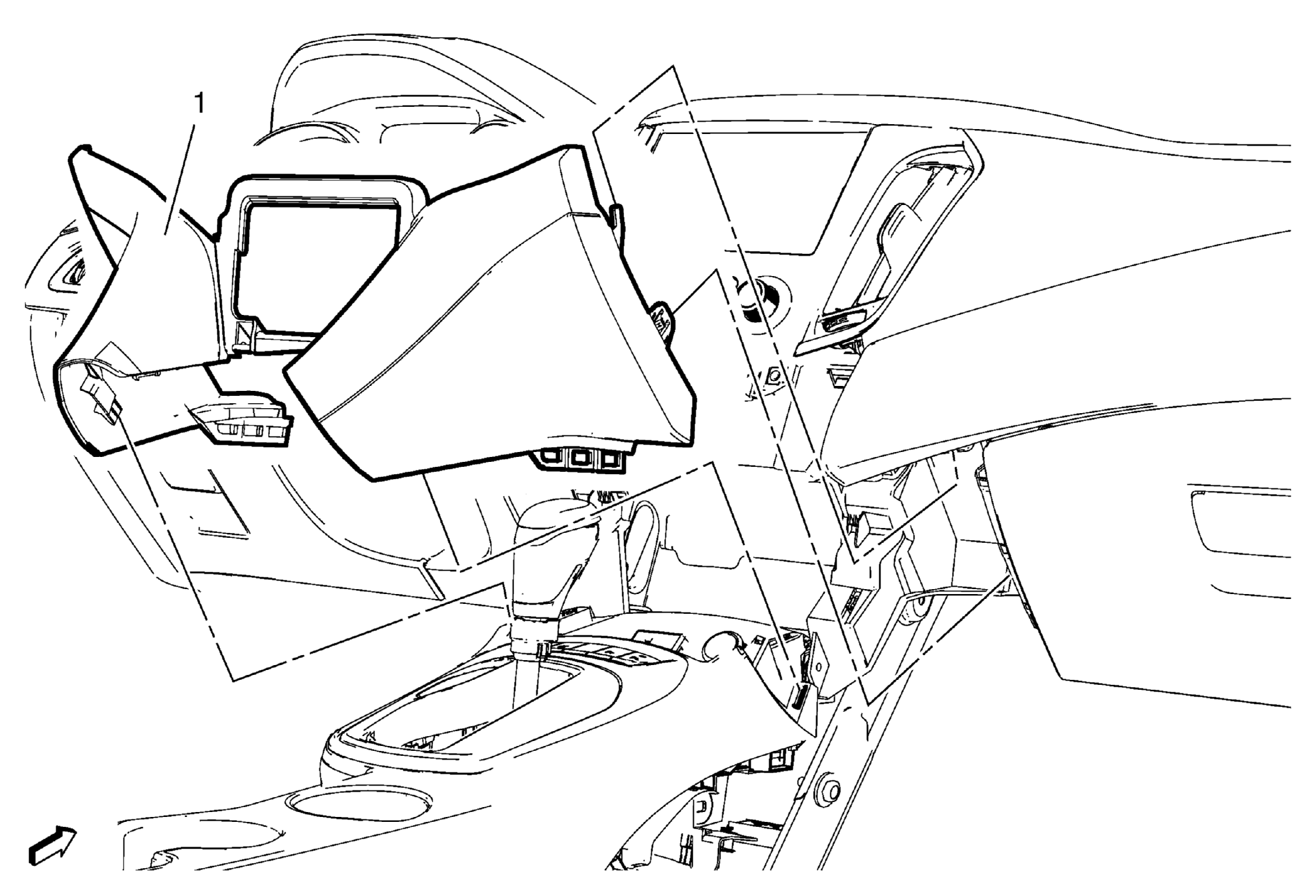

    15. Fig 8: Instrument Panel Fuse Block Access Cover Frame
    GM3682514Courtesy of GENERAL MOTORS COMPANY
  15. Install the left and right instrument panel fuse block access cover frame (1).

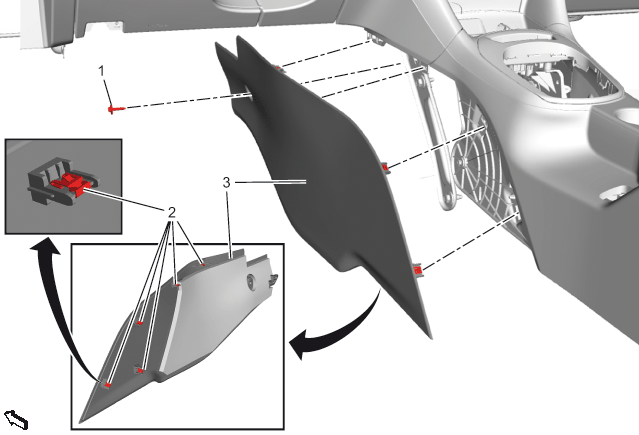

    16. Fig 9: Front Floor Console Extension Panel
    GM4377267Courtesy of GENERAL MOTORS COMPANY
  16. Install the left and right front floor console extension panel (3).
  17. Install Front Floor Console Extension Panel Retainer (2) (Qty: 5)
  18. Install and tighten Front Floor Console Extension Panel Fastener (1) to 2.5 N.m (22 lb in)

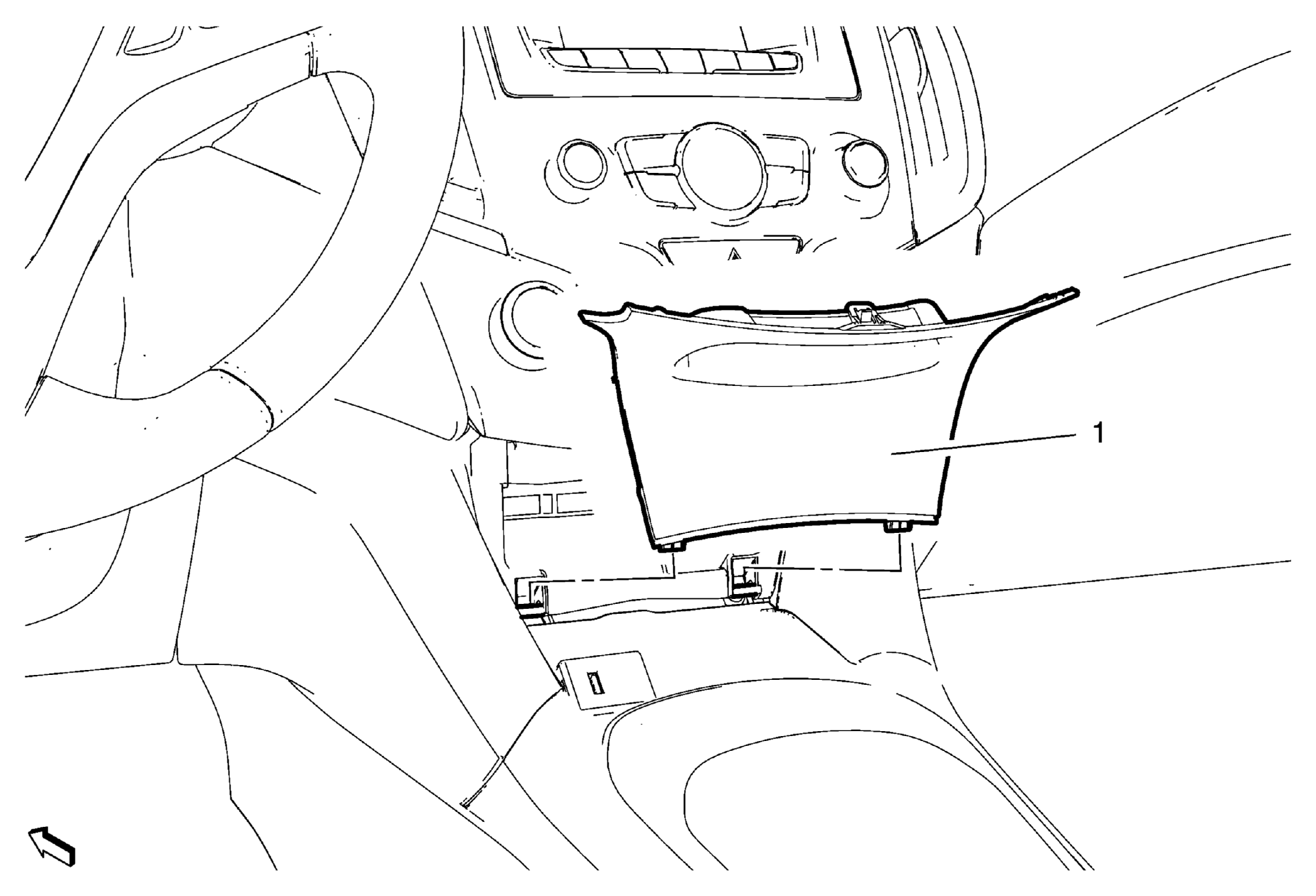

    19. Fig 10: Instrument Panel Fuse Block Access Hole Cover
    GM3642910Courtesy of GENERAL MOTORS COMPANY
  19. Install Instrument Panel Fuse Block Access Hole Cover (1)
