Front Intake Air Duct Replacement

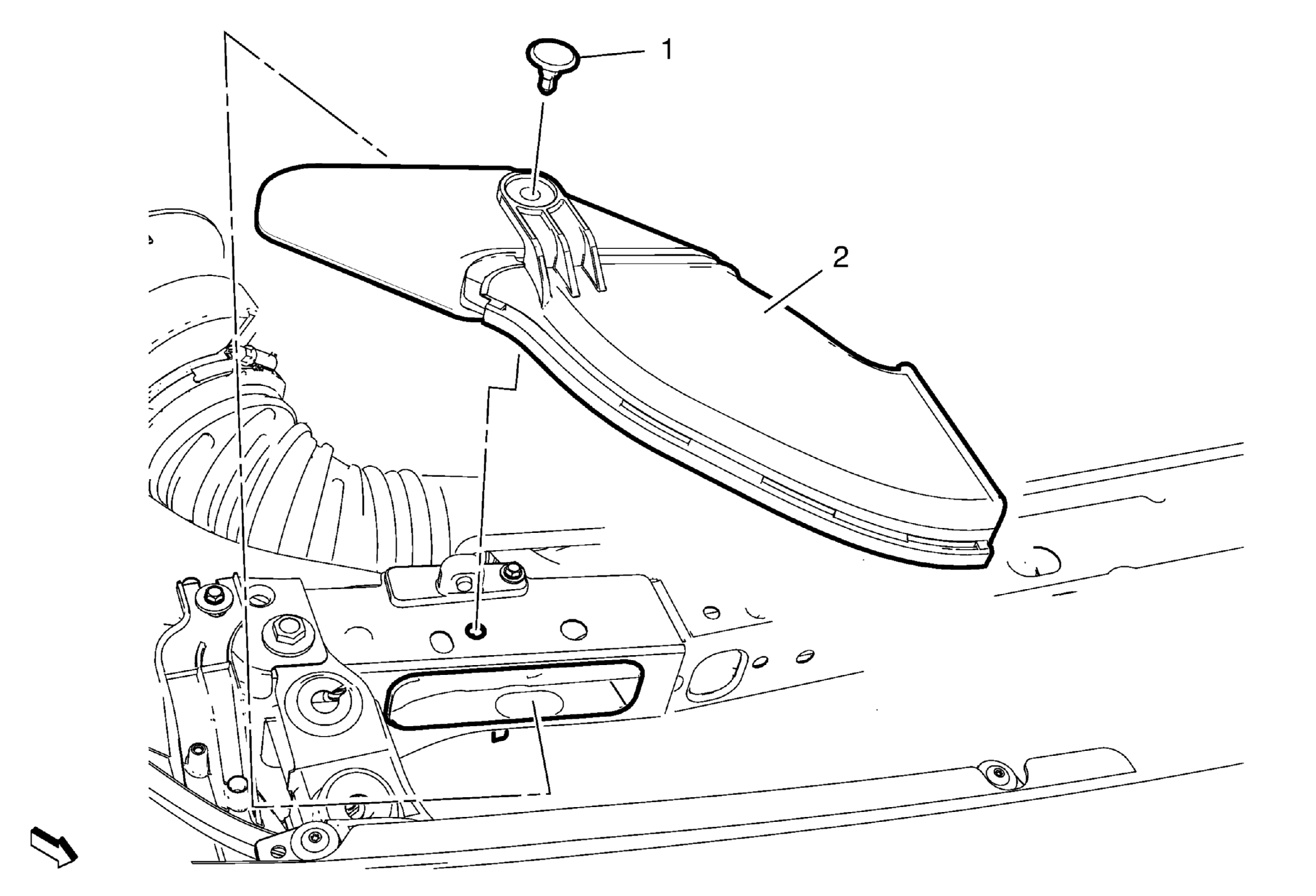

Fig 1: Front Intake Air Duct
GM3682403Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Radiator Air Upper Baffle and Deflector Replacement
1 Front Intake Air Duct Retainer
2 Front Intake Air Duct
