Accessory Power Receptacle Replacement

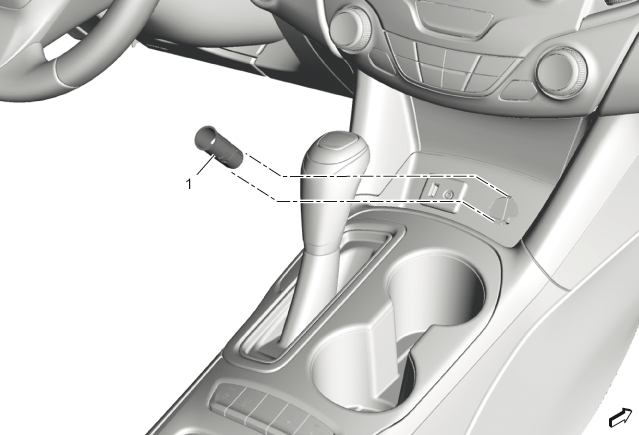

Fig 1: Accessory Power Receptacle
GM4284281Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Accessory Power Receptacle Retainer. Refer to Accessory Power Receptacle Retainer Replacement
1 Accessory Power Receptacle
Procedure
Disconnect the electrical connector.
Special Tools
BO-48871  Cigarette Lighter Socket Remover
Equivalent regional tools: Special Tools
