Engine Compartment Components

Engine Compartment Components

Items
1: M79 Windshield Wiper Motor Module
2: X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1X50A Fuse Block - Underhood X11X50A Fuse Block - Underhood X12X50A Fuse Block - Underhood X2X50A Fuse Block - Underhood X3X50A Fuse Block - Underhood X6X50A Fuse Block - Underhood X8
3: K17 Electronic Brake Control Module K17 Electronic Brake Control Module
4: B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch
5: B19B Brake Booster Vacuum Sensor B19B Brake Booster Vacuum Sensor

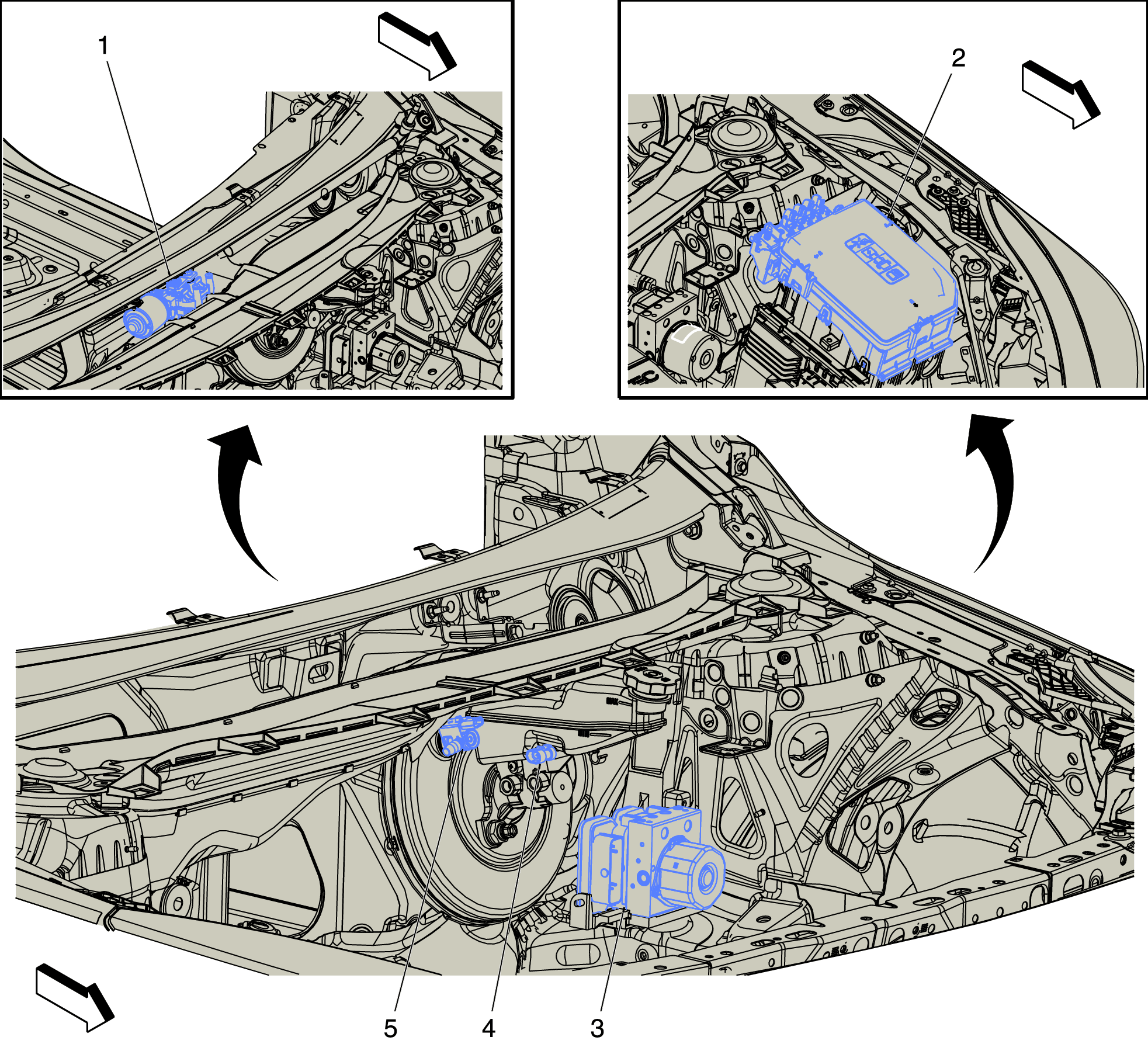

Fig 1: Engine Compartment Components
GM3752664Courtesy of GENERAL MOTORS COMPANY
