Right Front Engine Compartment Components (2 of 2)

Right Front Engine Compartment Components (2 of 2)

Items
1: E13RA Headlamp Assembly - Right
2: B5RF Wheel Speed Sensor - Right Front B5RF Wheel Speed Sensor - Right Front
3: B59R Front Impact Sensor - Right B59R Front Impact Sensor - Right
4: B203 Radiator Coolant Temperature Sensor

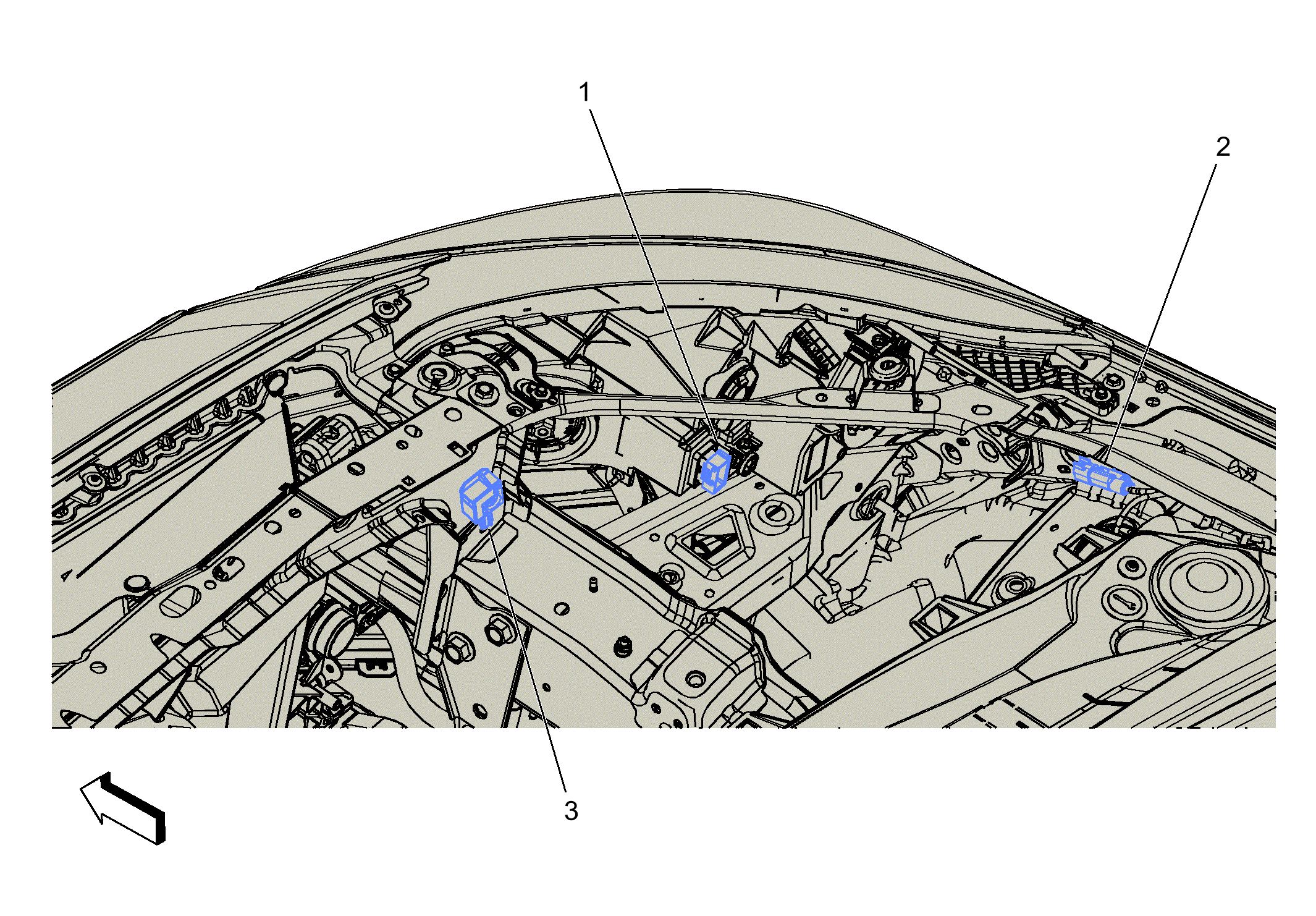

Fig 1: Right Front Engine Compartment Components (2 of 2)
GM3752677Courtesy of GENERAL MOTORS COMPANY
