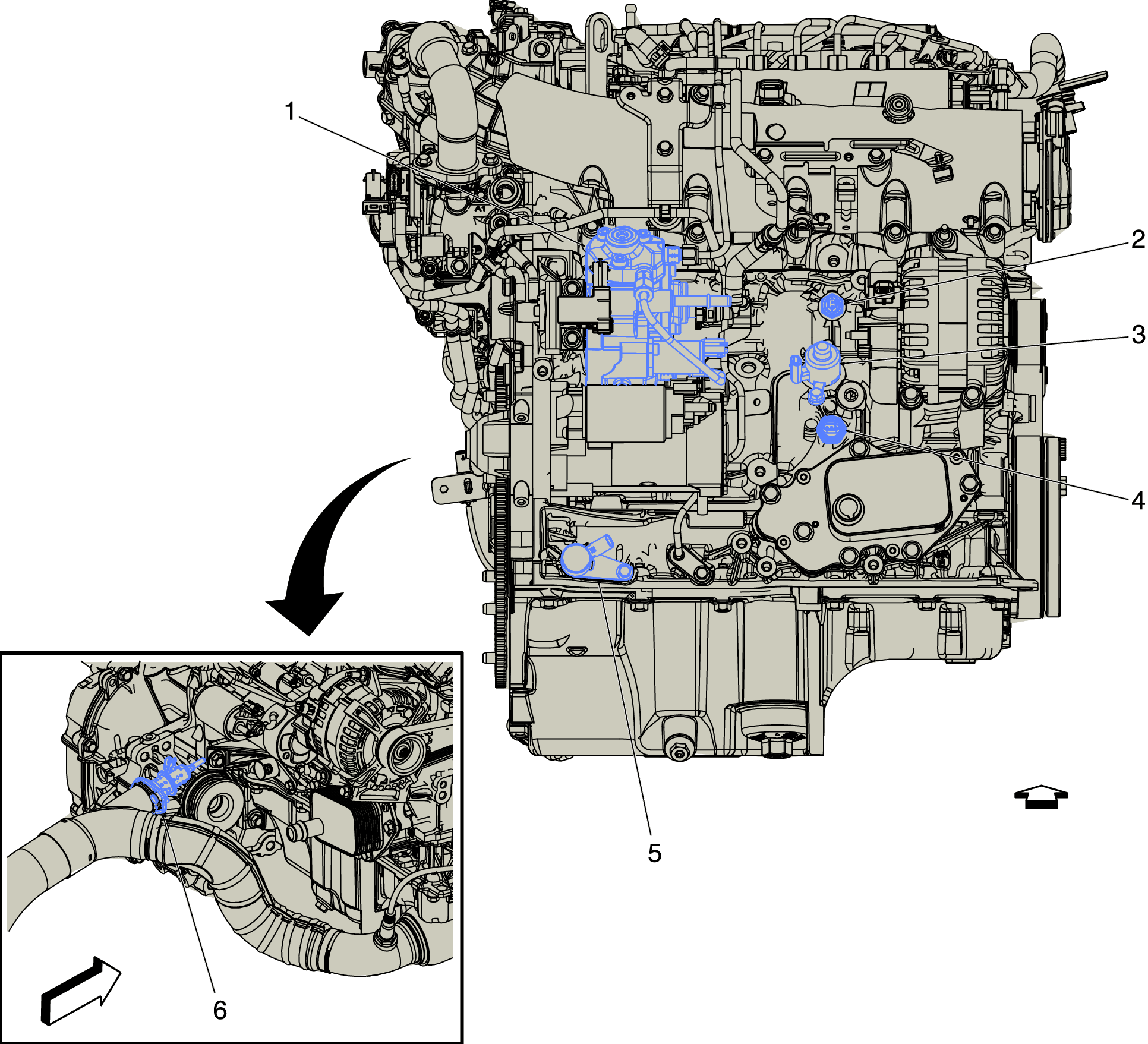

Rear of Engine Components (LH7)
Rear of Engine Components (LH7)
| Items |
|---|
| 1: Q18 Fuel Pressure Regulator |
| 2: B267 Piston Cooling Oil Pressure Switch (LH7) B267 Piston Cooling Oil Pressure Switch |
| 3: Q45 Piston Cooling Oil Jet Solenoid Valve (LH7) Q45 Piston Cooling Oil Jet Solenoid Valve |
| 4: B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor (LH7) |
| 5: Q44 Engine Oil Pressure Control Solenoid Valve Q44 Engine Oil Pressure Control Solenoid Valve |
| 6: Q61 Reductant Injector (LH7) Q61 Reductant Injector |
