Installation Procedure

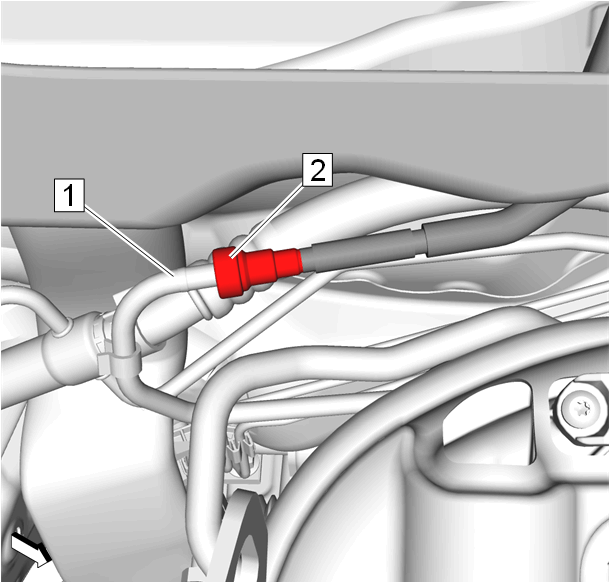

    Fig 1: Fuel Feed Front Pipe
    GM4727304Courtesy of GENERAL MOTORS COMPANY
  1. Remove the special tool: EN-6015  plugs
  2. Connect Fuel Feed Front Pipe (2)@Fuel Feed Pipe(1) Metal Collar Quick Connect Fitting Service
    3. Fig 2: Fuel Feed Front Pipe
    GM4230926Courtesy of GENERAL MOTORS COMPANY
  3. Remove the special tool: EN-6015  plugs
  4. Connect Fuel Feed Front Pipe (1)@Fuel Pump(2) Metal Collar Quick Connect Fitting Service
    5. Fig 3: Fuel Pump Insulator
    GM3824664Courtesy of GENERAL MOTORS COMPANY
  5. Install Fuel Pump Insulator (3)@Fuel Pump(1)
  6. Connect the electrical connector.(2)
    7. Fig 4: Engine Wiring Harness Bracket Bolts
    GM4675039Courtesy of GENERAL MOTORS COMPANY
  7. Install Engine Wiring Harness Bracket (2)
    8. CAUTION:

    Fastener Caution

  8. Install Engine Wiring Harness Bracket Bolt (1) and tighten 9 N.m (80 lb in)
  9. Install Charge Air Cooler Outlet Air Hose Charge Air Cooler Outlet Air Hose Replacement
  10. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
  11. Start the engine and check for fuel leaks.
