Fuel Rail Components (LE2/LEX)

Fuel Rail Components (LE2/LEX)

Items
1: Q17A Fuel Injector 1
2: B47B Fuel Rail Pressure Sensor B310 Fuel Pressure/Temperature Sensor (LE2/LEX)
3: Q17D Fuel Injector 4
4: Q17C Fuel Injector 3
5: Q17B Fuel Injector 2

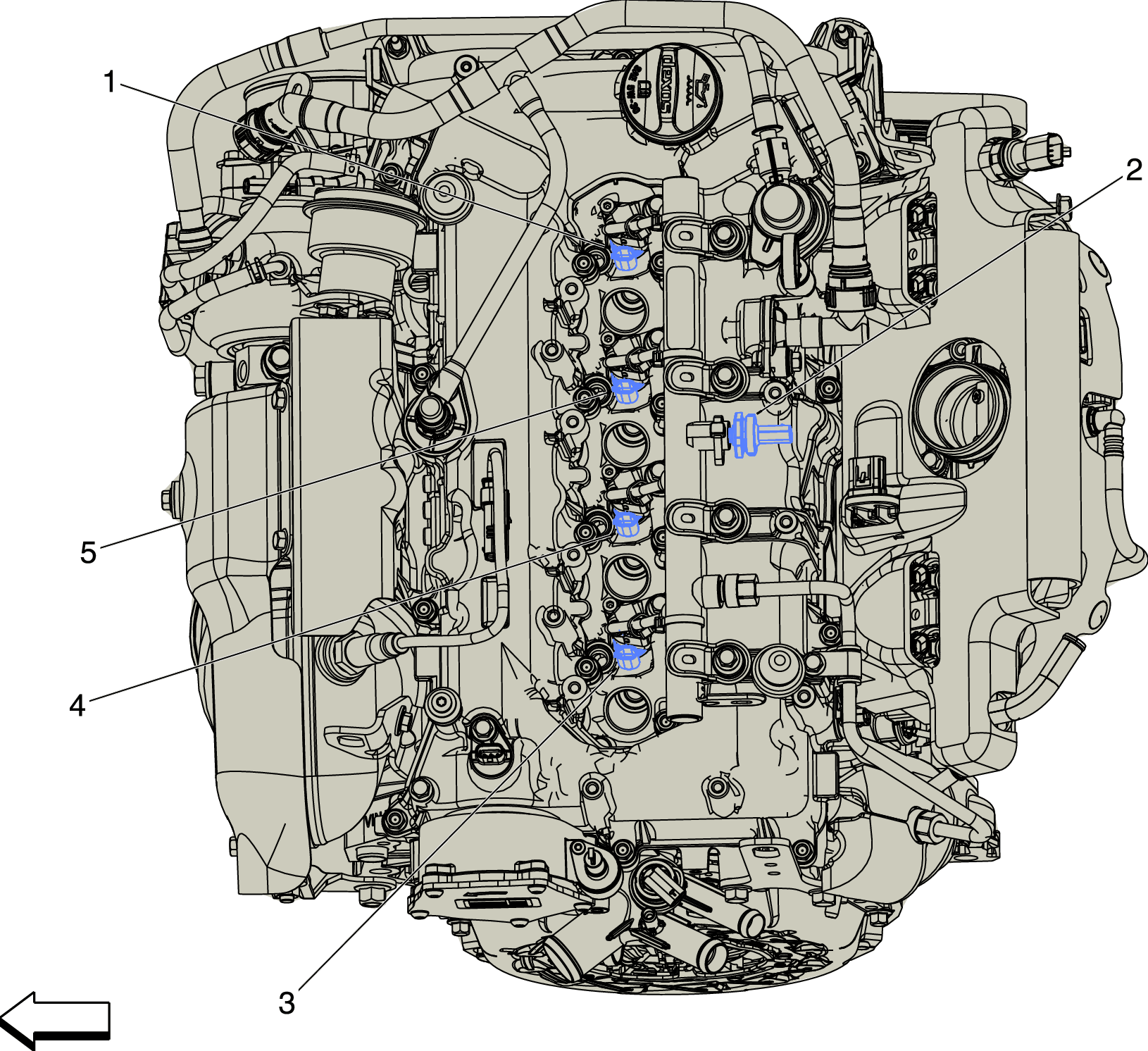

Fig 1: Fuel Rail Components (LE2/LEX)
GM3752668Courtesy of GENERAL MOTORS COMPANY
