Accelerator Pedal Position Sensor Replacement

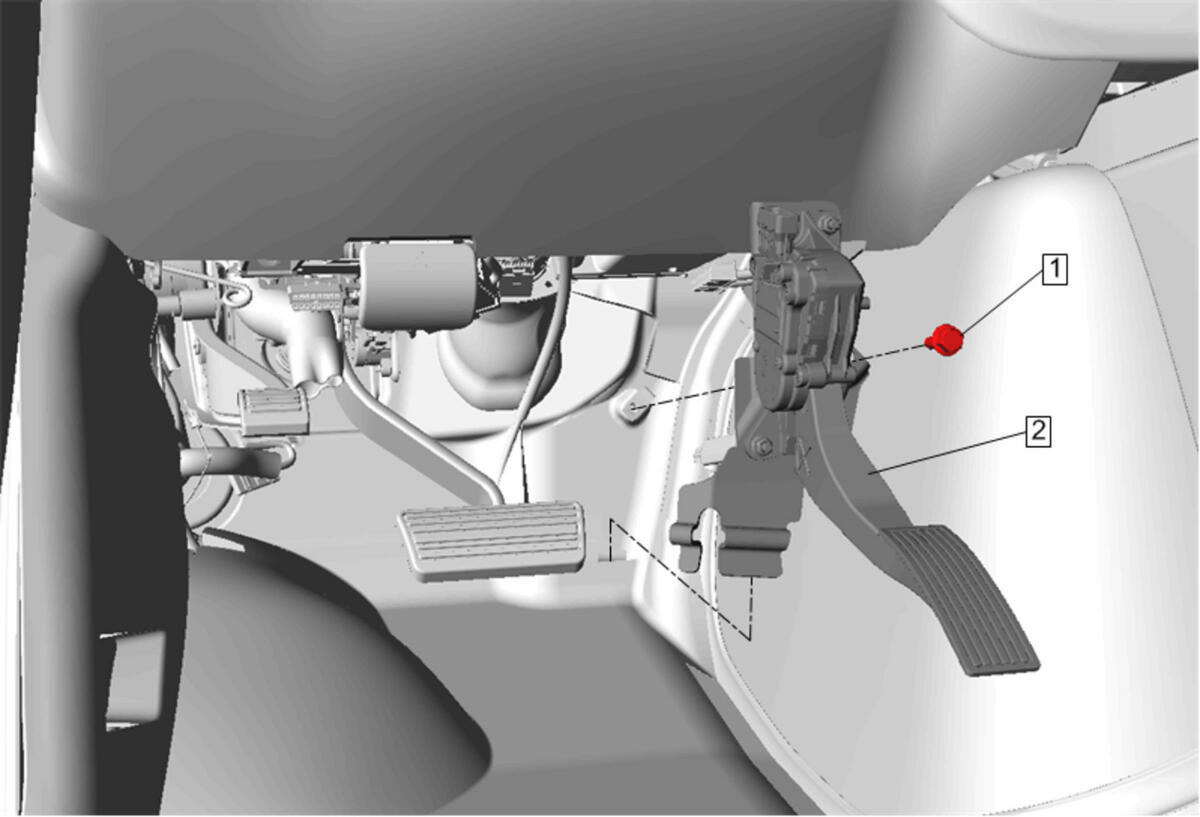

Fig 1: APP Sensor
GM4606650Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Accelerator Pedal Position Sensor Bolt
CAUTION:

Refer to Fastener Caution .


tighten
33 N.m. (24 lb ft)
2 Accelerator Pedal Position Sensor
Procedure
Disconnect the electrical connector.
